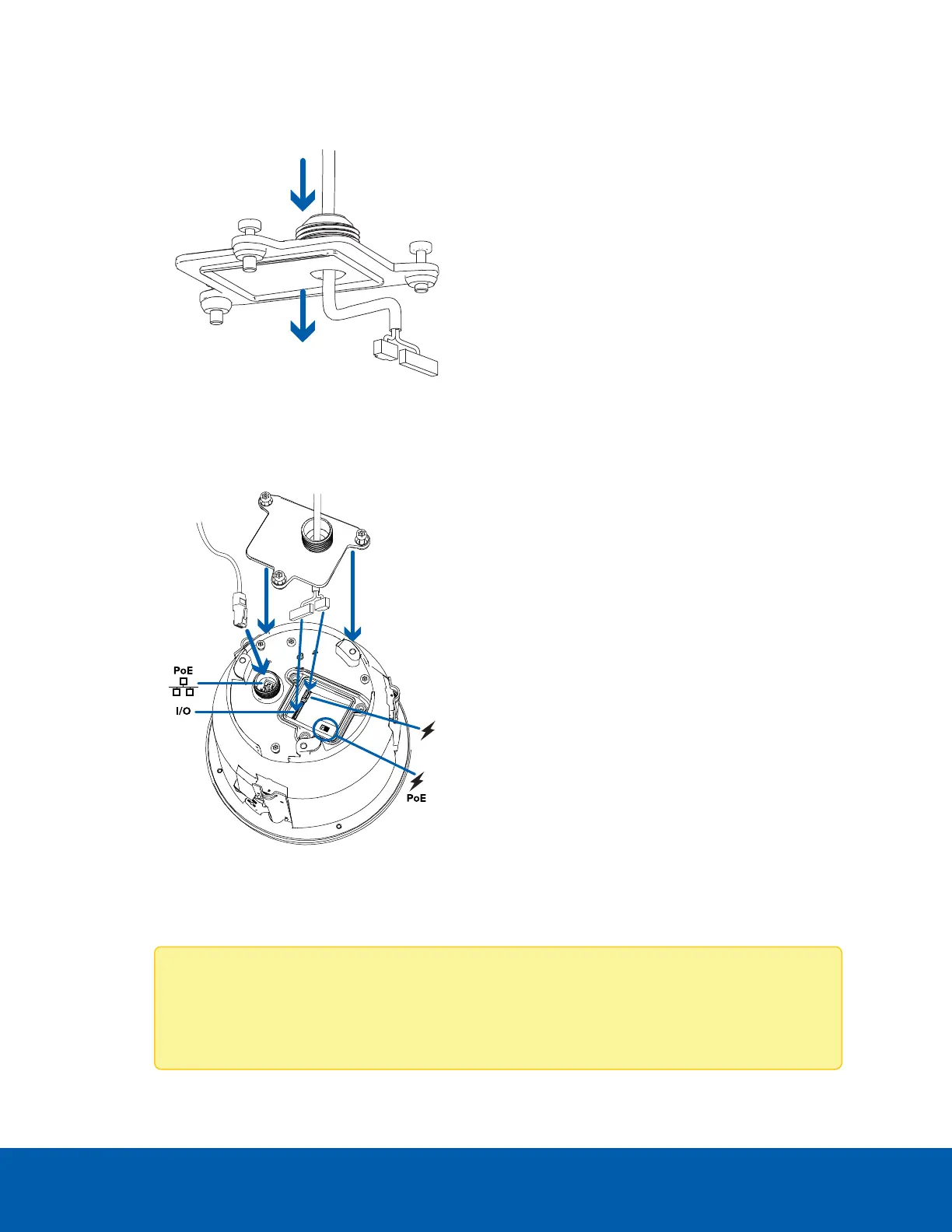

4. Feed the I/O connector cable through the cable connector cover.

5. Connect power and I/O to the camera, then tighten the I/O cover.

6. Connect a network cable to the Ethernet port (RJ-45 connector).

The Link LED indicator will turn on once a network link has been established.

Note: If you need to remove the RJ45 connector from the camera to check a network issue,

use a small screwdriver to depress locking tab and release the RJ45 plug before pulling

upwards.

Connecting Cables 13
