1. Place the camera on a flat surface with the dome facing up.

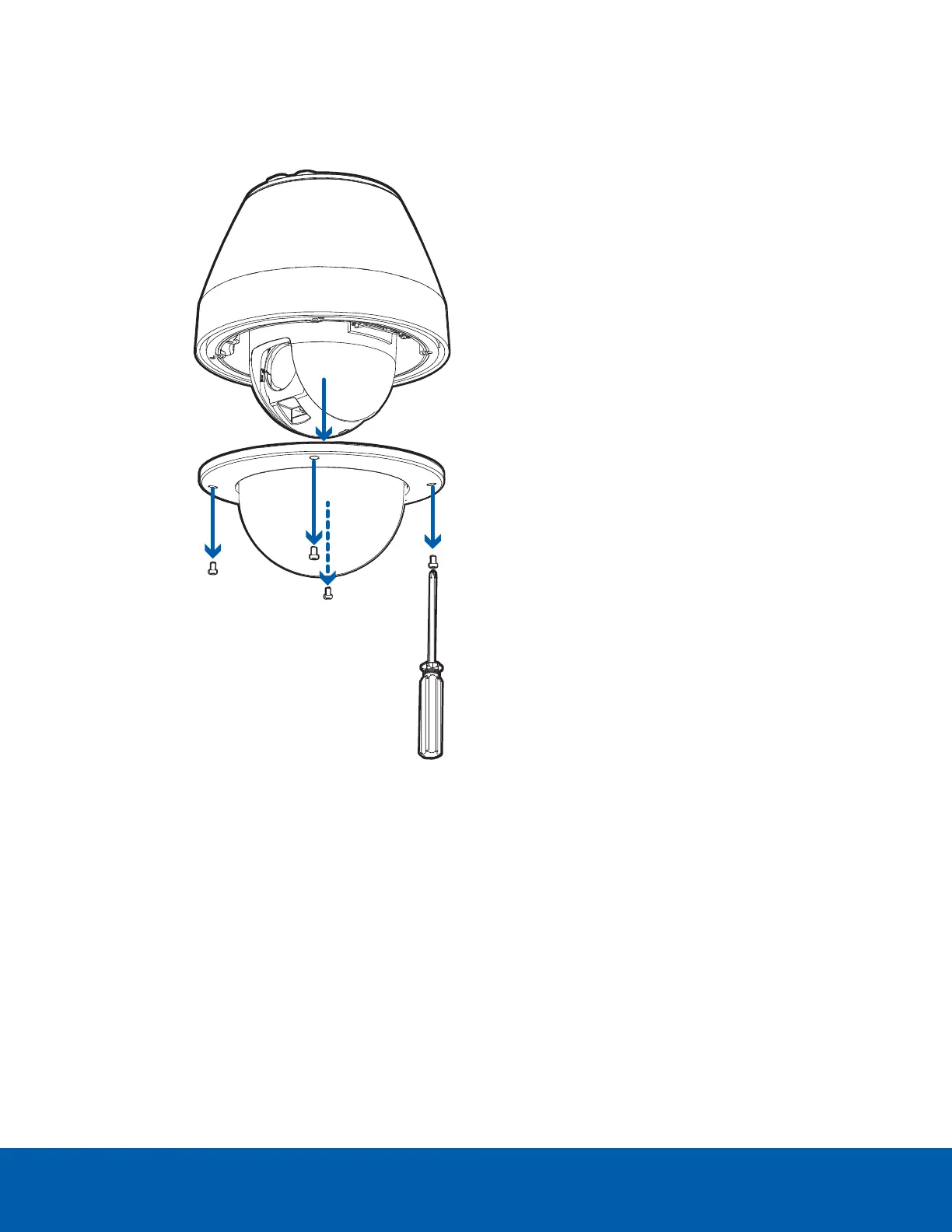

2. Use the T20 star key to loosen the 4 tamper resistant screws and then remove the dome cover.
3. Remove the protective foam material inside the dome cover. Remove the plastic protective film
from the inside of the dome cover.
4. If you are planning to use onboard storage, insert an SD card into one of the SD card slots on the PTZ
camera. For more information, see (Optional) Configuring Onboard Storage on page31.
For the location of the SD card slots, see Overview on page1.
5. Align the notches on the base with the notch opening on the dome cover. The dome cover should
be flush against the camera base.
Preparing the Camera for Installation 17
