Hooks to attach the camera to the junction box while connecting the required cables.
5.
Power and I/O cables
Cables for connecting the camera to I/O devices.
Cables for connecting the camera to auxiliary power and I/O devices. For more information, see
Connecting to External Devices on page21.

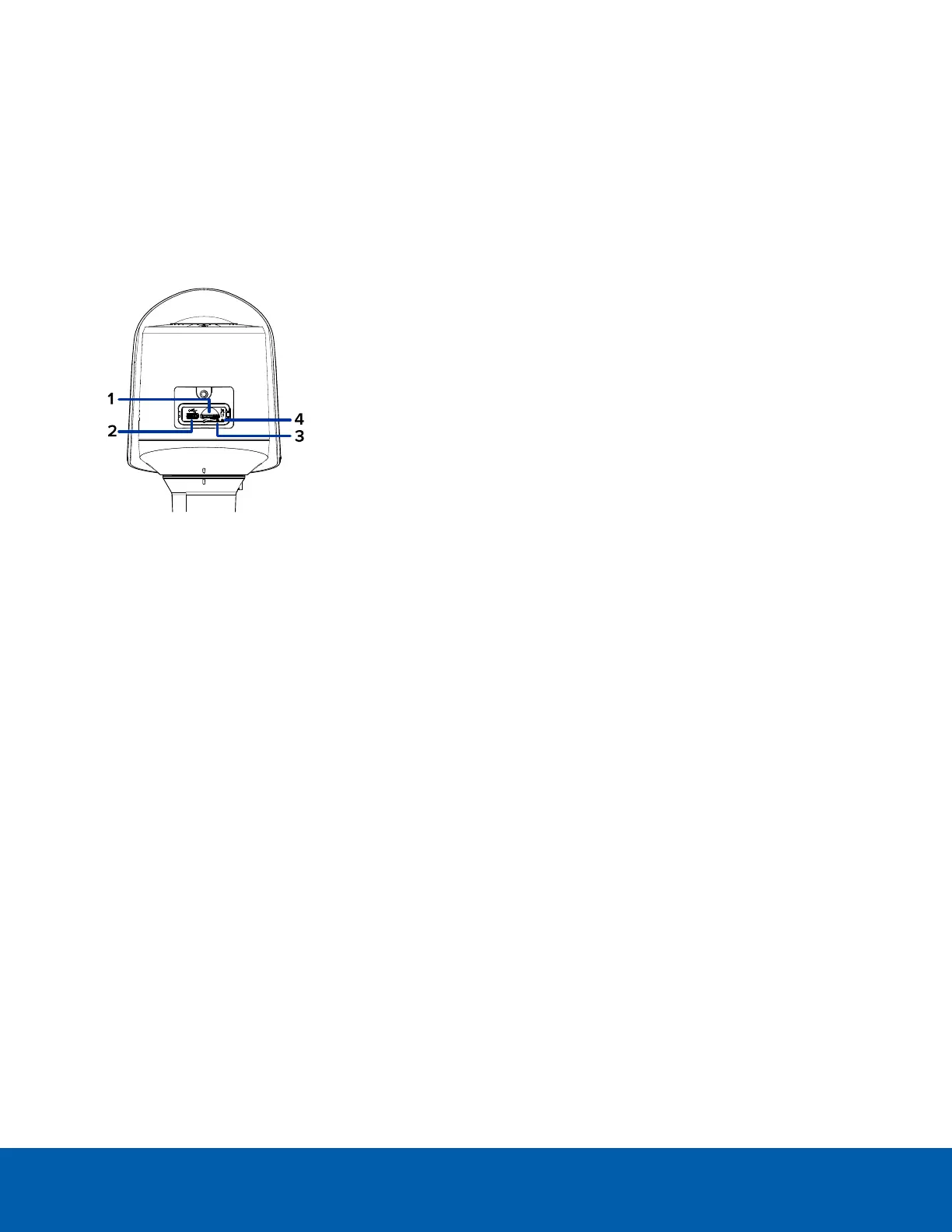

Configuration Panel View
1.
microSD card slot
Accepts a microSD card for onboard storage. For more information, see (Optional) Configuring
microSD Card Storage on page19.
2.
Micro USB port
Accepts a micro USB to USB adapter. Only required when using the USB Wi-Fi Adapter.
3.
Link LED indicator
Amber LED indicates if there is an active connection in the Ethernet port.
4.
Connection status LED indicator
Green LED provides information about device operation. For more information, see Connection Status
LED Indicator on page22.
Configuration Panel View 9
