➤ Horn, channel 6 (H4), 2-pin connector
H4/1
ORANGE/BLACK (-) AUX 3 OUTPUT
H4/2
BROWN (-) 200 mA HORN
Wire connection guides
➤ Primary harness (H1), 12-pin connector
H1/1

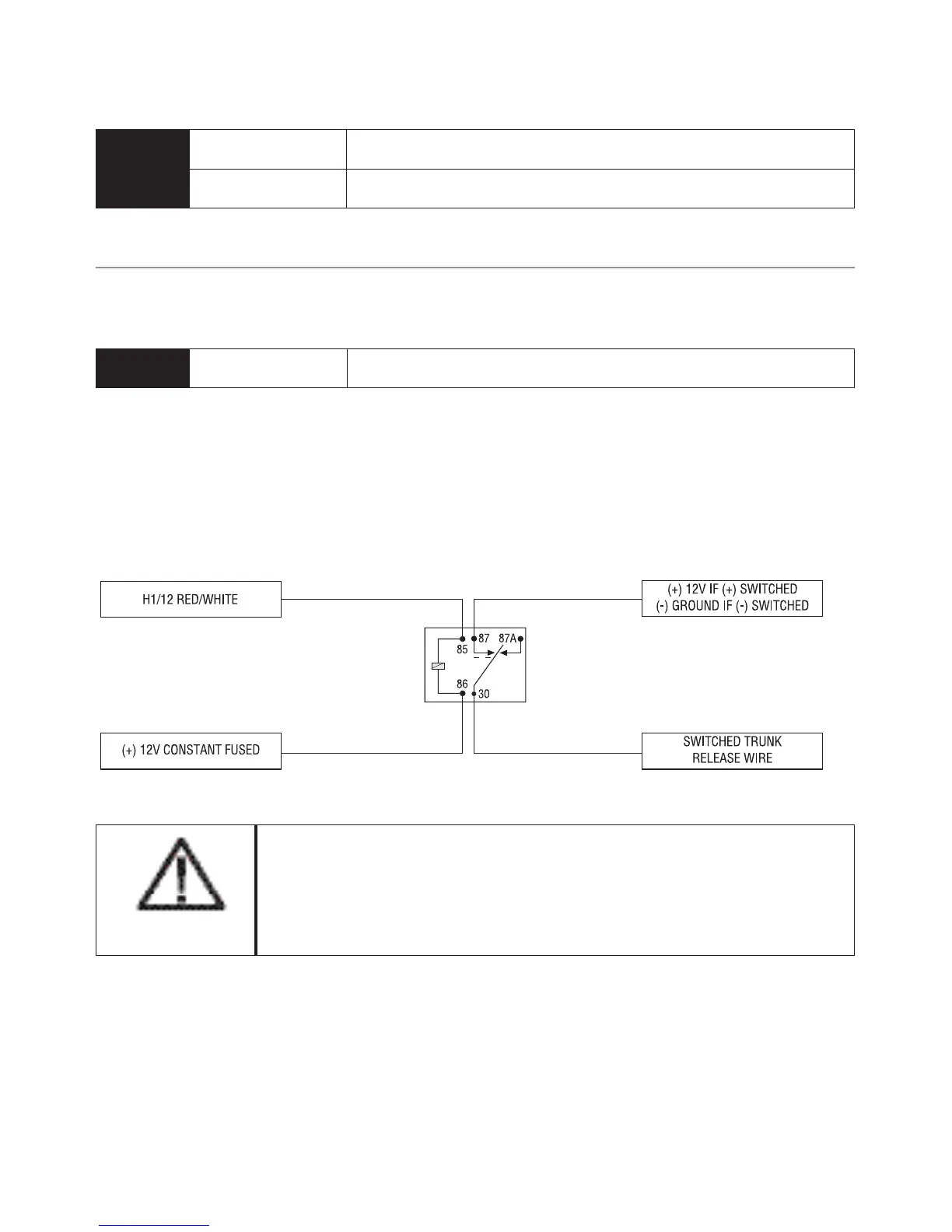

RED/WHITE (-) 200mA TRUNK RELEASE, 200 mA (-) output
When the system receives the code controlling trunk release output for longer
than 1.5 seconds, the red/white wire will supply output as long as the transmis-
sion continues. This is typically used to operate a trunk/hatch release or other
relay-driven function.
Warning! Never use this wire to drive anything but
a relay or a low-current input, supplied output is only
200mA. Connecting directly to a solenoid, motor, or
other high-current device will cause the module to fail.
