H2/6

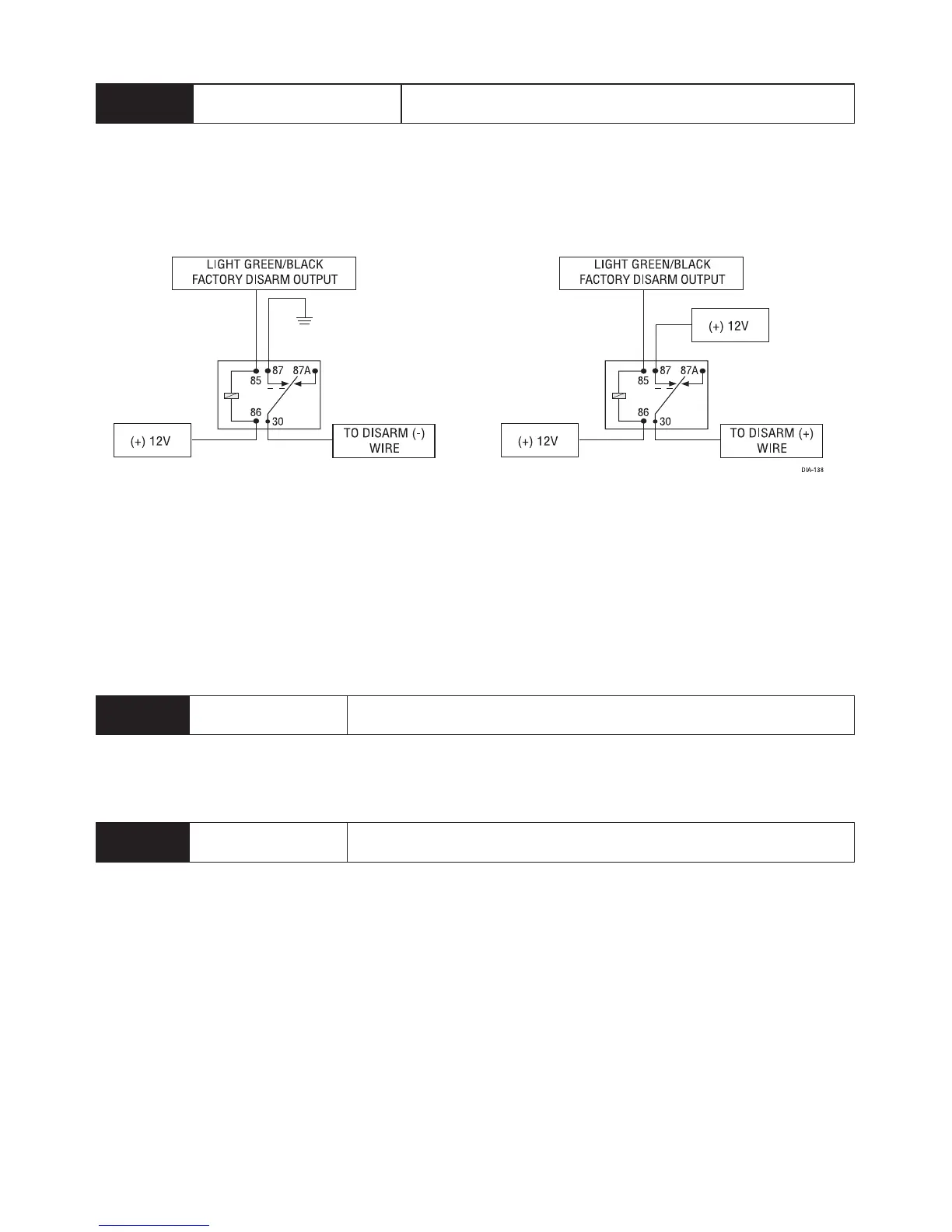

LIGHT GREEN/BLACK FACTORY DISARM OUTPUT
Relay for Negative (-)
Disarm Wire
Relay for Positive (+)
Disarm Wire
➤ Heavy Gauge, relay satellite
The heavy gauge wires coming from the large pin connector are used to ener-
gize the high current circuits in the vehicle. It is crucial to ensure that these con-
nections are capable of handling the current demands. For this reason, Scotch-
Locks, T-taps and other such connectors are strongly discouraged.
H/1
PURPLE (+) STARTER OUTPUT
After cutting the starter wire connect the PURPLE wire to the end going to the
starter motor.
H/2
GREEN STARTER INPUT
After cutting the starter wire connect the GREEN wire to the end going to the
key side of the ignition.
