AVMATRIX PVS0615 User Manual

Video Record
Basic Specification
Record Video Source
PGM
Record Storage
SD Card (class 10)
SD Card Format
Max 64GB (file system format exFAT/ FAT32)
Record Video Format
H.264 (mp4)
Record Video Resolution
1080p 60/50/30/25/24hz, 1080i 60/50hz

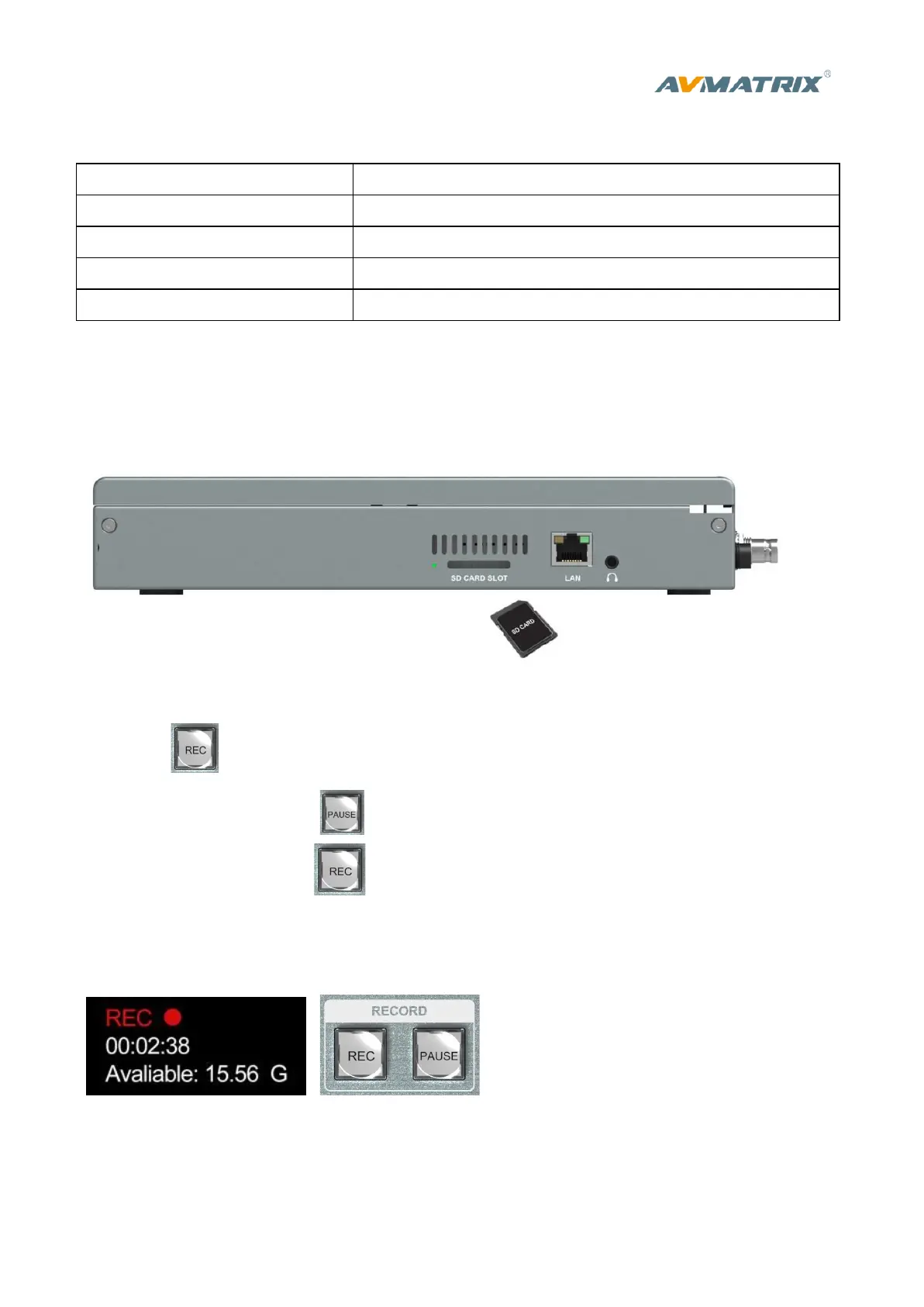

SD Card Install and Uninstall
1) Install SD card:
First, format SD card to exFAT/ FAT32 file system format. Install Plug and press the SD card into the slot
from the side of video switcher. Wait 3 sec, the LED indicator beside it will turn on.
2) Uninstall SD card:
Press the card to take it out. Use a card reader to play or copy the video files in a computer.
Recording Control
Press REC button start recording. Meantime, the key indicator turns on.
During recording, press PAUSE button the recording pause, and press PAUSE button again
recording continue. Press REC button, recording stops and save the video file to SD card.
Record video resolution is same to SDI PGM output resolution. (Reference part 4.3)
The recording status shown beside the menu, including information of REC mark, recording time,
available storage. See below image:
Note:
1. The record file will be saved to SD card only after pressing the REC button to stop recording.
Otherwise, the record file might be corruption.
