AVMATRIX PVS0615 - Control Panel Operation; Panel Layout and Button Functions

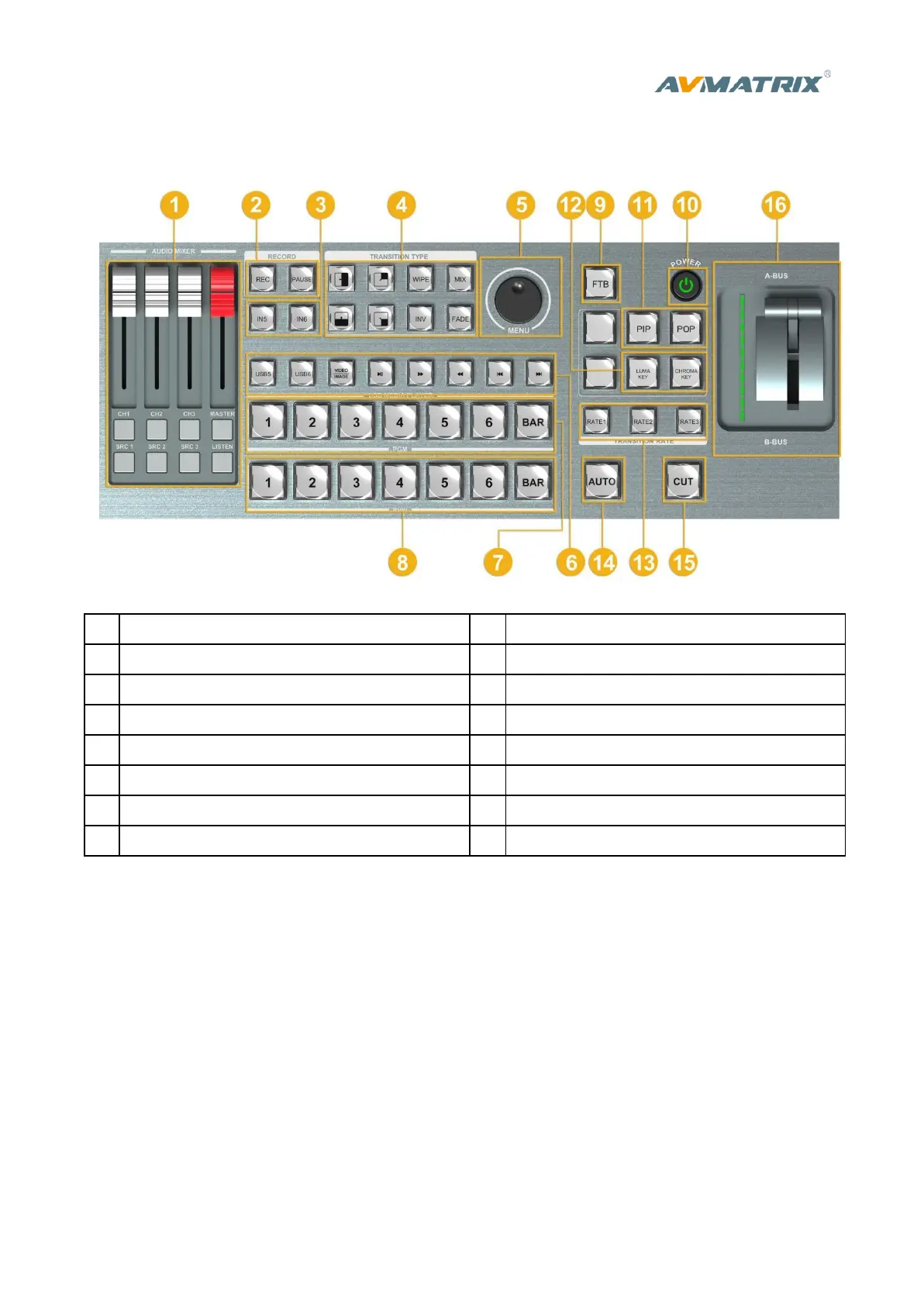

Control Panel
Description
1
Audio Mixer Control
9
FTB
2
Record Control
10
Power Switch
3
Video Source of Channel 5 and Channel 6
11
PIP, POP
4
MIX, WIPE, FADE, Inverse Transition Effect
12
Luma Key, Chroma Key
5
Menu Control
13
Transition Speed
6
USB Media Control
14
AUTO
7
Program Row
15
CUT
8
Preview Row
16
T-bar Manual Transition
