AVMATRIX VS0601U User Manual

11

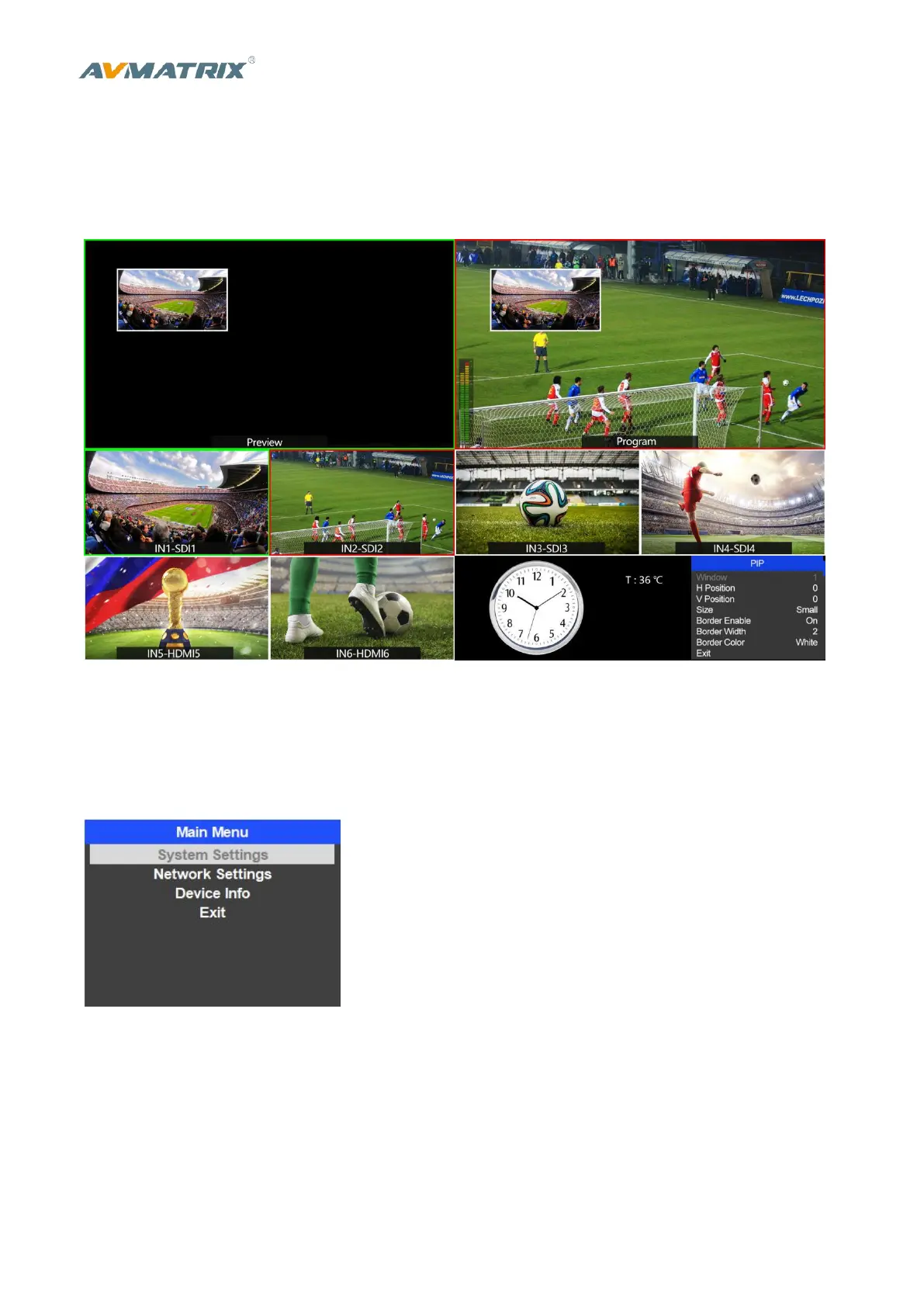

6.3. PIP Mode
When press PIP, there will be a small image display on the top left corner of PVW window as following
image. And the menu will enter an interface as below image. The window size, position and border of PIP
can be set from menu.
6.4. Main Menu Setting
When STATUS menu is not selected, press the MENU button to enter main menu directly. In case one of
the items is selected (see below), rotate the MENU button rotate anticlockwise to exit the choice, then
press the MENU button to enter main menu.
6.4.1. System Settings
Entering system settings from the menu to switch the system language between English and Chinese.
Entering system settings from the menu to switch the real-time clock shown in Analog or Digital.

AVMATRIX VS0601U Specifications

General

Brand	AVMATRIX
Model	VS0601U
Category	Switch
Language	English
