AVMATRIX VS0601U User Manual

2
1. BRIEF INTRODUCTION
1.1. Overview

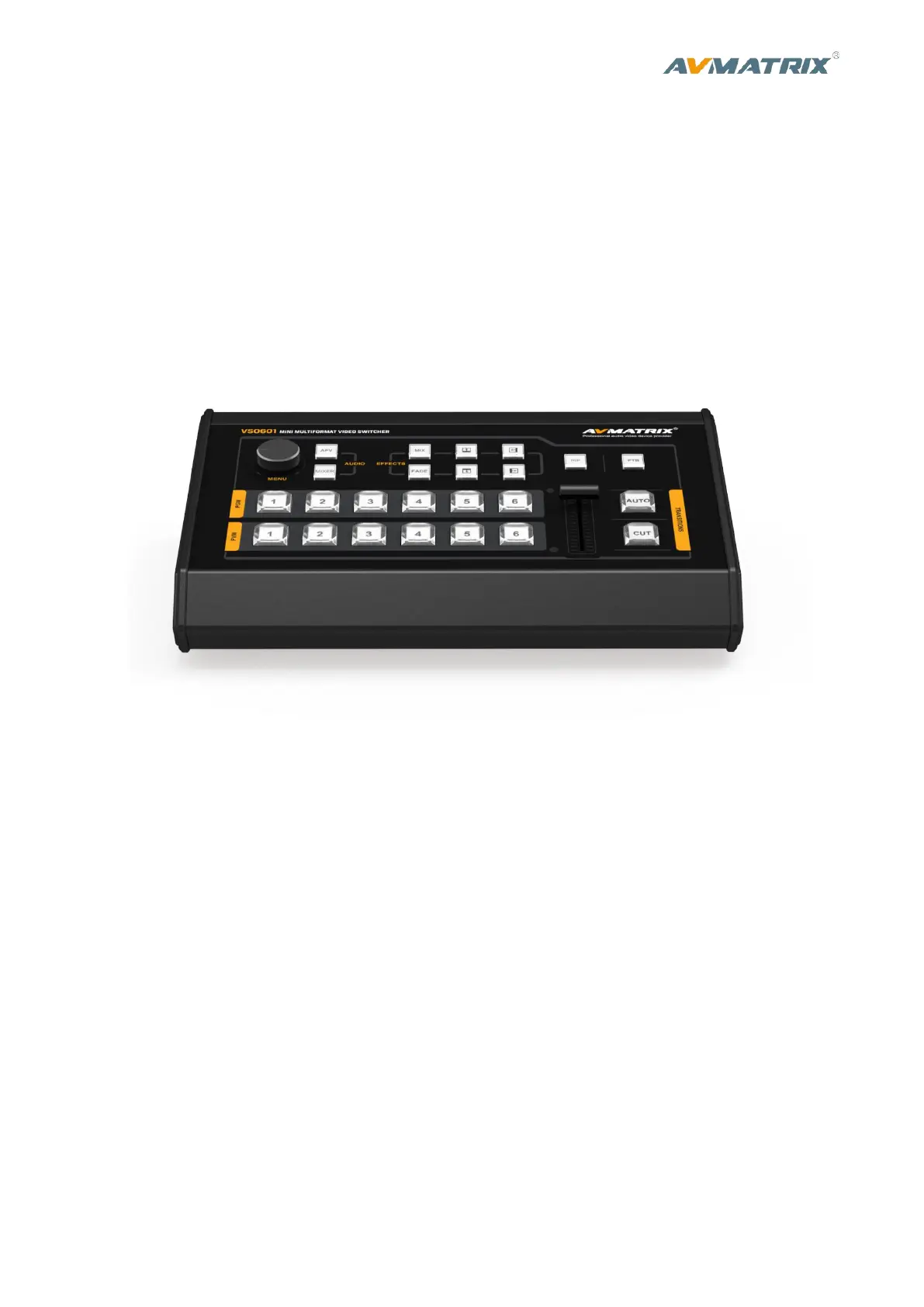

VS0601U is a miniature design metal housing 6-channel SDI/HDMI multi-format video switcher that
allows video switching, audio mixing, and different transition effects. Inputs signal is auto-detected while
for PGM output can be scaled, which can be compatible with more different equipment for more flexible
application. The unit also allows stream performances and presentations easily through a computer’s
USB3.0 port. The cost-effective video switcher will be your perfect choice for various events production
applications etc.
1.2. Main Features

6 channel inputs:4×SDI & 2×HDMI inputs

1×USB type-C output, 2×SDI & 1×HDMI PGM outputs, 1×SDI & 1×HDMI multiview outputs

Uncompressed capture for live streaming, comply with UVC & UAC
 1×SDI AUX output, can be selected as PGM or PVW

Multi-format support, input format auto-detected and PGM outputs selectable

T-Bar/ AUTO/ CUT transitions
 Mix/ Fade/ Wipe transition effects
 PIP mode size and position adjustable

Support audio MIXING and AFV mode
 GPIO for Tally, FTB for emergency

AVMATRIX VS0601U Specifications

General

Brand	AVMATRIX
Model	VS0601U
Category	Switch
Language	English
