10
Connection

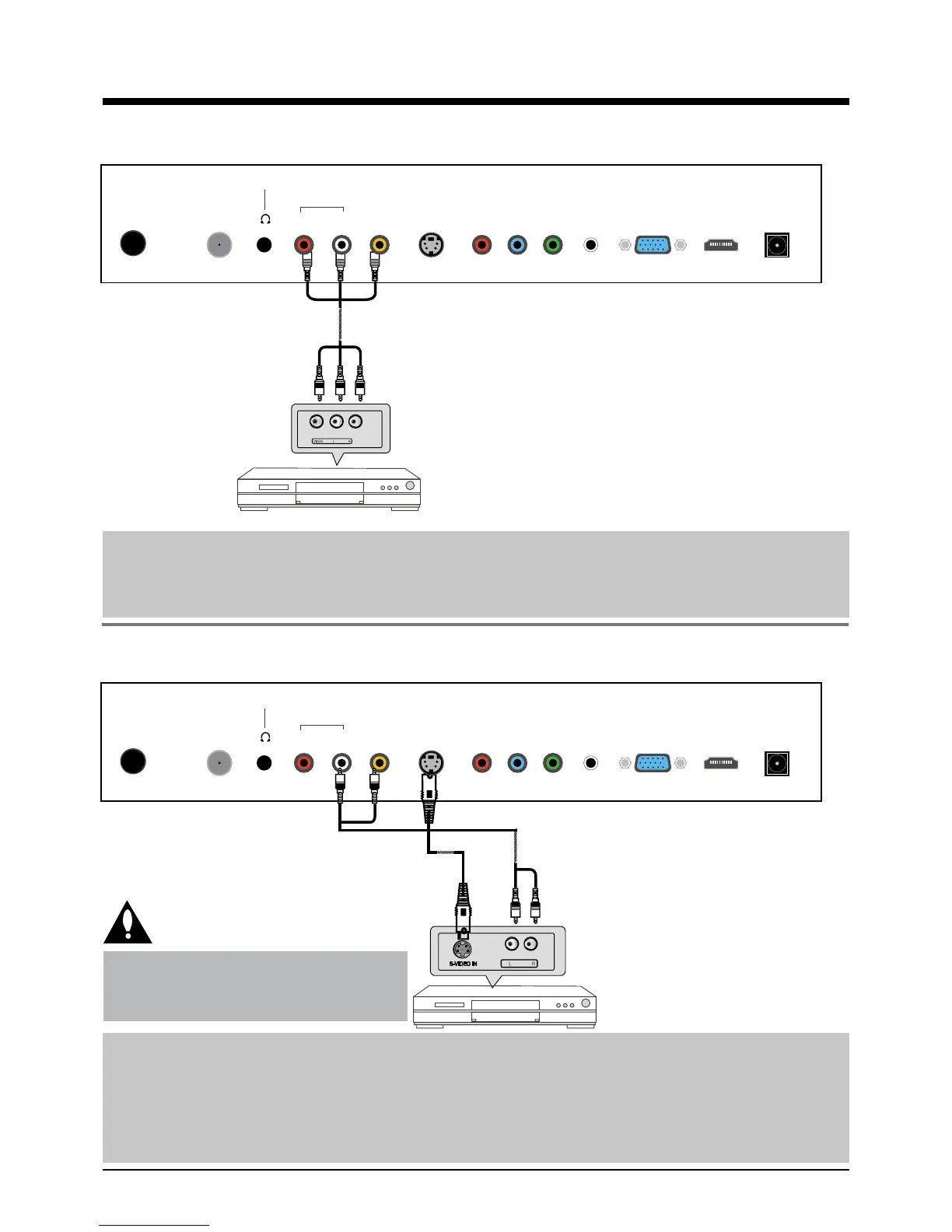

AV Input Connection
S-VIDEO Connection
Note: All cables shown are not included with the TV.
Note: All cables shown are not included with the TV.
- Connect the VIDEO and AUDIO output jacks on the DVD or VCR to the AV IN jacks on the TV
set with a RCA cable.
- Match the jacks colors: Video=yellow, Audio left=White, Audio right=red.
- Turn on the DVD/VCR, and select “AV” in the input source menu.
- Connect the S-VIDEO output jack on the DVD or VCR to the S-Video input jack on the TV set
with a S-Video cable. The picture quality is improved compared to a regular VCR to the video
input.
- Connect the audio output jacks on the DVD or VCR to the audio input jacks on the set with a
RCA cable.
- Turn on the DVD/VCR, and select “S-VIDEO” in the input source menu.
RCA Video Cable
S-Video Cable
RCA Audio Cable
Audio Cable
DVD or VCR
DVD or VCR
Headphone out
Do not connect both VIDEO and
S-VIDEO at the same time. They will
interfere with each other.
RF1 R L VIDEO S-VIDEO Pr Pb Y PC-IN VGA HDMI POWER
Headphone out
Audio in
RF2
RF1 R L VIDEO S-VIDEO Pr Pb Y PC-IN VGA HDMI POWER
Headphone out
Audio in
RF2
