Step 4
Remove the protective backing from the underside of the antenna and feed
the coaxial cables through the panel. Position the antenna over the hole
ensuring correct secure location and stick the antenna to the panel by
applying firm downward pressure. The antenna can be fixed in any orientation.
3
Step 5
If required an extension bolt is supplied which can be fixed over the existing
bolt enabling the antenna to be fitted with various panel depths.
Step 6

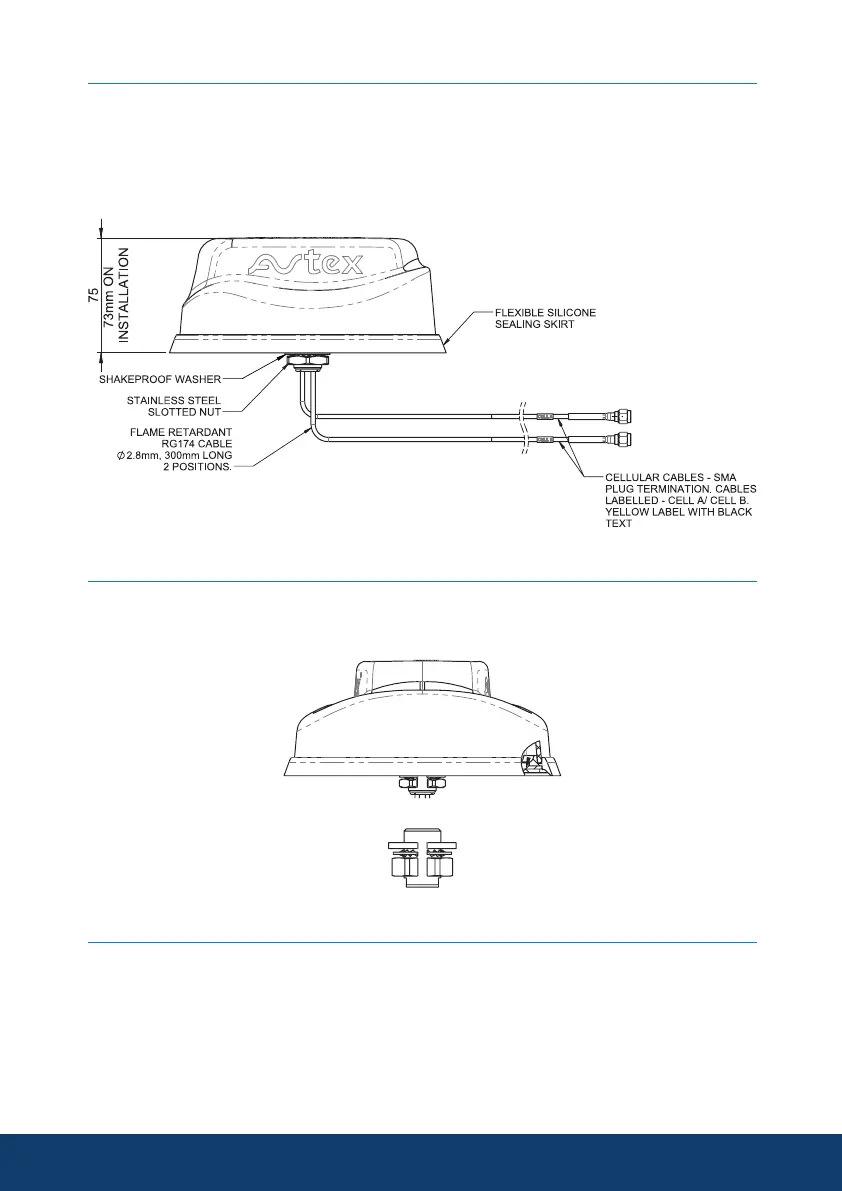

A slotted/split nut is provided in order to simplify fitting it over the coaxial
cables. When fitting the nut, it is important to ensure that the cables are
held centrally whilst the nut is correctly started on the threads. The nut should
fit freely by hand and only require a final tighten with a spanner. Assemble the
nut and washer from the underside and tighten to a recommended torque of
5Nm (3.6 ft/lbs). Ensure that the sealing boot is properly compressed.
