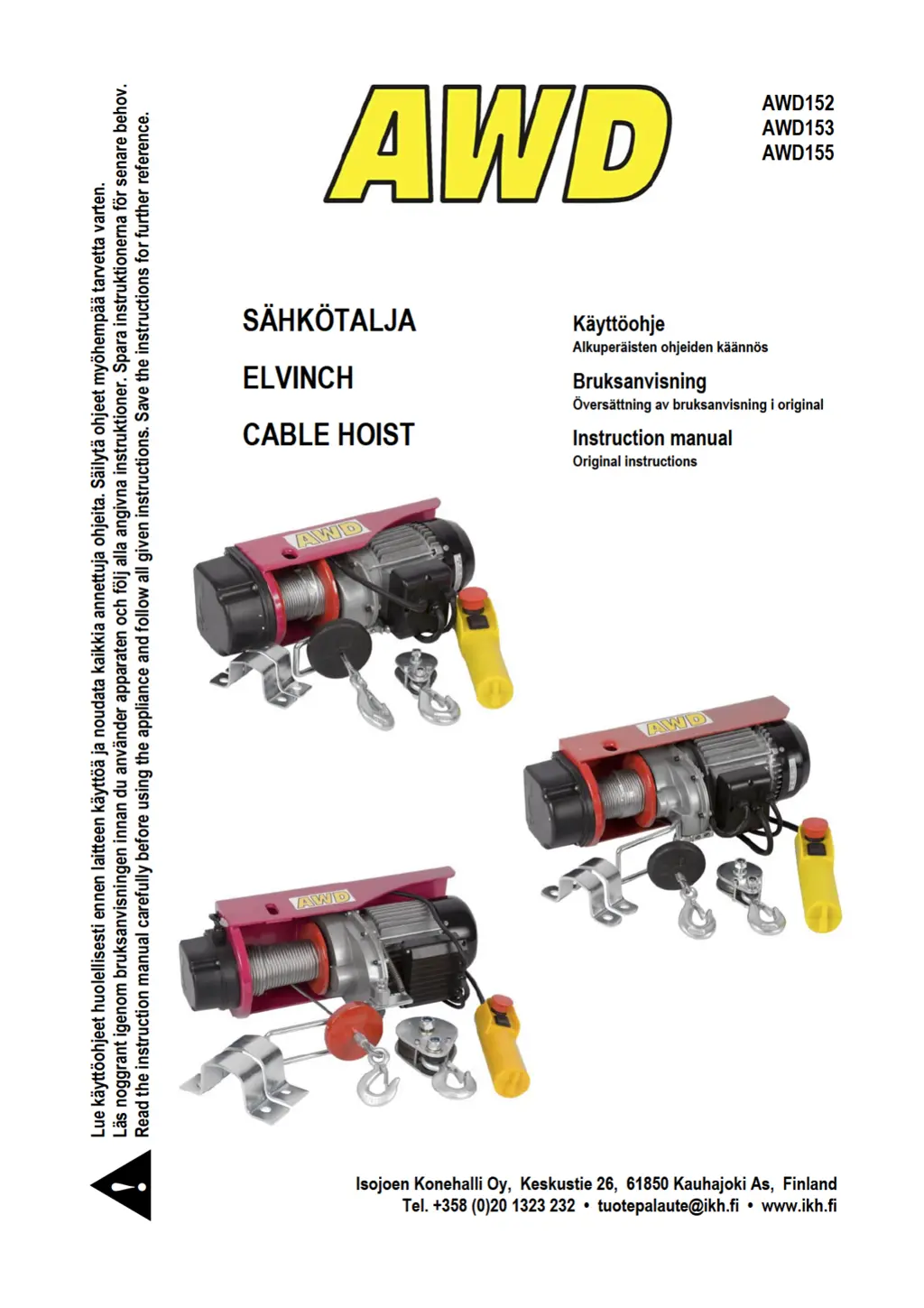

AWD AWD152 - User Manual

Questions and Answers

J
John MartinAug 5, 2025
Why my AWD AWD152 will not operate?
- W
  Wendy WilsonAug 5, 2025
  If your AWD Chain Hoist won't operate, several factors could be at play. It could be due to a loss of power, in which case you should have it checked by a professional electrician. Also, ensure the voltage and frequency of the power supply match what's indicated on the motor rating label; if there's a discrepancy, have it repaired by a professional electrician. Overloading the hoist can also prevent operation, so reduce the load to stay within the rated capacity. Other potential causes include improper, loose, or broken wiring (have it checked by a professional electrician), blown fuses (check and repair if necessary by a professional electrician), or a burned motor (have it replaced by an authorized service center).
D
Dr. Justin LeeAug 10, 2025
What to do if my AWD AWD152 lifts but will not lower?
- H
  hgoodAug 10, 2025
  If your AWD Chain Hoist lifts but won't lower, it could be due to a faulty switch or a broken conductor in the control unit cable. In both cases, it's recommended to have it checked by a professional electrician.
D
davidweeksAug 15, 2025
What to do if my AWD AWD152 lowers but will not lift?
- M
  michelleortegaAug 15, 2025
  If your AWD Chain Hoist lowers but won't lift, there are several possible reasons. One reason may be overload, so you should reduce the load to stay within the rated capacity. It could also be due to a worn friction clutch, which should be repaired by an authorized service center. Other potential causes include a broken conductor or a faulty switch in the control unit cable, as well as low voltage in the power supply. For these issues, you should have it checked by a professional electrician.
A
Amanda GarzaAug 20, 2025
Why my AWD Chain Hoists will not lift rated load or does not have the proper lifting speed?
- S
  Scott KhanAug 20, 2025
  If your AWD Chain Hoist isn't lifting its rated load or lacks the proper lifting speed, it could be due to several reasons. First, check for overloading and reduce the load to the rated capacity. Low voltage in the power supply could also be a factor, which should be checked by a professional electrician. Additionally, a faulty friction clutch might be the cause. If unusual operation or slippage occurs, do NOT attempt to disassemble or adjust the mechanical load brake or friction clutch. Have the worn or malfunctioning mechanical load brake with friction clutch replaced as an assembly with a new factory part by an authorized service center.
M
Matthew GentryAug 26, 2025
Why AWD AWD152 Chain Hoists operates intermittently?
- C
  Christopher WilliamsAug 26, 2025
  If your AWD Chain Hoist operates intermittently, it could be due to a loose connection in the circuit, collectors making poor contact, or a broken conductor in the control unit cable. It is recommended to have it checked by a professional electrician.
F
ftaylorAug 30, 2025
How to fix load drifts on AWD Chain Hoists?
- M
  Michael BellAug 31, 2025
  If the load drifts when using your AWD Chain Hoist, it could be due to a demagnetized motor. To resolve this, have the motor repaired or replaced by an authorized service center, and reduce usage to comply with the duty rating stated.

Summary

Introduction

Safety Instructions

Lifting Equipment Safety

Ensure compatible, properly attached, and latched lifting equipment.

Work Area Safety

Warn people, ensure clear area, check load movement before operating.

Load Handling Safety

Adhere to capacity, center load, avoid hook latch stress, maintain straight line.

Safe Hoist Operation

Maintain focus, secure footing, avoid lifting people, protect from impacts.

Pre-Operation Checks

Visually inspect mechanisms, control unit, brakes, and lifting components.

Maintenance and Repair Guidelines

Qualified repairs only, use original parts, modifications are forbidden.

Technical Data

Installation

Installation Requirements

Check hoist, mains, mounting capacity, and position for safe installation.

Operation

Pre-Operation Checks

Master instructions, check suitability, ensure secure installation and wire condition.

Extension Cord Guidelines

Use correct voltage, length, and cross-sectional area for extension cords.

Accessory Compatibility

Ensure hooks/pulleys are compatible and rated at least double the hoist capacity.

Emergency Stop Procedure

Push the red emergency stop button to immediately switch off the hoist in emergencies.

Safe Lifting Practices

Do not exceed capacity, wear gloves, keep hands clear, avoid unattended operation.

Wire Spooling Control

Use UP/DOWN buttons for wire spooling and the red button to stop the hoist.

Inspections

Inspection Record Keeping

Record all inspections, maintenance, and repairs with dates in an inspection report.

Pre-Use Inspections

Visually inspect mechanisms, control unit, brakes, hooks, and wires before each operation.

Routine General Inspections

Perform regular checks on cables, clutch, control unit, hooks, wire, and fasteners.

Periodic Inspections

Periodic checks must be performed by authorized, qualified, or trained personnel.

Maintenance

Wire Replacement

Use identical wire; replace if worn, damaged, or heavily used.

Lubrication Requirements

Factory-lubricated; use special grease for lubrication after repair or dismantle.

Maintenance Inspection Schedule

Inspections by responsible person; repairs by authorized service center. Maintain annually.

Troubleshooting

Hoist Not Operating

Address issues with power, voltage, overload, wiring, fuses, motor, or control unit.

Lifting;Lowering Issues

Resolve problems like not lowering, not lifting, or slow lifting speed.

Load Drifting

Investigate demagnetized motor, duty rating violations, or overloading as causes.

Intermittent Operation

Troubleshoot loose connections, poor collector contact, or broken control unit cable.

EU Declaration of Conformity
