axing EoC 1-01 User Manual

2021-06-23 | Technical improvements, changes in design, printing- and other errors reserved. 13
4.1.2. The implementation

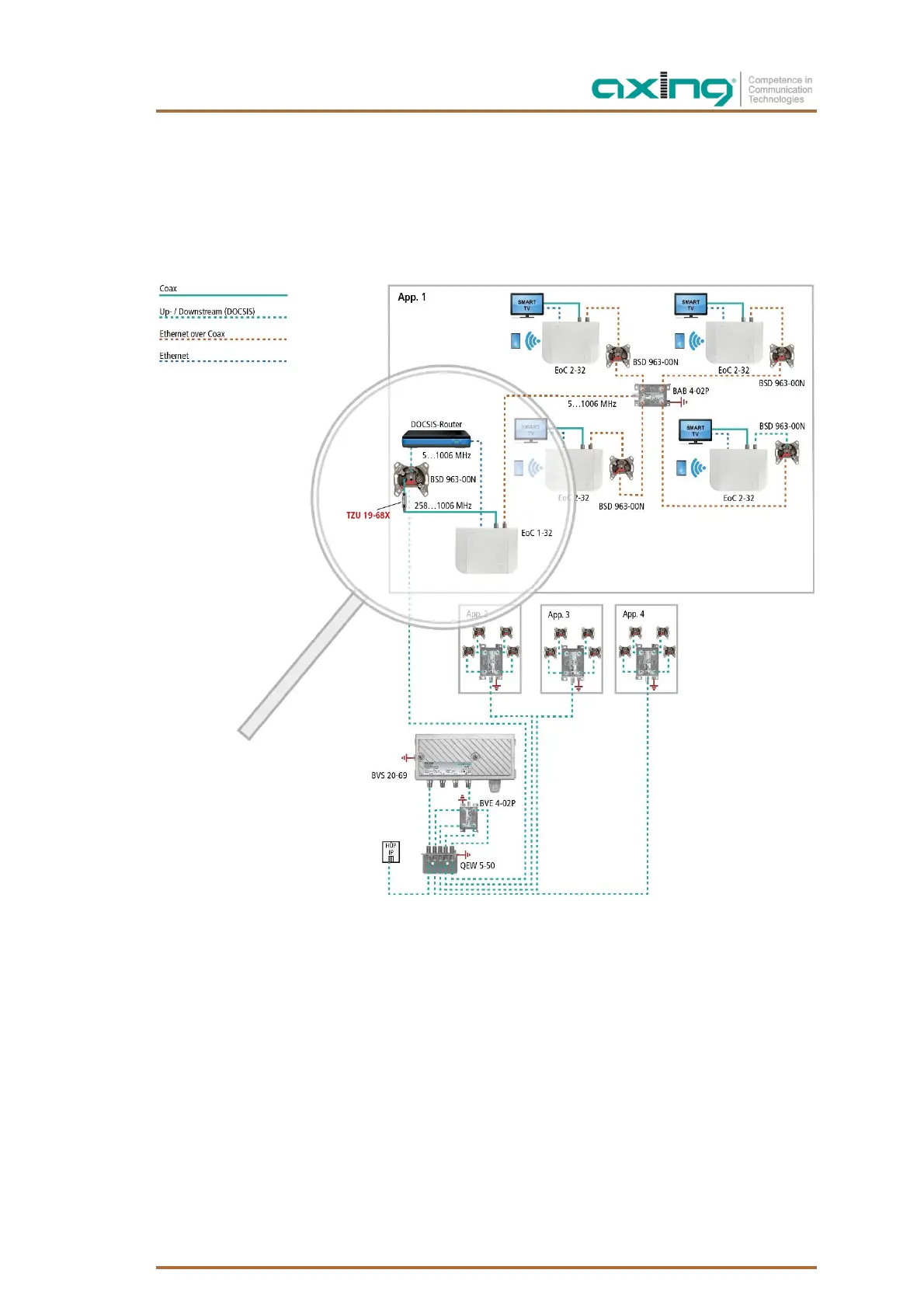

In the example a multimedia antenna wall outlet BSD 963-00N is installed in apartment 1. The IP data from the
cable network operator are received at the modem port of the BSD x using a DOCSIS router and forwarded via
LAN, e.g. to an EOC 1-32. The EOC modulates the IP data and feeds it into the distribution network via the
G.hn output using its internal diplexer. The data can be received at the other EoC devices.
For the connection of the other EOC devices in the example multimedia antenna wall outlets BSD 963-00N are
installed. The G.hn connectors of the EOC are connected to the DATA connector of the antenna wall outlet. TV
devices are connected to the TV port of the EOC.
Important: The use of a TZU 19-68X return path blocker is mandatory in order to achieve sufficient
blocking depth for the frequency range from 5...204 MHz. Otherwise it may cause interferences in
the cable network.
