Operation instructions | EOC 1-32 and EOC 2-32 | Ethernet over Coax Peer to Peer

18 2021-06-23 | Technical improvements, changes in design, printing- and other errors reserved.

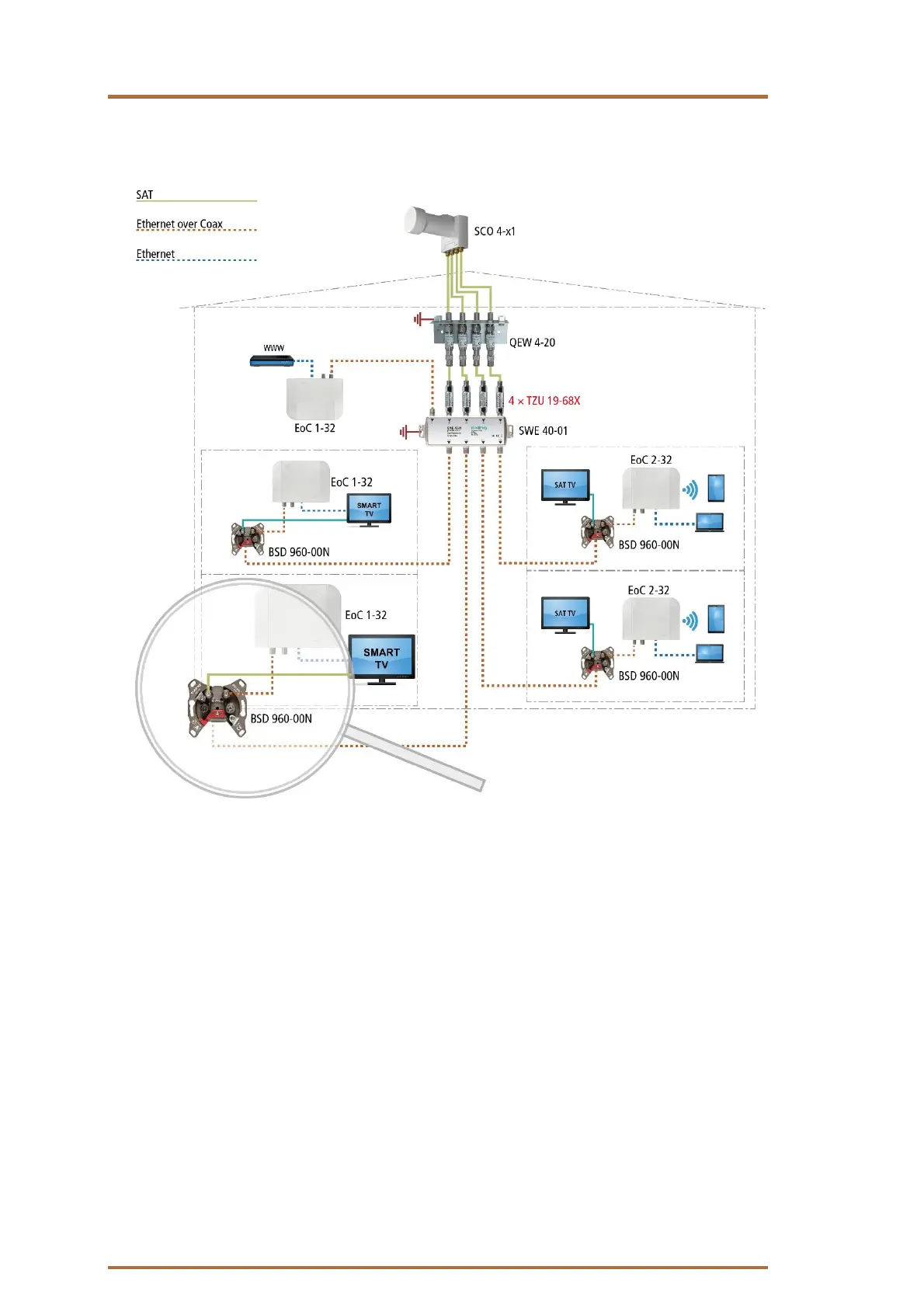

4.3.3. With combiner for a SAT system with QUAD-LNB

The IP data from the telephone provider is received with the help of a router and forwarded to an EOC 1-32 via

Ethernet, for example. The EOC modulates the IP data and feeds it via the terrestrial input of a SWE 40-01

combiner. The IP data can be received at the other EOC devices (e.g. EOC 2-32) at the TV output of a SAT

antenna wall outlet BSD 960-00N.
