4.3.2. At the subscriber output of a multiswitch

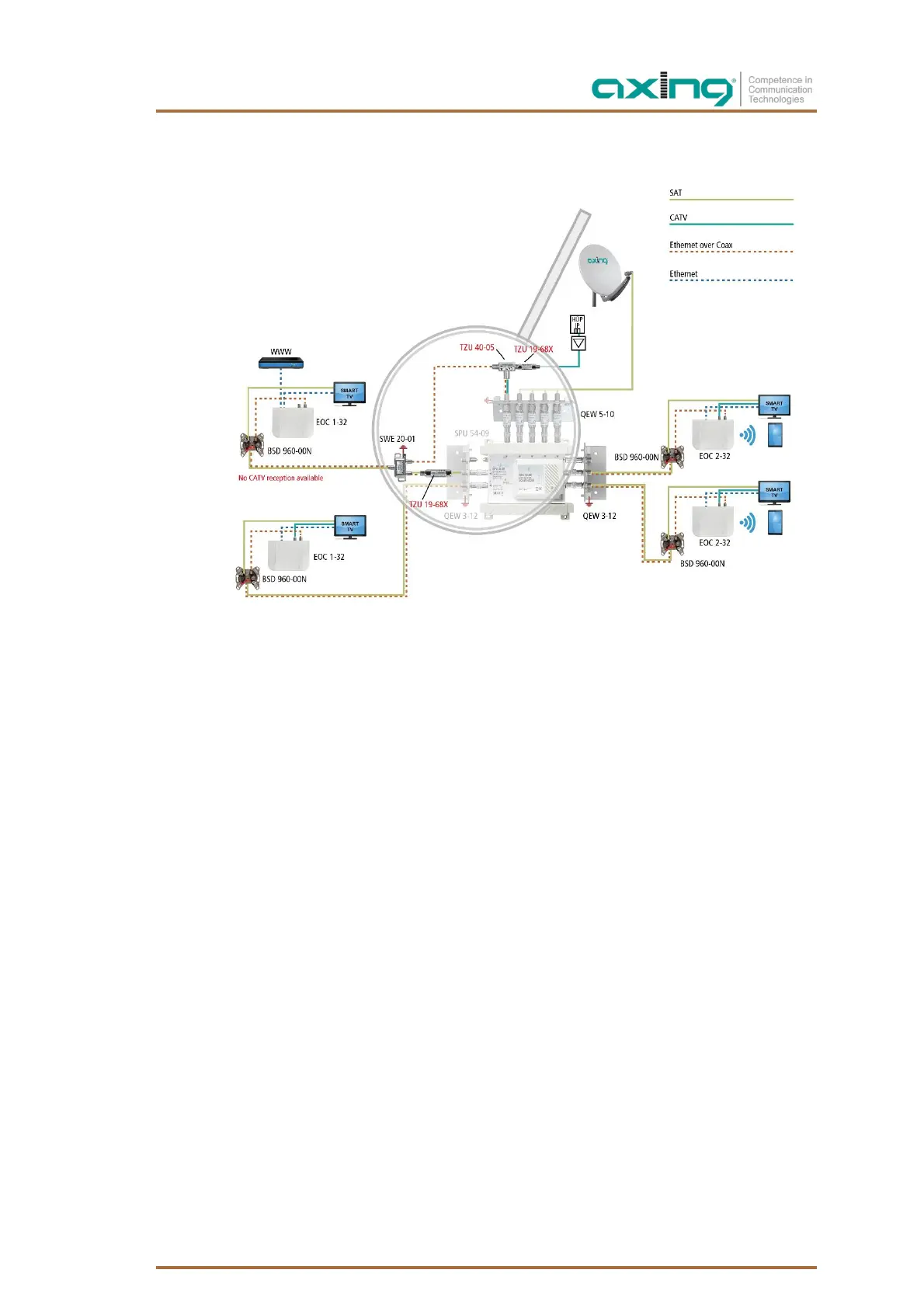

In the example, the EOC signals are fed in at the first subscriber port of a multiswitch.
The signals are split at the subscriber port with a SAT combiner SWE 20-01. Ethernet over Coax reaches the
terrestrial input of the multiswitch via the upper part of the combiner. This ensures that all other EOC devices
in the house are provided with Internet.
At the lower branch of the turnout the TZU 19-68X blocks the EOC signals. SAT signals are forwarded as usual
to the BSD 960-00N and the connected TV set.
