axing OTX 1310-10 User Manual

Operation Instructions | OTX 1310-10 | Optical Transmitter
4
2017-10-03 | Technical improvements, changes in design, printing- and other errors expected.
1. Description
The OTX 1310-10 is a high performance optical transmitter, based on ORTEL and AOI transmission
technology. The optical transmitter has following functions:
∂ AGC/MGC mode
∂ Low noise DFB laser
∂ Adjustable OMI
∂ SNMP (Simple Network Management Protocol) for administration and monitoring
∂
Furthermore, it has two redundant plug-in power supply modules.
OTX 1310-10 is used for long-distance optical fiber transmission of television TV signals. It uses a high-
performance DFB laser and RF power automatic processing technology, which assures excellent performance. It
can be used for large-scale HFC networks.

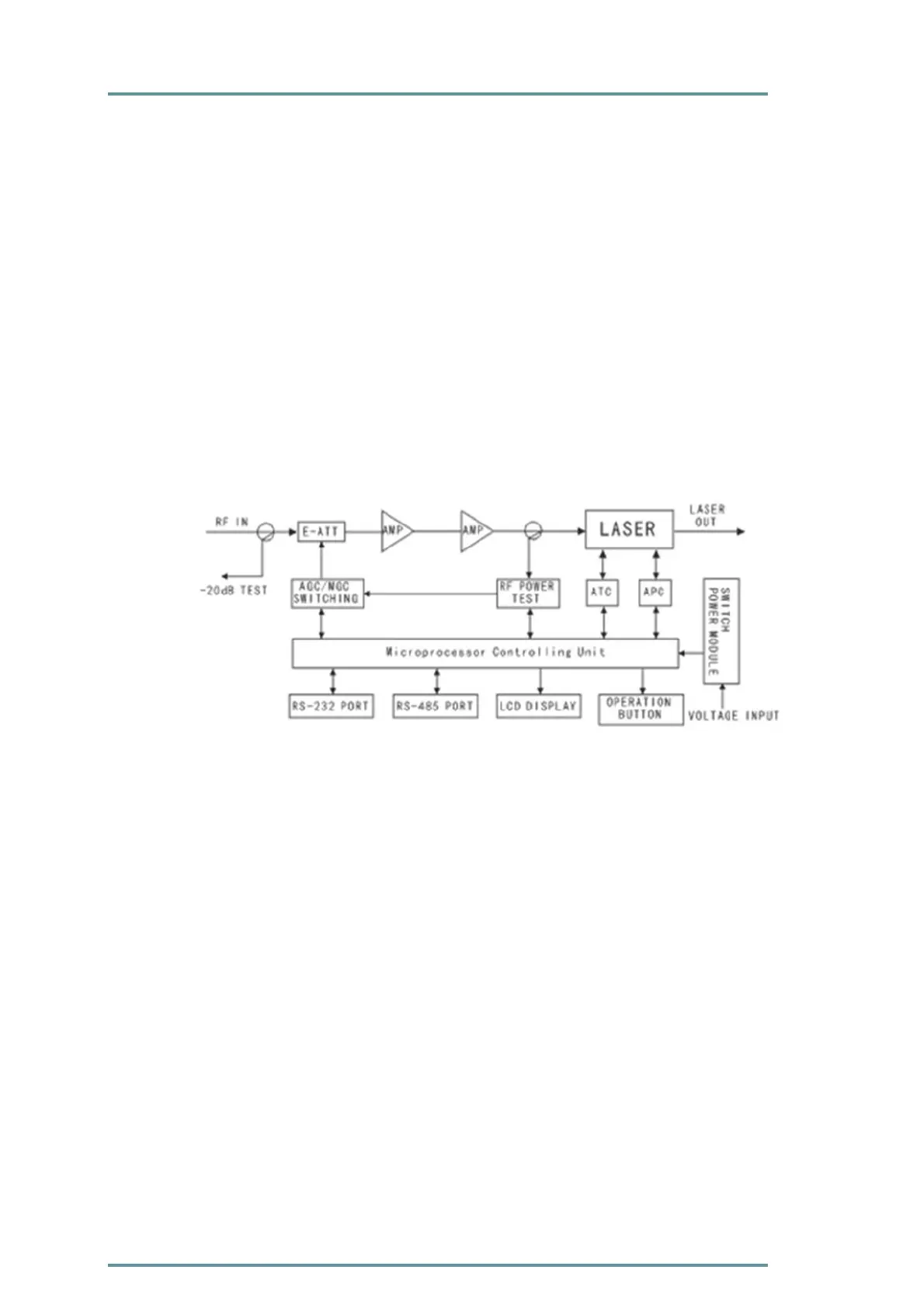

1.1. Block Diagram
