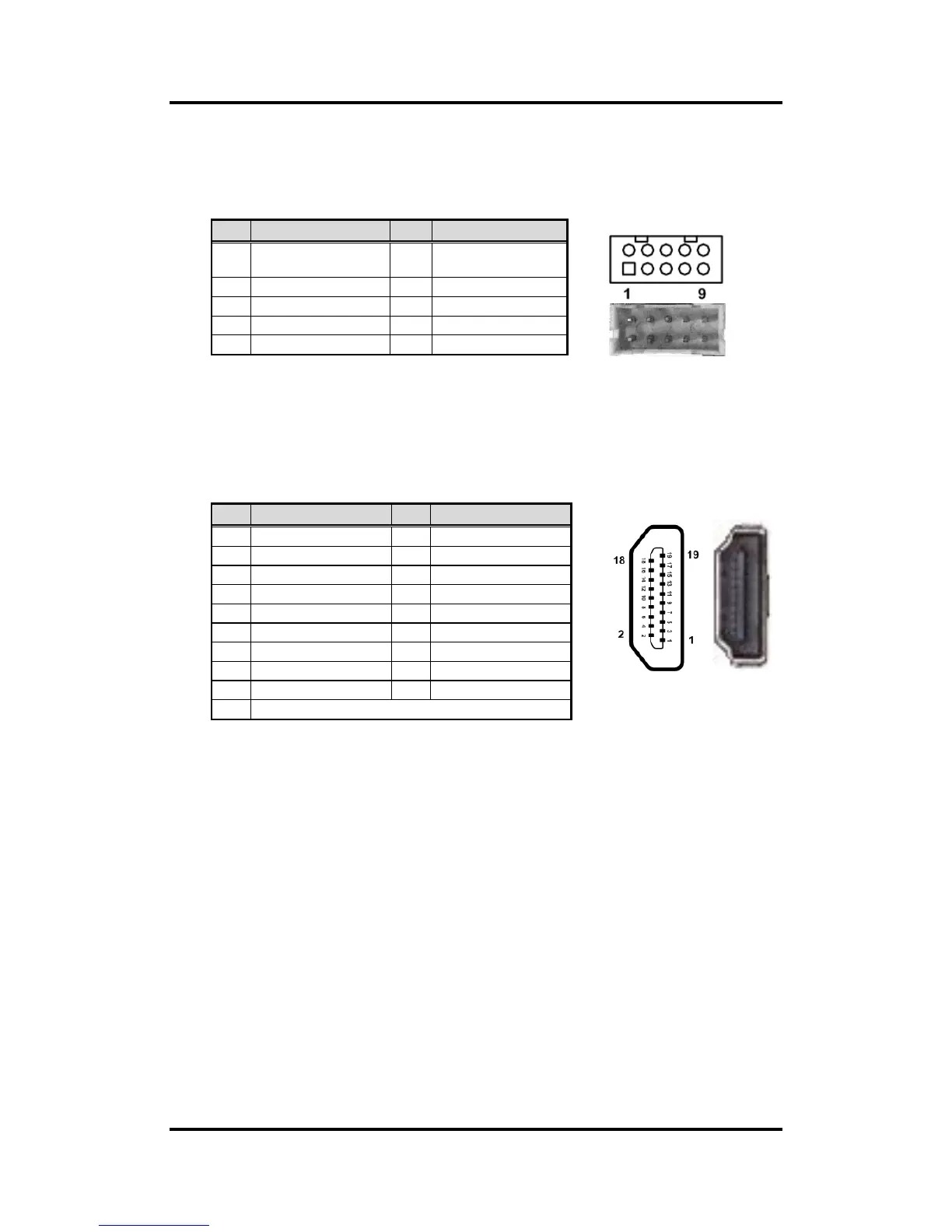

2.4.8 USB Wafer Connector (CN9)
This 2x5 pin wafer is a Universal Serial Bus (USB) connector for installing versatile USB
2.0 compliant interface peripherals.
The CN9 carries USB port 2 and 3.
2.4.9 HDMI Connector (CN10)
The HDMI (High-Definition Multimedia Interface) is a compact digital interface which is
capable of transmitting high-definition video and high-resolution audio over a single
cable. Its interface is available through connector CN10.
Pin
Signal
Pin
Signal
1
USB VCC
(+5V_SBY)
2
USB VCC
(+5V_SBY)
3
USB #2_D-
4
USB #3_D-
5
USB #2_D+
6
USB #3_D+
7
GND
8
GND
9
GND
10
GND
Pin
Signal
Pin
Signal
1
HDMI OUT_DATA2+
2
GND
3
HDMI OUT_DATA2-
4
HDMI OUT_DATA1+
5
GND
6
HDMI OUT_DATA1-
7
HDMI OUT_DATA0+
8
GND
9
HDMI OUT_DATA0-
10
HDMI OUT_Clock+
11
GND
12
HDMI OUT_Clock-
13
CEC
14
N.C.
15
HDMI OUT_SCL
16
HDMI OUT_SDA
17
GND
18
+5V
19
HDMI_HTPLG
