CAPA848 Capa Board
Board and Pin Assignments 17

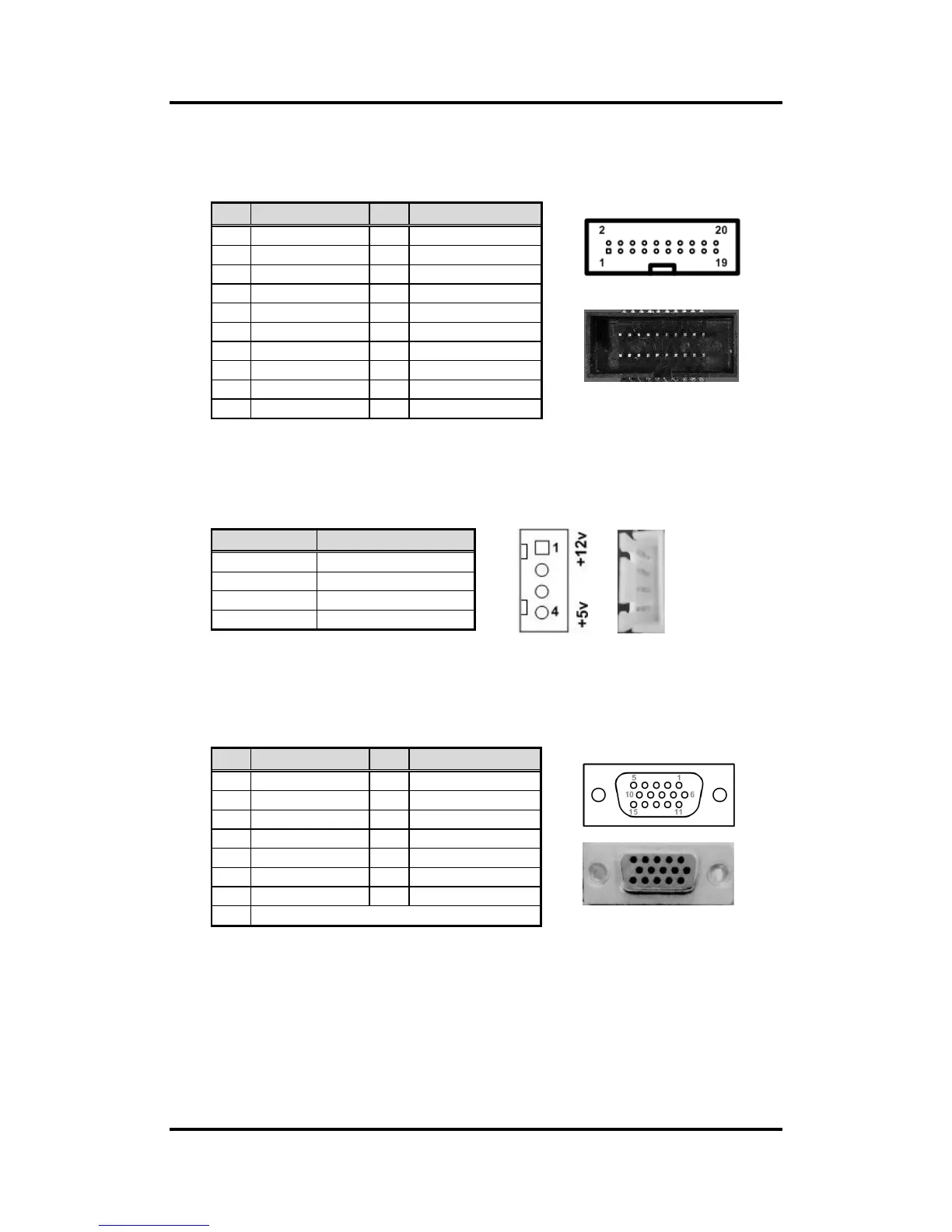

2.4.10 COM3 and COM4 Connector (CN11)
This is a 2x10-pin pitch=1.27mm wafer connector for COM3 and COM4. The pin
assignments are listed in table below.
2.4.11 SATA Power Connector (CN12)
Use CN12 for interfacing to SATA 2.5" HDD power supply.
2.4.12 VGA Connector (CN14)
This is a 15-pin D-Sub connector which is commonly used for VGA display. This VGA
interface configuration can be configured via software utility.
Pin
Signal
Pin
Signal
1
DCD3
2
DSR3
3
RXD3
4
RTS3
5
TXD3
6
CTS3
7
DTR3
8
RI3
9
GND
10
N.C.
11
DCD4
12
DSR4
13
RXD4
14
RTS4
15
TXD4
16
CTS4
17
DTR4
18
RI4
19
GND
20
N.C.
Pin
Signal
1
+12V level
2
GND
3
GND
4
+5V level
Pin
Signal
Pin
Signal
1
Red
2
Green
3
Blue
4
N.C.
5
GND
6
DETECT
7
GND
8
GND
9
VCC
10
GND
11
N.C.
12
DDC DATA
13
Horizontal Sync
14
Vertical Sync
15
DDC CLK
