AXIS 214 PTZ - Connections

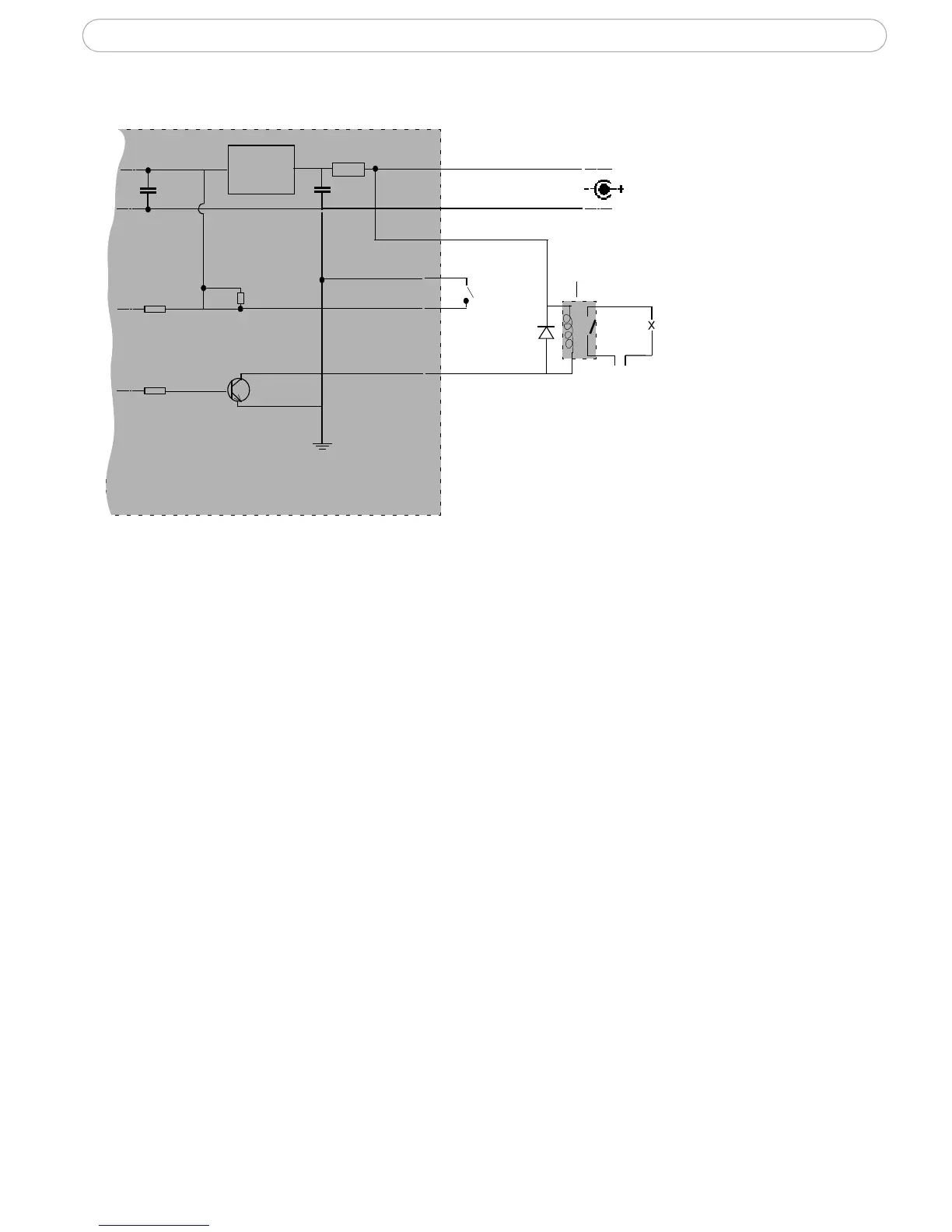

Schematic connection diagram
o
z
z
o
o
o
oo
AXIS 214 PTZ
3.3V
Power
e.g. push button
Device
z
4
o
3
o
Linear
Power
Supply
o
2
o
o
Relay
GND
+
1
Fuse 500mA
Connecting audio equipment
1. Connect a microphone (not supplied) to the LINE/MIC In socket.
2. Connect a loudspeaker (not supplied) to the LINE OUT socket (amplified speakers
only).
