Circuit Breakers
All major boat circuits are protected from shorting and overload by resettable circuit
breakers. If a problem develops with one of the following circuits, switch off the circuit
and wait about one minute. Then push the appropriate breaker button fully and switch on
the circuit. If the circuit continues to trip, there is a problem somewhere in the system.
See your dealership immediately to locate the problem.

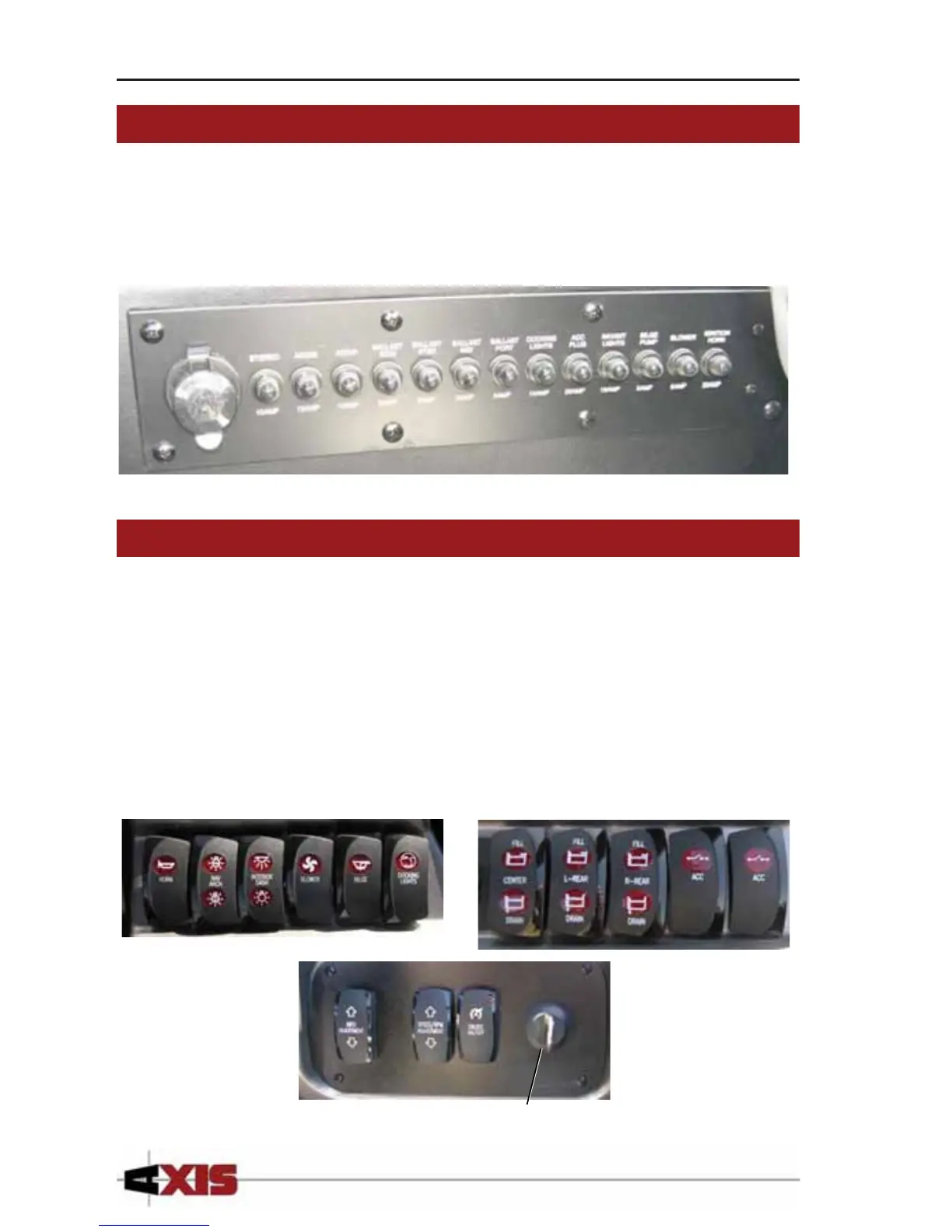

Figure 2-4. Circuit Breaker Panels
Switches & Indicators
Accessory Switch Panels
These panels are located in the dash directly below the standard gauges and are used to
activate the following features. You will find the feature or accessory provided within
each button face for description.
• Horn • Left, Rear Ballast
• Navigation/Anchor Lights • Right, Rear Ballast
• Interior/Dash Lights • Accessory
• Blower • Accessory
• Bilge Pump • Info Adjustment
• Docking Lights • Speed/RPM Adjustment
• Center Ballast • Cruise ON/OFF
Figure 2-5. Accessory Switch Panel
IGNITION SWITCH
Gauges & Controls
2-4
Chapter 2_11_Axis_ Chapter 2 doc.qxd 12/2/10 9:55 AM Page 4
