4

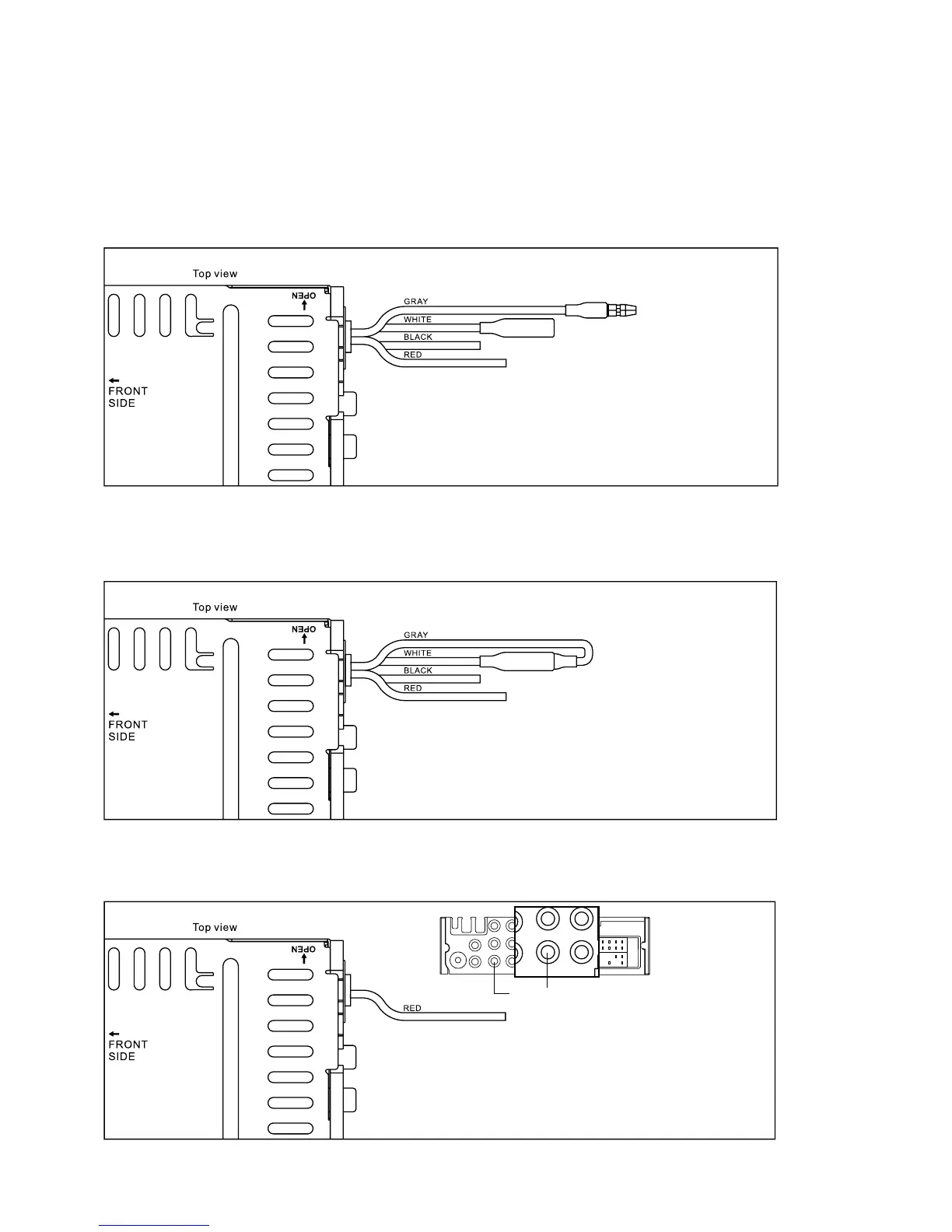

DRIVING WITHOUT VIDEO DISPLAY (Recommended Installation)
Follow the wiring diagram below so when the vehicle is in motion, no video will display on the LCD screen.
Only sound can be heard from the speaker system. Operation must comply with safety laws in all Australian &
NZ States.
Note:
- Only sound can be heard when car is in motion.
- Refer and follow your country’s law regarding driving with video.
Caution:
- Do not attempt DIY installation if these instructions are not clearly understood. Consult you dealer concerning
installation procedures.
DRIVING WITH VIDEO DISPLAY (Not Recommended)
By following the installation below, video will always be shown on the LCD screen no matter if the vehicle is in
motion or not. For safety reasons, this is NEVER recommended for normal on-road vehicles.
INSTALLING A REAR CAMERA TO PARK/REVERSE SAFELY
A separate parking/reversing camera can automatically switch video to the rear camera and guide the driver.
Steps: Connect the GRAY wire to the WHITE wire.
Steps:
1. Connect the Rear Camera IN plug to the rear camera’s
video out plug.
2. Connect the RED wire to “REVERSE” gear control switch.
3. Check your gear control switch and make sure it is
connected to +12V.
Steps:
1. Connect the gray wire to the hand brake system.
2. Check your hand brake switch and make sure it is
connected to car body chassis and properly grounded.
