Axis AX1870CP User Manual

16
15
General
Reference Supply Voltage .................................................................. 12V(DC)
Operating Voltage Range ......................................................10.5 - 15.8V(DC)
Max Operating Current ...............................................................................15A
RMS Output Power ............................................................................. 4 X 26W
Grounding System .................................................. Car Battery Negative Pole
Dimensions(WXHXD) .......................................................178×100×161.9 mm
Weight(main unit) ................................................................................... 1.38kg
FM
Signal Noise Ratio ................................................................................ ≥50dB
Residual Noise Sensitivity (S/N=30dB) ................................................ 18dBμV
Frequency Response (±3dB) ....................................................20Hz~12.5KHz
Station Seeking Level .................................................................... 20~28dBμV
Distortion ............................................................................................... ≤1.0%
Stereo Separation (1KHz) ..................................................................... ≥25dB
Antenna Impedance ....................................................................................75Ω
AM
Residual Noise Sensitivity (S/N=20dB) ................................................ 30dBμV
Selectivity (±9KHz) ................................................................................ ≥50dB
LCD
Screen size ............................................................................ 6.75 inchs (16:9)
Display resolution ......................................................................800 X 480 dots
Contrast ratio .........................................................................................4000:1
Brightness .......................................................................................... 280cd/m
2
AUX IN
Distortion ............................................................................................... ≤0.8%
Frequency Response (±3dB) .......................................................20Hz~20KHz
Audio Input Level .................................................................................0.5Vrms
Audio Low-Level
Audio Output Impedance ..........................................................................100Ω
Audio Output Level ....................................................................... 3Vrms(Max)
Video
Normal Video Input Level (CVBS) ......................................................1.0±0.2V
Video Input Impedance ...............................................................................75Ω
Environment
Operating Temperature ..............................................................-30°C ~ +70°C
Storing Temperature ..................................................................-40°C ~ +85°C
Operating Humidity ..................................................................... 30%~95%RH
Storing Humidity .......................................................................... 30%~95%RH
Notice:
When the unit is operated to extremes, such as with maximum power output for a long time,
or the temperature is over 70°C, it will enter thermal protection mode, the volume will be
reduced automatically. This is normal.
Specications
PN.: 1270750018600

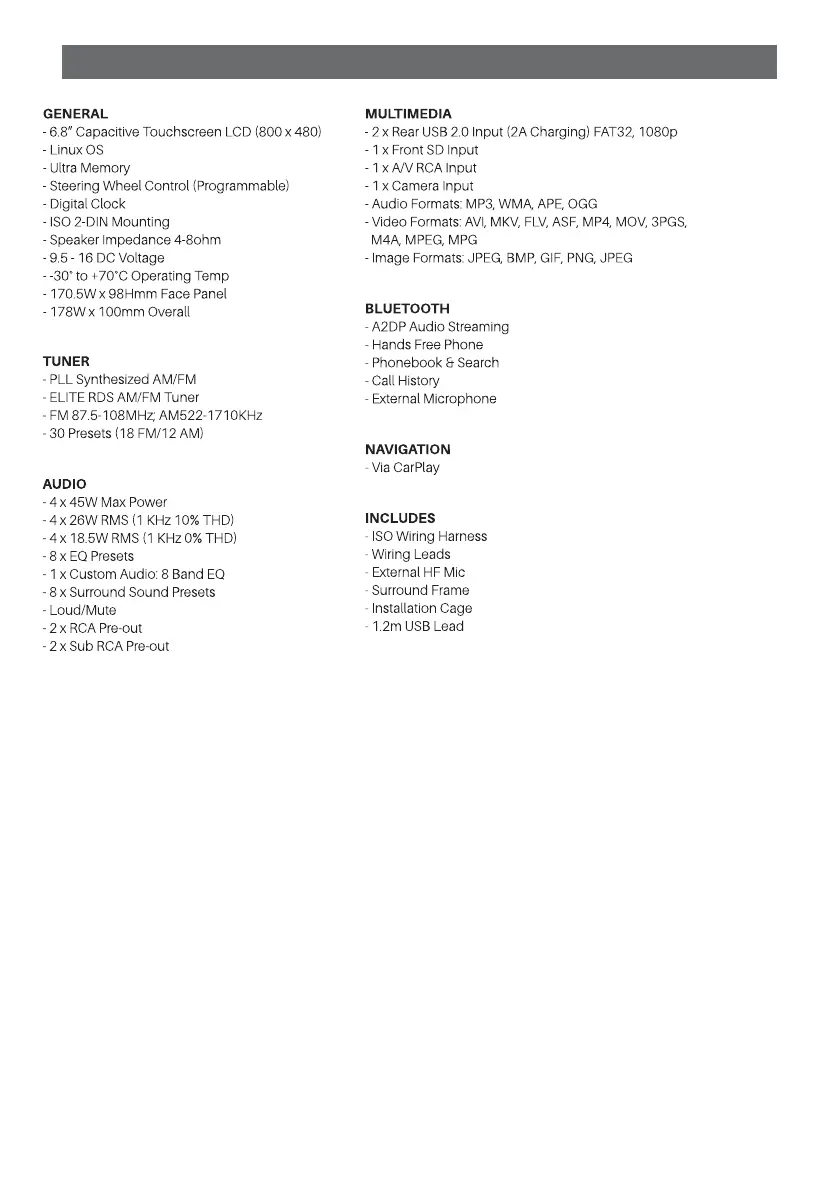

Axis AX1870CP Specifications

General

Brand	Axis
Model	AX1870CP
Category	Car Video System
Language	English
