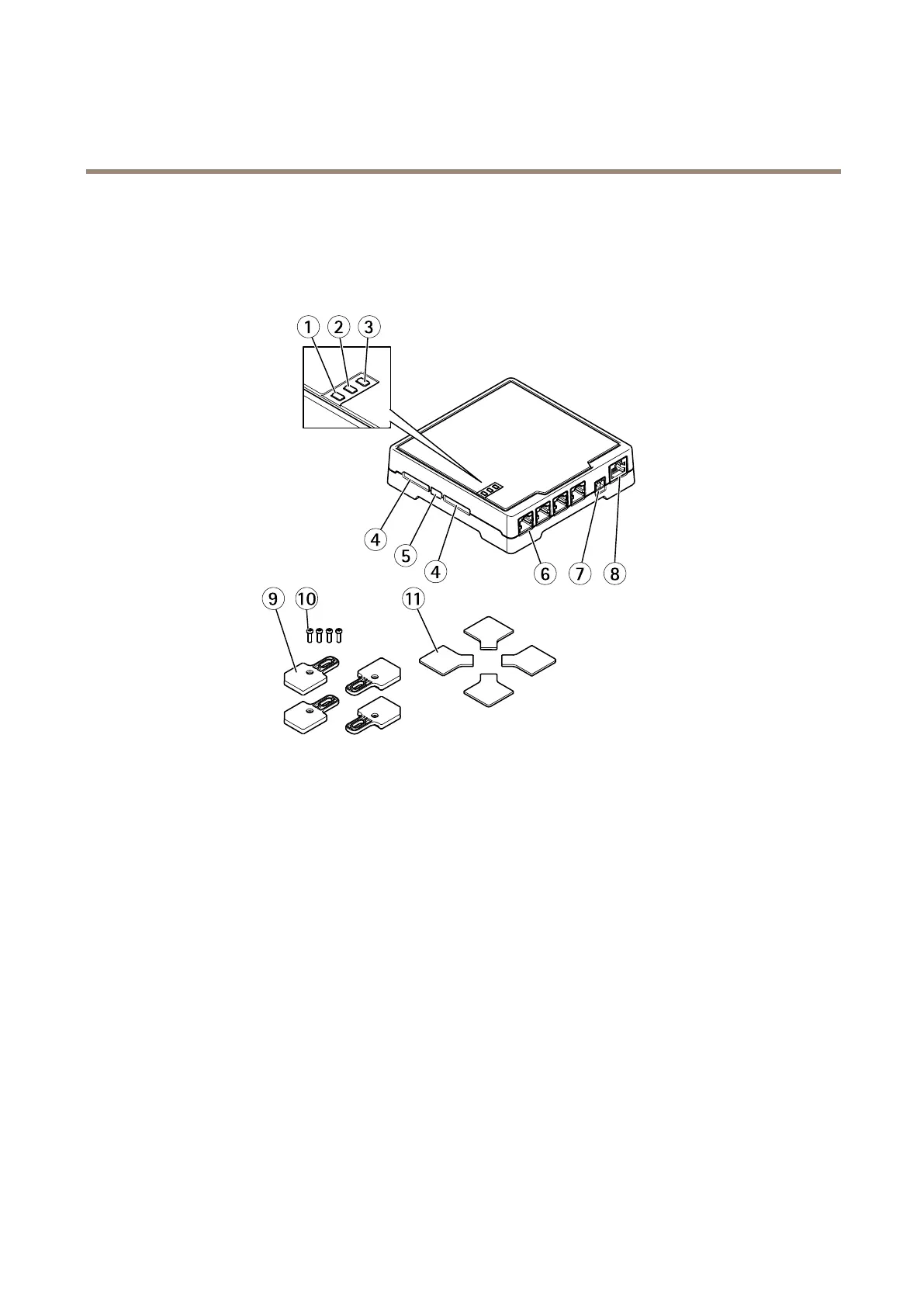

Axis F34 - Hardware Overview; Component Identification Diagram

AXISF34MainUnit
HardwareOverview
HardwareOverview
4
5
6
7
8
4
1
2
3
9
10
1
1
1.
LED(Power)
2.
LED(Status)
3.
LED(Network)
4.
SDcardslot
5.
Controlbutton
6.
RJ12connector
7.
Powerconnector
8.
Networkconnector(PoE)
9.
Mountbrackets(4x)
10.
Screws(4x)
11.
Rubberfeet(4x)
