Axis P1445-LE - Vehicle entry and exit scenario; Open a barrier for known vehicles using a relay module

AXISP1445-LE-3LicensePlateVerifierKit
Vehicleentryandexitscenario
Vehicleentryandexitscenario
Inthescenarioforvehicleentryandexit,theapplicationreadsthevehiclelicenseplatecapturedbythecameraandveriesthe
licenseplateagainstalistofauthorizedorunauthorizedlicenseplatenumbersstoredinthecamera.
ThisscenariorequirestheapplicationembeddedinacamerawithI/OsupportoraconnectedI/Orelaymoduletoopenandclosethe
barrier.

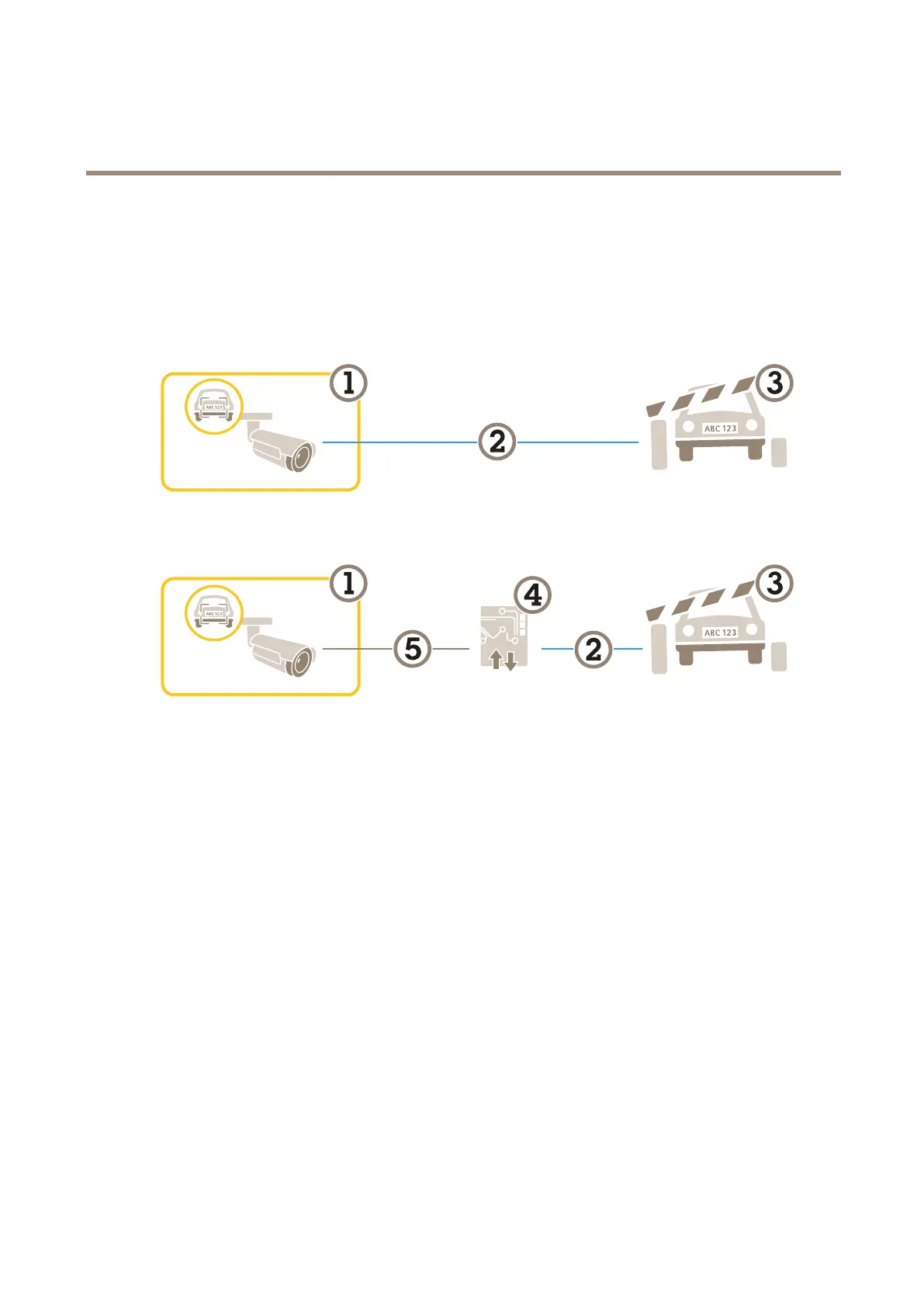

Twopossiblesetupsforthevehicleentryandexitscenario.
1
AxiscamerawithAXISLicensePlateVerier
2
I/Ocommunication
3
Barrier
4
AxisI/Orelaymodule
5
IPcommunication
Openabarrierforknownvehiclesusingarelaymodule
ThisexampleusecaseexplainshowtosetupAXISLicensePlateVeriertogetherwitharelaymoduletoopenabarrierforaknown
vehicledrivingthroughaspecicregionofinterest(ROI)into,let’ssayaparkingarea.
Requirements:
•Cameraphysicallyinstalledandconnectedtothenetwork.
•AXISLicensePlateVerierupandrunningonthecamera.
•Cablesconnectedbetweenthebarrierandtherelaymodule.
•Basicsetupdone.SeeBasicsetuponpage4.
1.Gotothecamera’swebpage,selectSettingsandopenAXISLicensePlateVerier.
2.Gototherelaymodule’swebpageandmakesuretherelayportisconnectedtothecamera’sI/Oport.
3.Copytherelaymodule’sIPaddress.
4.GobacktoAXISLicensePlateVerier.
