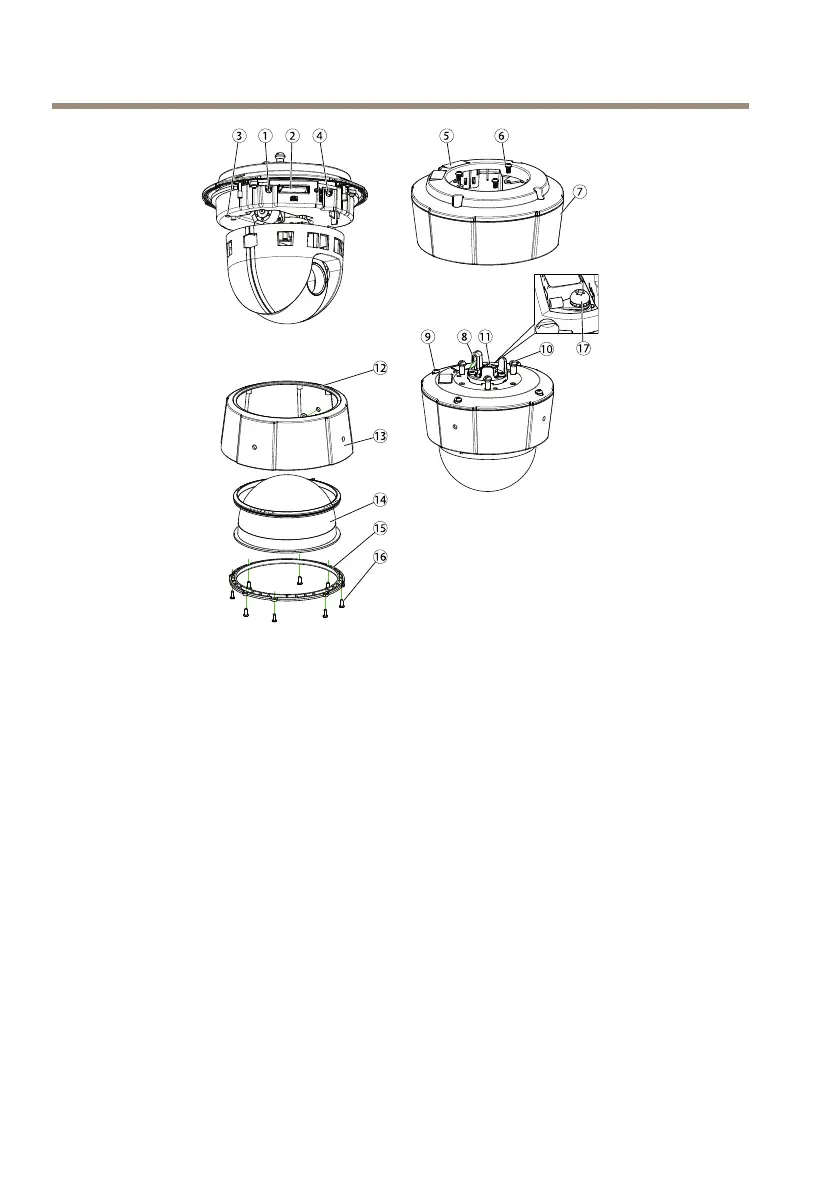

AXISP55-ENetworkCameraSeries
12
13
14
15
16
3
1
2
4
5
9
8
11
10
6
7
17
1.
Pulsantedicomando
2.
SlotperschedaSD
3.
IndicatoreLEDdistato
4.
Pulsantediriavvio
5.
Codicedispositivo(P/N)enumerodiserie(S/N).Ilnumerodiseriepuòessere
richiestodurantel'installazione.
6.
Viti(3)
7.
Parasole
8.
Ganciopercavodisicurezza
9.
Vitidellacoperturasuperiore(4)
10.
Supportidell'unità(3)
11.
ConnettorediretePoE
12.
Guarnizioneadanello
13.
Coperchiosuperiore
14.
Coperturaacupola
15.
Anellocupola
16.
Vitianellocupola(8)
17.
Vitedimessaaterra
