AXISQ1615-EMkIINetworkCamera

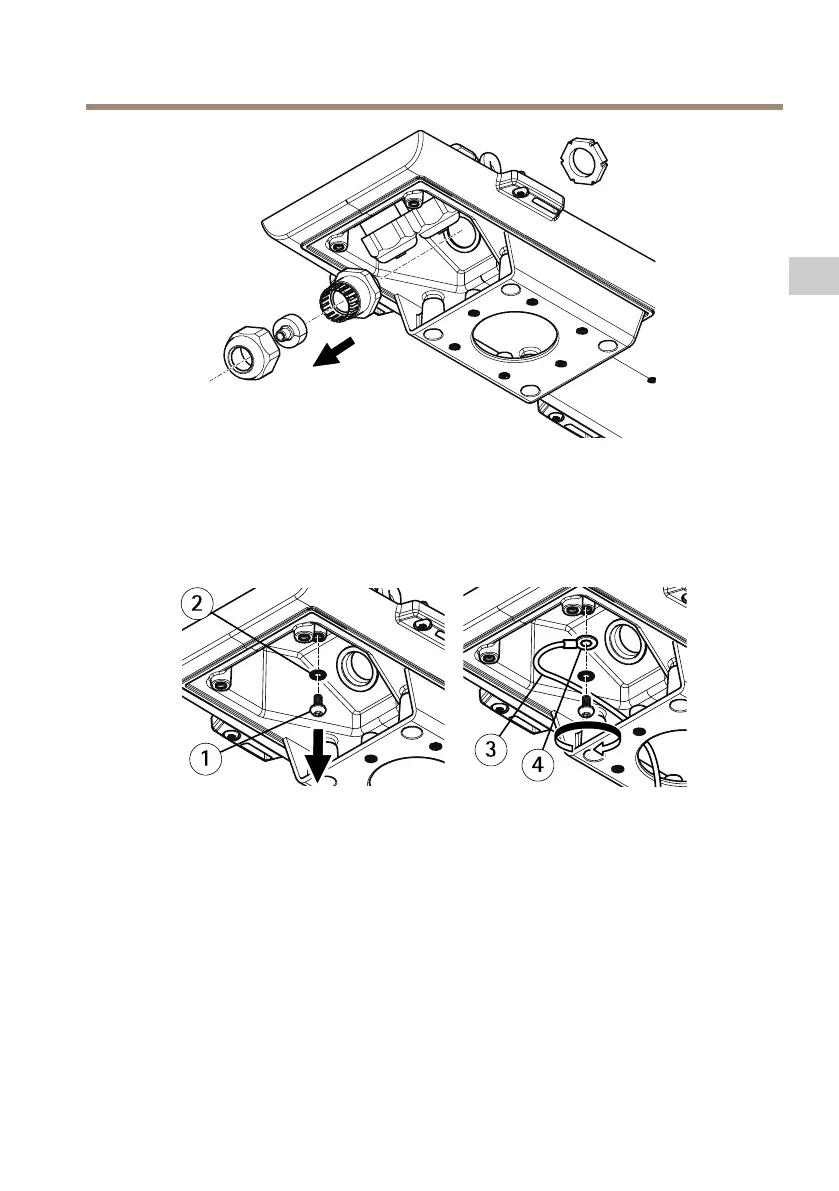

3.Retirezlecapuchon,lebouchonetlejointdupresse-étoupeàutiliser.
4.Retirezlavisdemiseàlaterre,larondelleetl’anneaudelacossedemiseàlaterre.
5.Fixezlecâbledemiseàlaterremontésurl’anneaudelacosseetlarondelleàl’aidede
lavisedemiseàlaterre.
1
Visdemiseàlaterre
2
Rondelle
3
Câbledemiseàlaterre
4
Cosse
6.Acheminezlecâbleréseaudanslecapuchon.
7.Faitesglisserlecâbleréseauparlafentedujoint.
8.Acheminezlecâbleréseauàtraverslepresse-étoupe.
43
