Axis Q87 Series Installation Guide

AXISQ87BispectralPTZNetworkCameraSeries

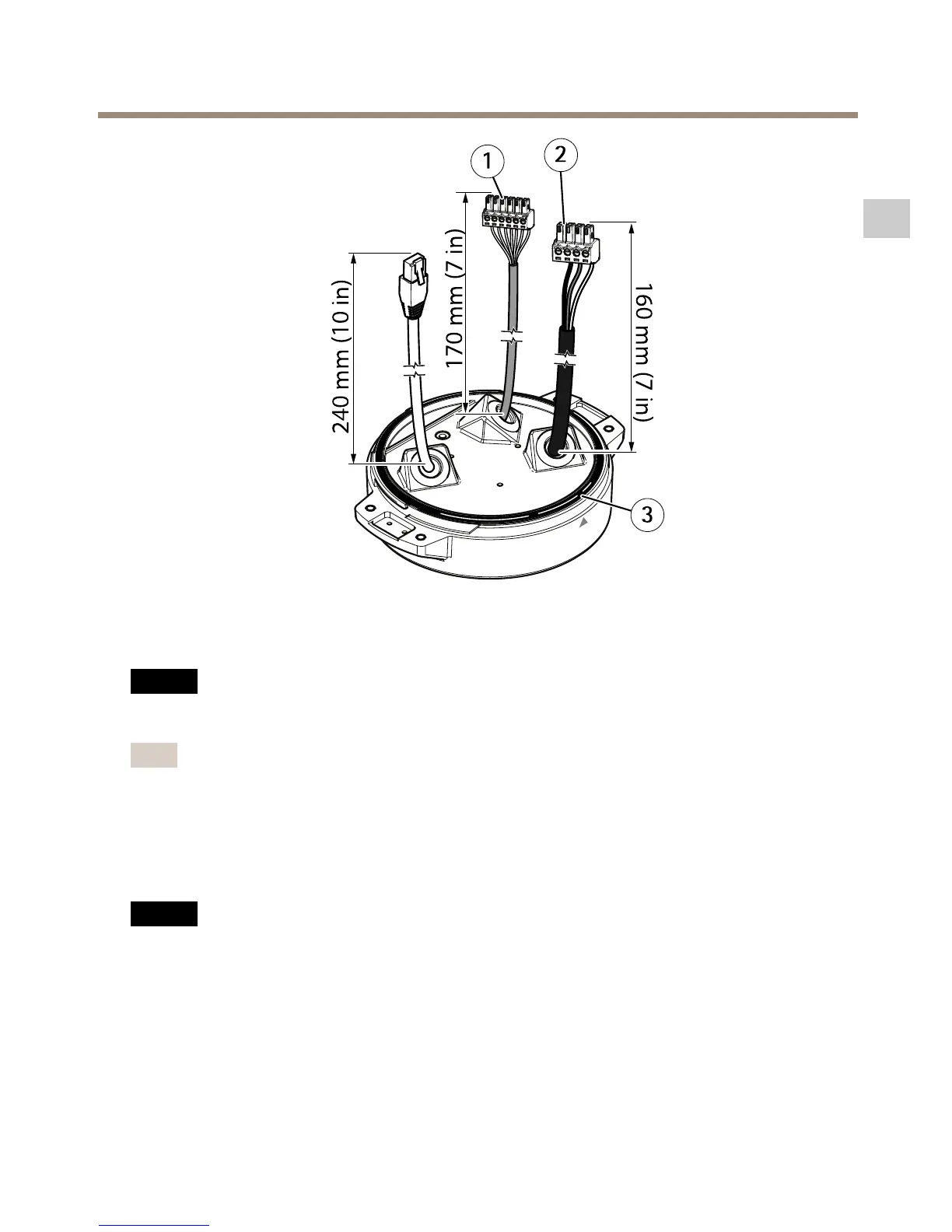

1
I/Oconnector
2
Powerconnector
3
O-ring
NO NO
NO
TICE TICE
TICE
Makesuretheprotectiveearthwireisabout10mm(3/8in)longerthantheothertwo
wires(inthepowercable),sothatitwillnotbedisconnectedaccidentallyifpulled.
Note
Werecommendthatyoustripapproximately90mm(3½in)ofthepowercablejacketand
70mm(2¾in)oftheI/Ocablejacketforeaseofinstallation.
11.InstallthepowerandI/Oconnectors,seeConnectorsonpage27.
12.Adjustthenetwork,I/Oandpowercablessothatthedistancefromthecablegasketto
theendoftheconnectoris240mm(10in),170mm(7in),and160mm(7in)respectively.
NO NO
NO
TICE TICE
TICE
MakesurethattheO-ringisttedcorrectlyaroundthetransparentbaseunitcover.
19
EN
