Axminster AT1628VS - Table of Contents

Assembly Instructions
7
Lathe Stand Assembly (Code: 502705)
Figure 04
b
Figure 05
Figure 06

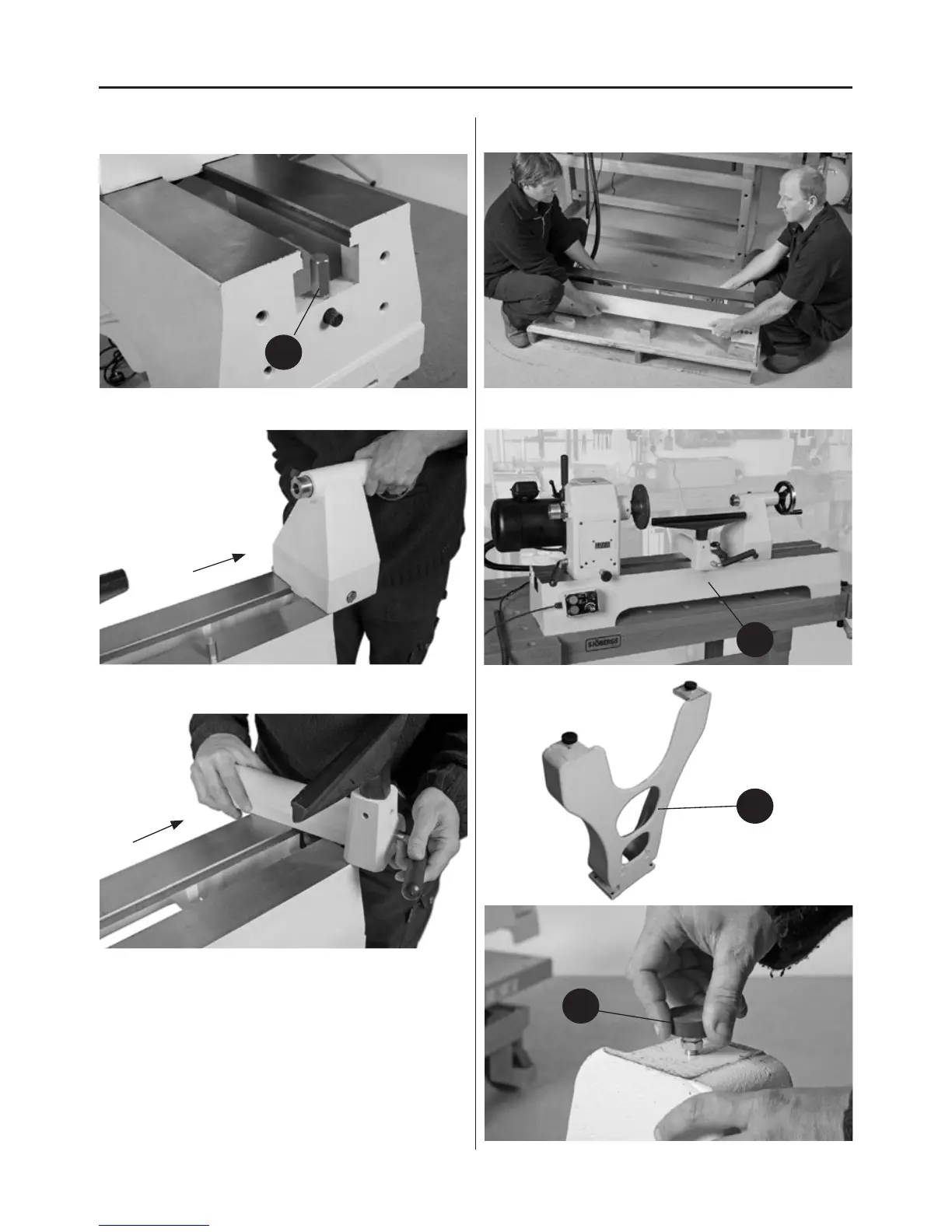

3. Lift the lathe bed from the pallet onto a work
bench, see figs 7 then refit the headstock, tool rest
and tailstock as described in steps 1 and 2, see
figure 8
Figure 07
Figure 08
1). Locate the two lathe stands (F) and the four feet
(G).Screw the threaded feet into the pre-drilled holes
to the base of the stands. (See figure 9)
Figure 09
F
G
Continues Over...
A
