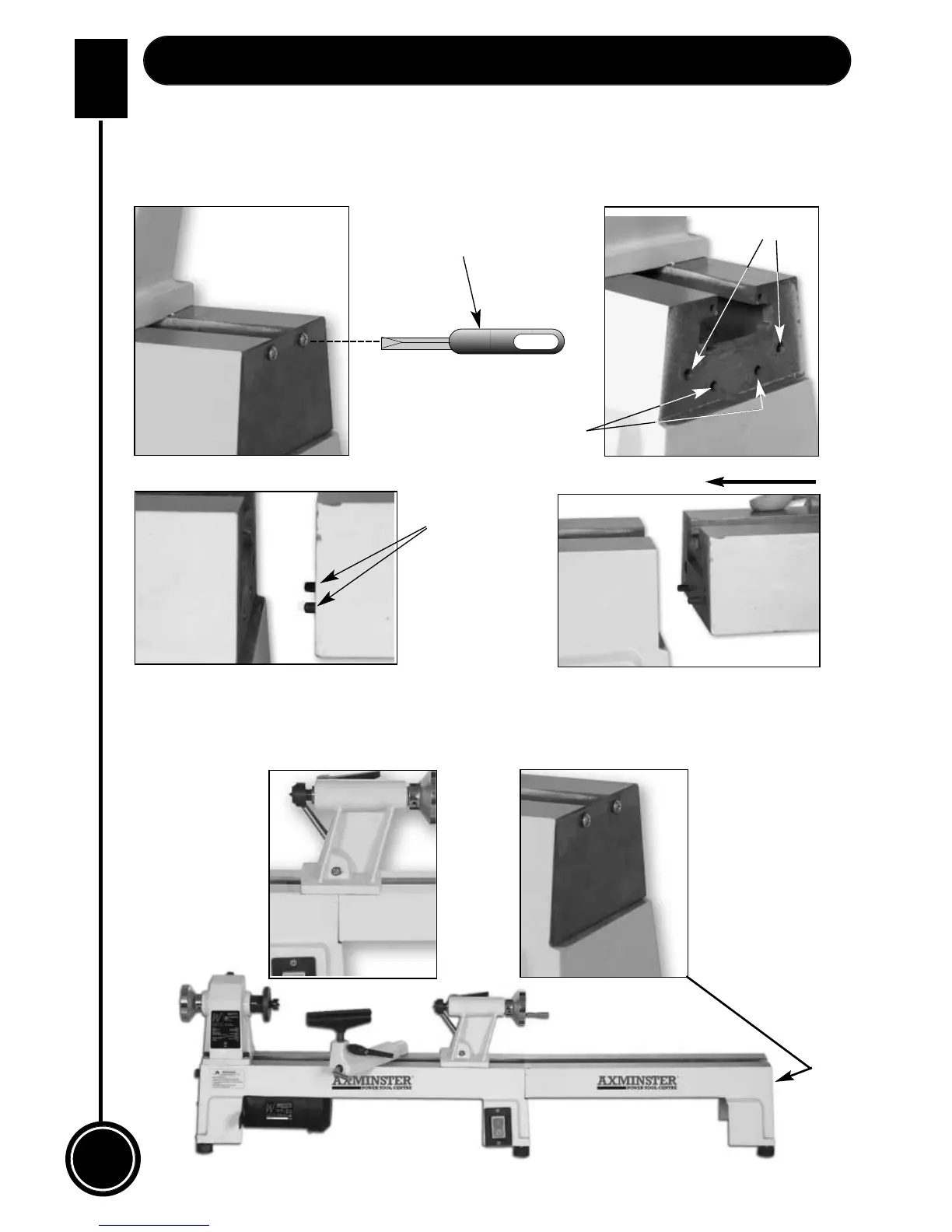

Initial Assembly...
Step 1
Remove the two screws.
Step 2
Remove the plate and
locate the holes.
Step 3
Line up the extension bed
locating dowels with the two
dowel holes in the casting.
Step 5
Clamp the
tailstock across
the join to align
the beds. Then
tighten the
holding bolts
securely.
Step 6
Refit end cover
plate to extension
bed.
Step 4
Slide the extension bed carefully
but firmly into place. Insert the
bolts and tighten, finger tight.
Extension bedWood lathe
Screw driver
Assembling your optional Extension Bed (Part No: 702327)
Dowel holes
Bolt holes
Typ. dowels
To Next Page
