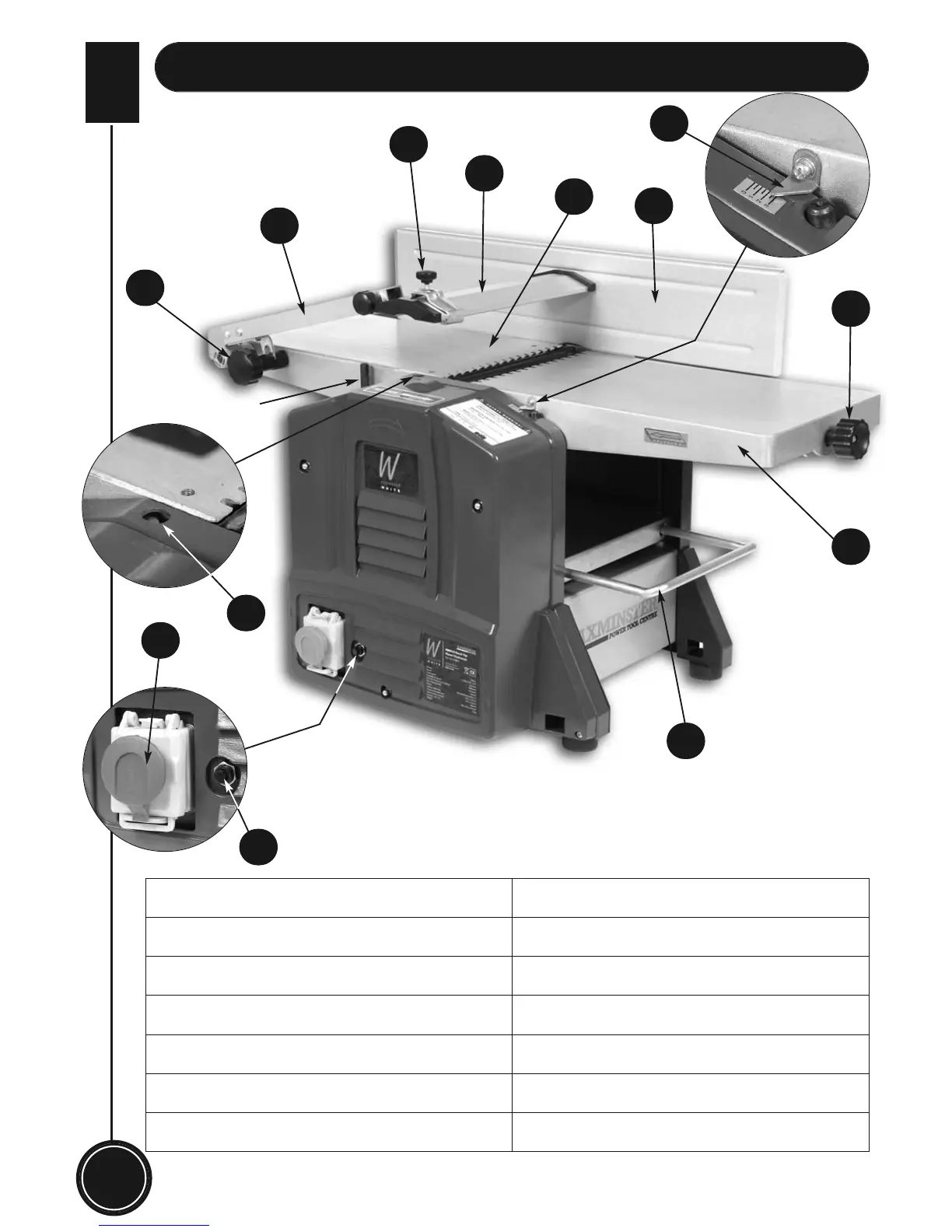

Parts Illustration and Description...
1. Cutterblock Guard Clamping Knob 7. NVR Switch
2. Mounting Arm Clamping Knob 8. Guide Fence Assembly
3. Mounting Arm 8a. Fence Scale
4. Safety Interlock Switch 8b. Fence Pointer
5. Fixed Outfeed Table 9. Cutterblock Guard
6. Rise & Full Handle (Page 02) 10. Adjustable Infeed Table
6a. Overload Switch 11. Infeed Table Adjusting Knob
1
5
8
10
11
14
9
3
4
6a
7
2
Pillar
12
To Next Page
