15
WHITE
AXMINSTER
W
Operating Instructions...
PLANNING CONTINUED

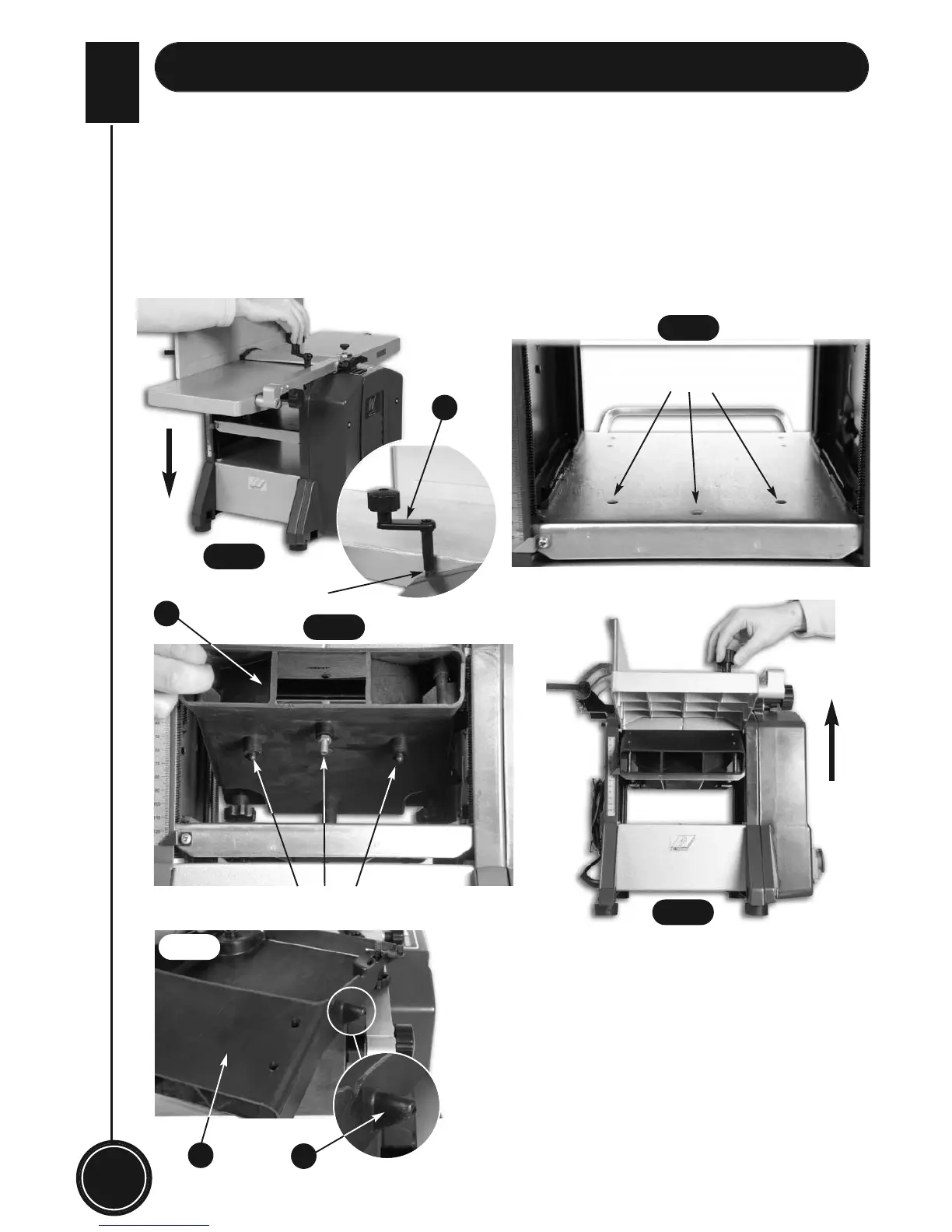

Fit the dust extraction system:
1) Place the rise & full handle (6) onto the pillar on the left side of the fixed table, and then rotate
it counter-clockwise to adjust the thicknessing table to its lowest position. (See fig 9)
2) Place the dust extraction port moulding (15) on the thicknessing table. Ensure that the three
pins to the underside of the dust extraction port(15) are positioned into the three holes in the
thicknessing table. (See figs 10 & 11)
3) Rotate the rise & full handle (6) clockwise to raise
the thicknessing table until the dust extraction port(15)
is firmly clamped and its lug(17) is located onto the
safety interlock switch(4) (See figs 12,13 & 14)
4) Fit the double-ended adaptor (15a) to the dust
extraction port(15). (See fig 15) Fit the dust suction
hose of a dust extractor unit (not supplied) to the
double-ended adaptor. Raise the cutterblock guard (9).
6
17
15
15
Pillar
Three holes in the
thicknessing table
Fig 9
Fig 10
Fig 11
Fig 13
Fig 12
Dust extraction port pins
To Next Page
