Axon Cerebrum CGP-4848 User Manual

13

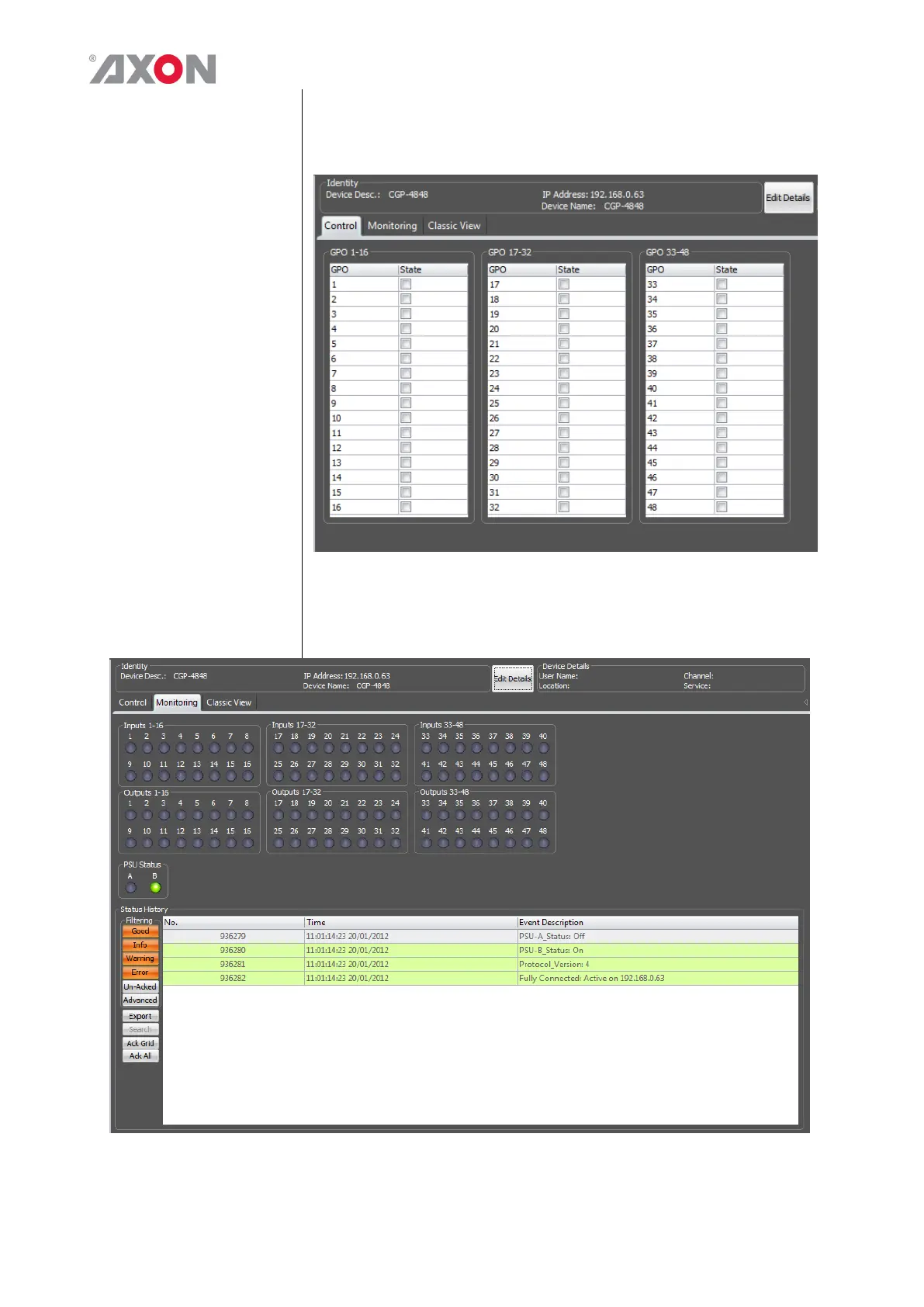

When the unit is on-line and selected in the System View the
Device View will allow control of the GP outputs of the unit as
shown below.
The Monitoring tab, in the same way as all other devices within
Cerebrum, shows a historical log of the status events for this unit
along with the status of the GP inputs and PSU’s. the following
screenshot displays the monitoring tab.

Axon Cerebrum CGP-4848 Specifications

Power

AC PSU voltage	100–240 V AC
AC PSU current	1.2 A
AC PSU frequency	50/60 Hz
panel input voltage	12 V DC
panel input current	2.0 A

Operating Environment

operating temperature	0º to 40º C
storage temperature	-20º to 70º C

Weight and Dimensions

height	45 mm
width including front panel	484 mm
depth including front panel and DC connector	195 mm
width excluding front panel	450 mm
depth excluding front panel including DC connector	175 mm
weight excluding power adapter	2.5 kg
