F 1° = P (VA) trasnf. x 1,1
V (primary) ac
F2 X MCS 1/2 = 2A
X MCS 2,5/5 = 5A
X MCS 6/12 =10A
X MCS 10/20 = 20A

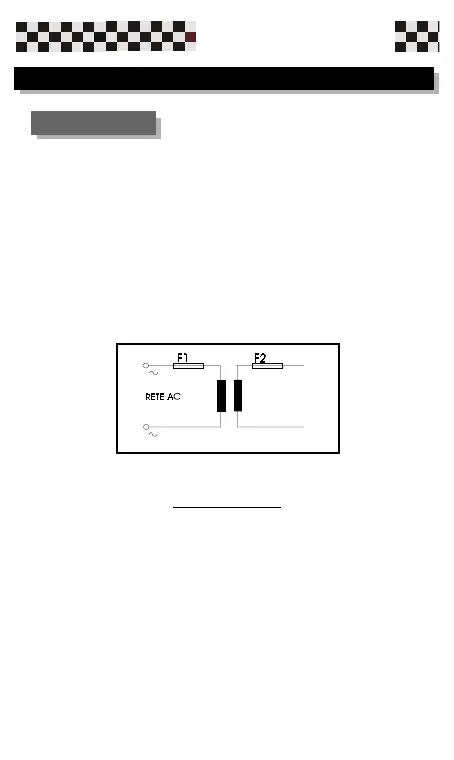

A fuse should be fitted into each of the transformers
primary and secondary windings,F1 and F2.
These fuses may be replaced with a magneto-termic
switch with the same value.
The F1 fuse mounted on the primary protects the
transformer.
This fuse must be the slow type.
The F2 fuse mounted on the secondary also protects
the transformer and that fuse must be the slow type.
Power supply rating (continued)
