It's possible to enable clockwise (CW) and counter-
clockwise (CCW) motor rotation by connecting the
+LM SW and -LM SW inputs.
They may be used to block motor rotation when the
machines overflow contact is intercepted.
Note - When one of these said contacts is
intercepted the motor stops with the
required inertia.
The Enable input in regards to this input always has
priority.
To enable such a function, you must:

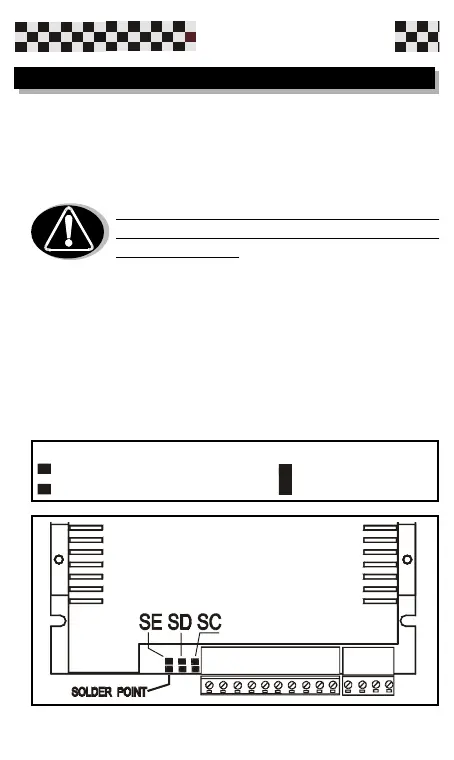

-- Open soldiering point SE
-- Then connect on said input a positive voltage
(between +5Vdc and + 24Vdc) coming from -for
example two N.C. contacts. You may connect an
external supply "combining negative" as well as from
one of the supplies furnished on the Microspeed.
=NOT ENABLE
=+/- LIMIT SW. ENABLE
