43
MICROSPEED
REV 04/05

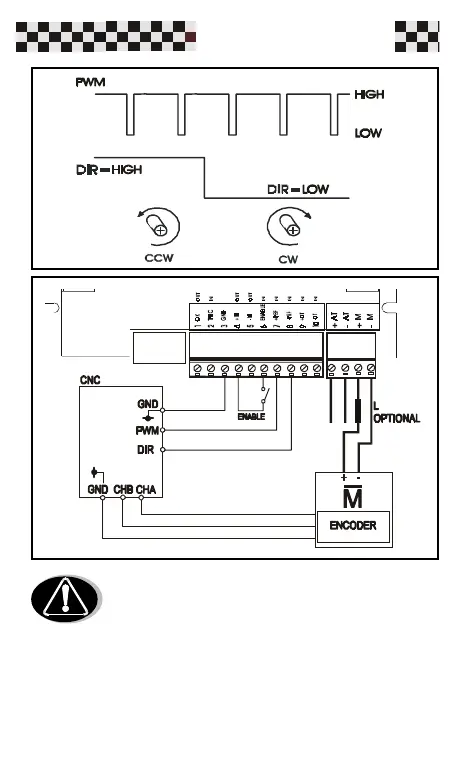

Note:
On Pwm+Direction Product cover, the +REF, -REF
identifications corrispond to, PWM and DIR inputs.
+
-
-- At Soldering point SC insert a pull-up resistor of 3,3 Kohm to
internal +Vcc (+14V) for PWM input "Terminal 7".
-- At Soldering point SD insert a pull-up resistor of 3,3 Kohm to
internal +Vcc (+14V) for DIR input "Terminal 8".See also figure
pag.40
