7
MICROSPEED
REV 04/05

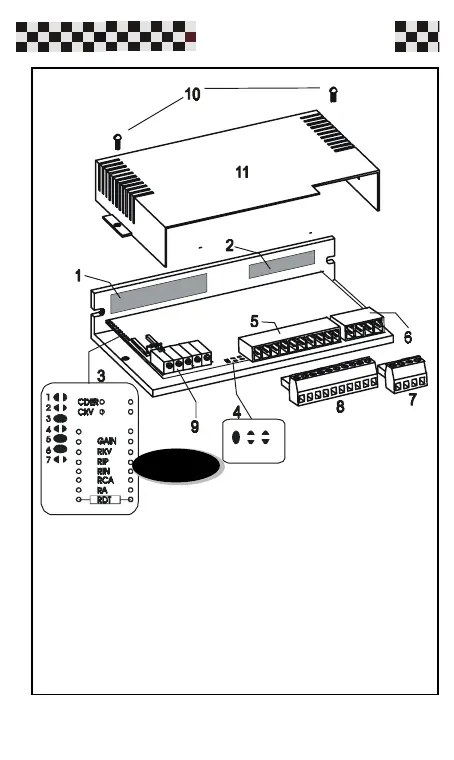

1 Product ID Label
2 Serial Number
3 and 4 Calibration Area
5 and 8 Phoenix Signal Terminals "5.08".
6 and 7 Phoenix Power Terminals "5.08".
9 Calibration Potentiometers.
10 Fixing Screws
11 Product Cover
RAMP
SE
SD
SC
Adjustment
