Axpert KING 3KVA - Cables Connection

SERVICE MANUAL
3KVA/5KVA-230V
27
V201703A

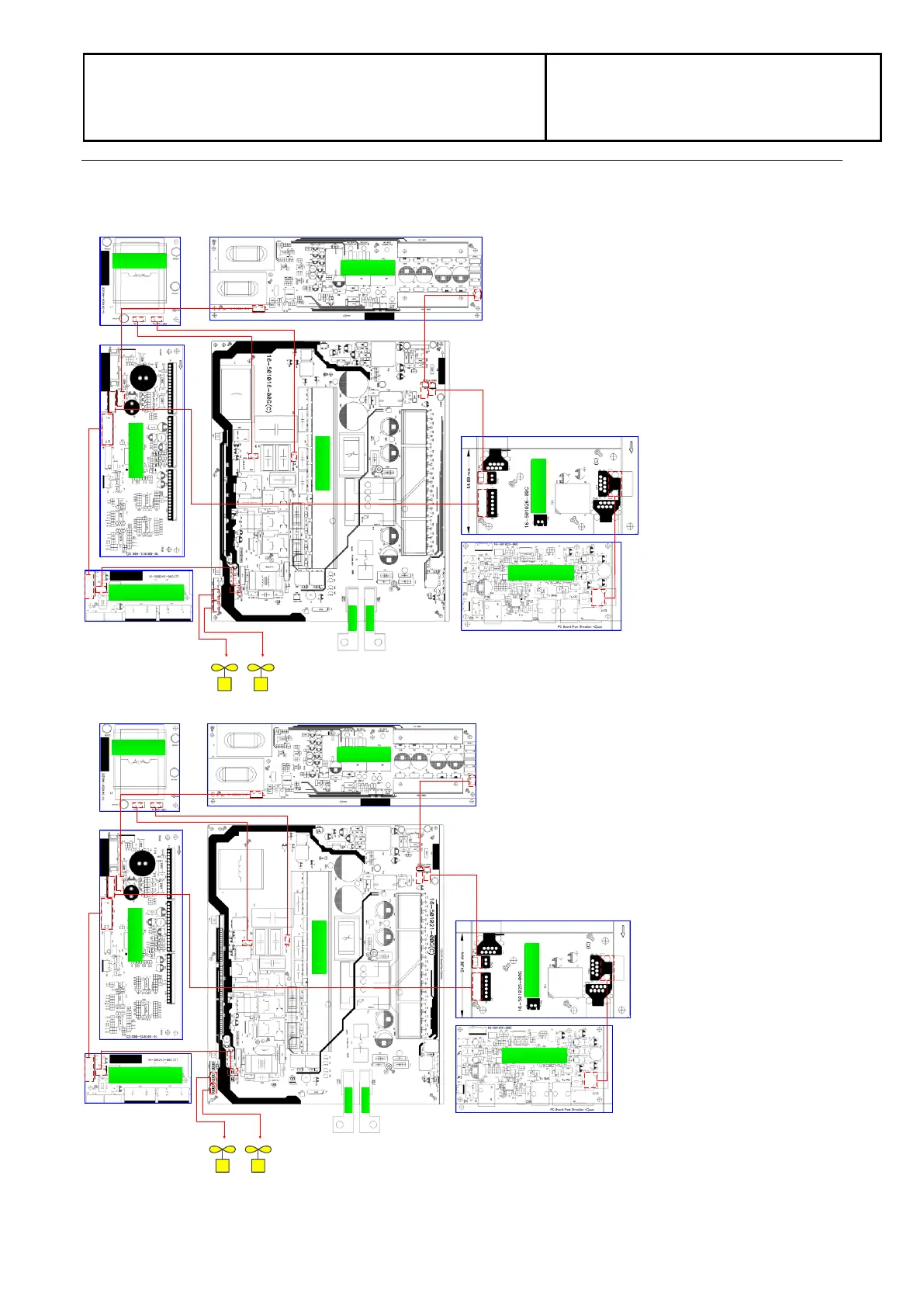

5. Cables connection
AXPERT KING 5KW With MPPT Model
FAN1FAN2
CN1
PAR communication board
16-500243-XXG
CN5
CN12
CN6
CN4
CN1
CN3
CN1
CNTL board
16-501015-XXG
Main board
16-501016-XXG
BAT+
BAT-
CN13
CN2
COMM board
16-501026-XXG
IND board
16-501058-XXG
REMOTE&COMM board
16-501025-XXG
MPPT board
16-500689-XXG
CN4
CN2
P1 P2
P6
P5
CN1 CN2
CN8
CN4
AXPERT KING 3KW With MPPT Model
FAN1FAN2
CN1
PAR communication board
16-500243-XXG
CN5
CN12
CN6
CN4
CN1
CN3
CN1
CNTL board
16-501015-XXG
Main board
16-501021-XXG
BAT+
BAT-
CN13
CN2
COMM board
16-501026-XXG
IND board
16-501058-XXG
REMOTE&COMM board
16-501025-XXG
MPPT board
16-500689-XXG
CN4
CN2
P1 P2
P6
P5
CN1 CN2
CN8
CN4
