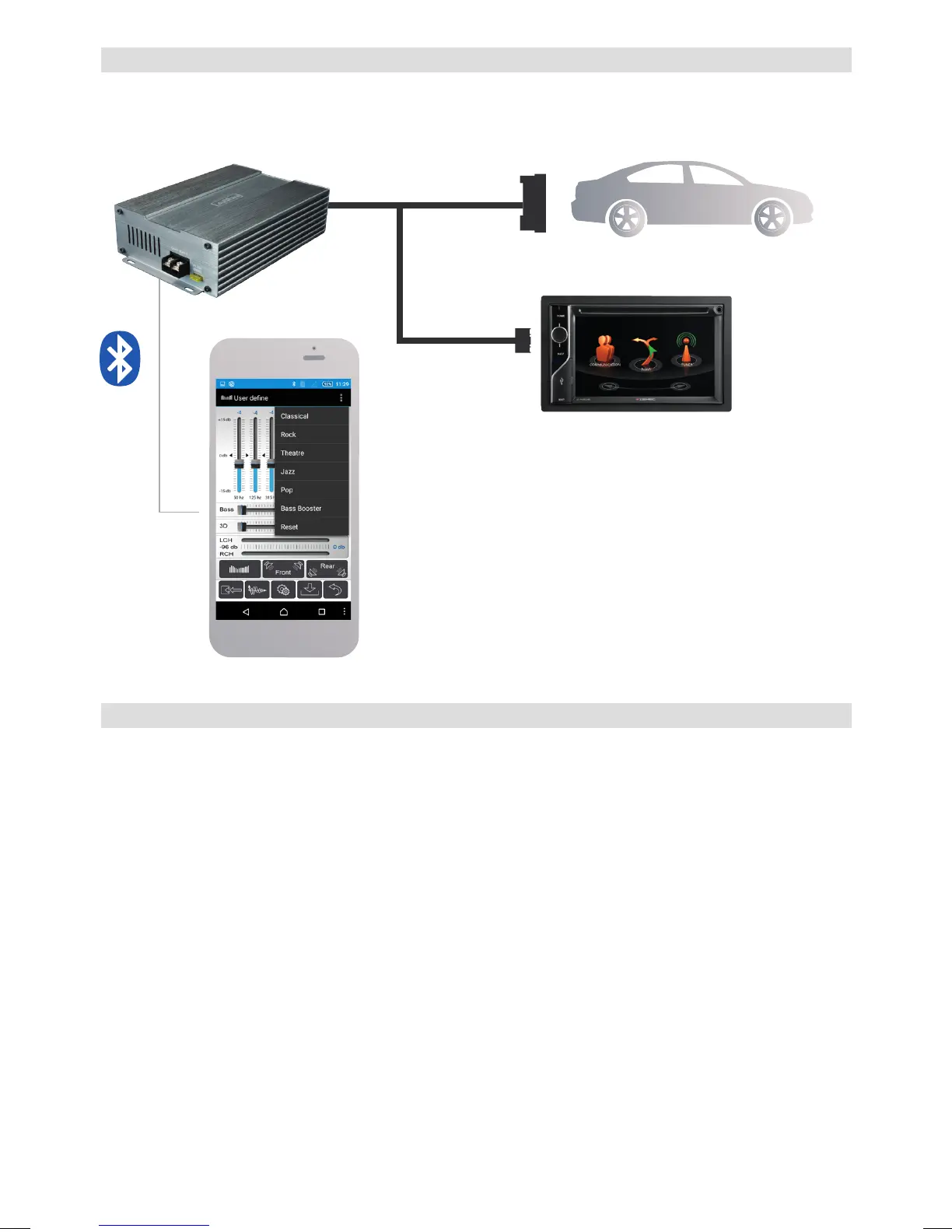

INSTALLATION DIAGRAM
MOUNTING INSTRUCTIONS
1. Before you start with the installation, make sure you know the security code of your
headunit (if applicable).
2. Remove the headunit from the dashboard and disconnect the main wire.
3. Find a place for the A480DSP and connect the provided (or optionally available
car-specic) wire to the amp.
4. For more power output please follow these steps: Run a 10mm
2
power wire from
the (+) pole of the battery to the (BATT) terminal of the amplier. Use a fuse with the
related value of the cross section of the power wire. The distance between the B+
pole and the fuse holder must be 30 cm or less. Run the minus cable with the same
cross section from the (GND) terminal of the amp to the vehicle chassis ground.
Make sure that the contact surface is clean in order to get best conductance.
5. Make sure the switch “DSP” is set to “ON”.
6. Connect the wire to the headunit.
7. Install the headunit back in the dashboard.
