Chapter 2. MOUNTING
zOutdoor use
Provide a roof, etc., to protect against rain.
Handling Precautions
•
The surface of the case may change color due to sunshine or other
causes. However, this will not affect the functioning of the product.

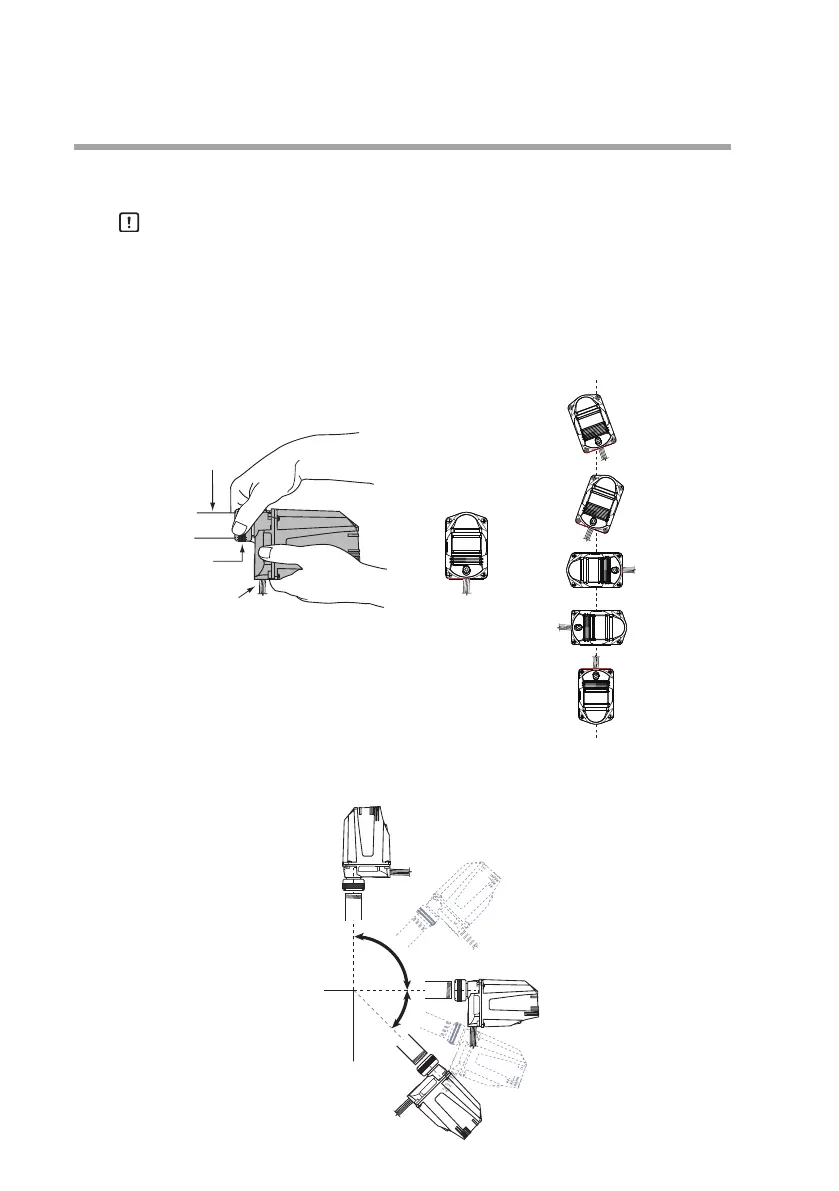

 Mounting orientation
Mount this device with the opening for the electrical wiring conduit
facing downward, aligned in a vertical plane.
Mounting pipe
Mounting nut
Conduit tube connection port
Front side
Vertical plane mounting
Do not tilt
Incorrect
Correct
Do not mount
horizontally
Do not
mount upside-down
The allowable range of the mounting posture is that the upper limit is
90° (conduit tube port becomes horizontal) and the lower limit is 45°.
Vertical
plane
Upper limit 90°
Lower limit 45°
Horizontal
plane
Side
90°
45°
