Azbil FloWing VFR User Manual

Valve Body Azbil Corporation
2-2 Model VFR - FloWing Eccentric Rotary type Control Valves
Sheet ring
Sheet retainer
Valve body
Blind plug *
Packing ange
Valve stem
Stud bolt
Nut
Packing follower
Packing
Packing ring
Spring **
Main bushing
Key
Vale plug
Plain bearing

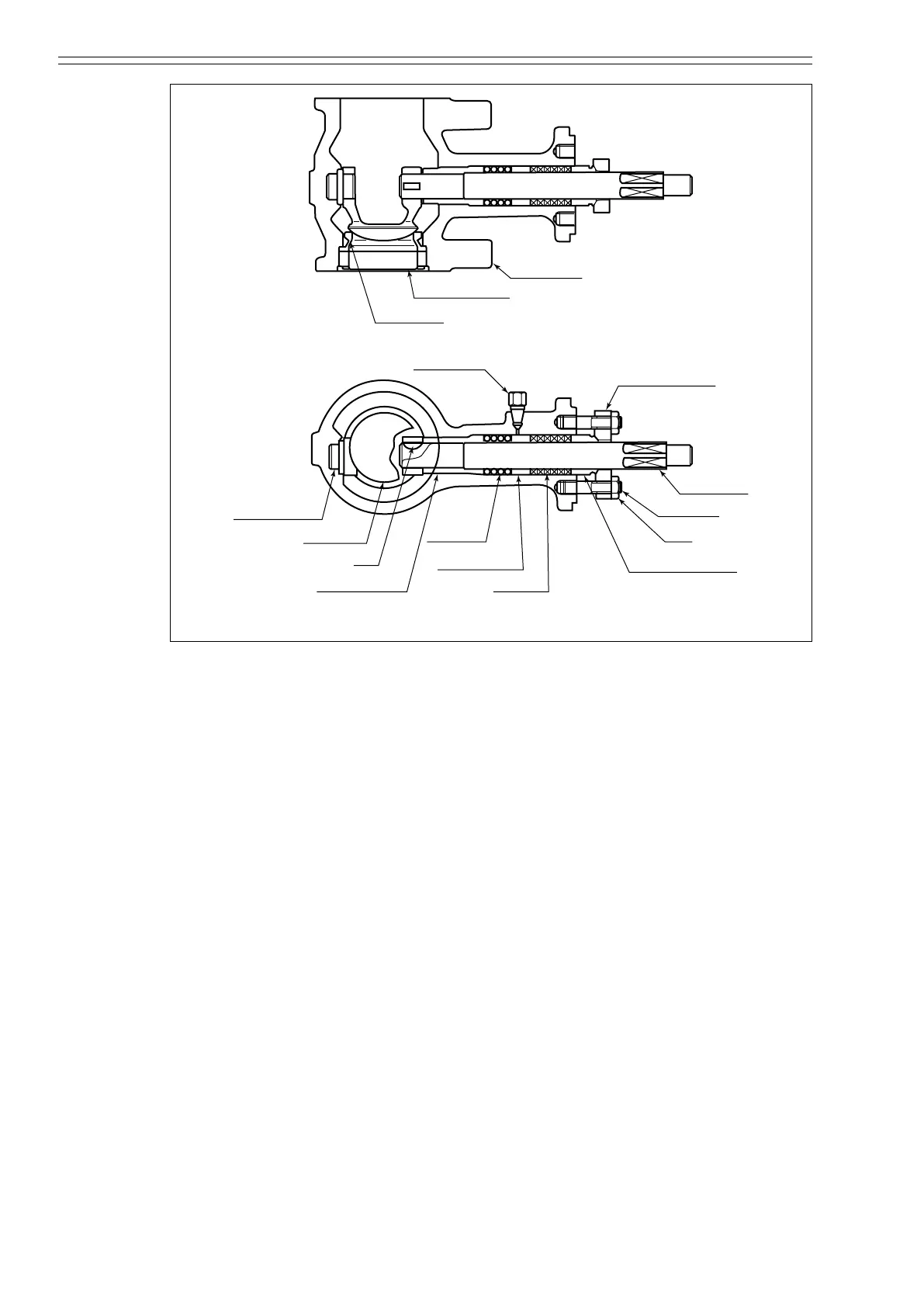

Figure 2-2 Cross sections
*: For a valve without lubricator
**: For a valve with lubricator, this space must be lled with packing instead of the spring.
