・Concerning setting and adjustment of the timer;
In case of the lubrication unit without electrical control circuit, refer to the instructions
attached to the interval timer that was separately prepared by the user.
・Timer for interval activation of pump is not equipped to the standard MC9 lubrication
unit.
7-5. Method of Setting of Oil-Shot Frequency
・Timer frequency rate must be set at same rate with the oil drips per minute. However in case the
first operations after installation, or after maintenance, supply more oil than required for usual
lubrication. And the machine should be started from slower speed than the normal operation
speed.
・Setting of the interval operation timer should be below 20 times per minute in case of normal
lubrication operation.

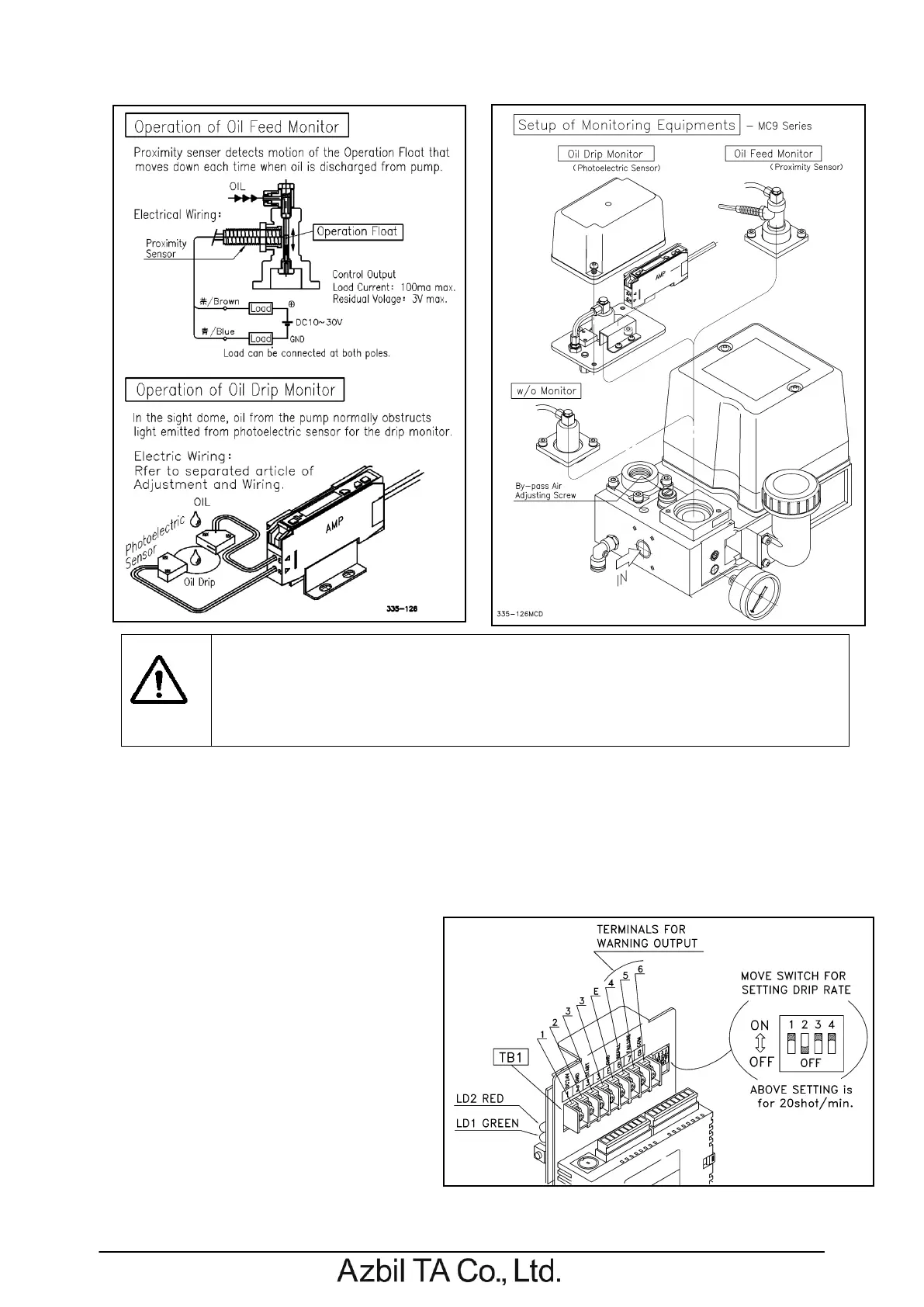

In case of lubrication units with electrical
control circuit
・Oil shots rate (shots/min) can be set by
the shot interval from
combination of ON position of DIP
Switch on the control circuit board.
・Use following DIP Switch combination
table for setting of oil shot quantities,
that can be set from oil shot interval
based on DIP Switch combination.
