Polarity of output bit function
The polarity after the output bit function (functions 1 to 4) can be set.

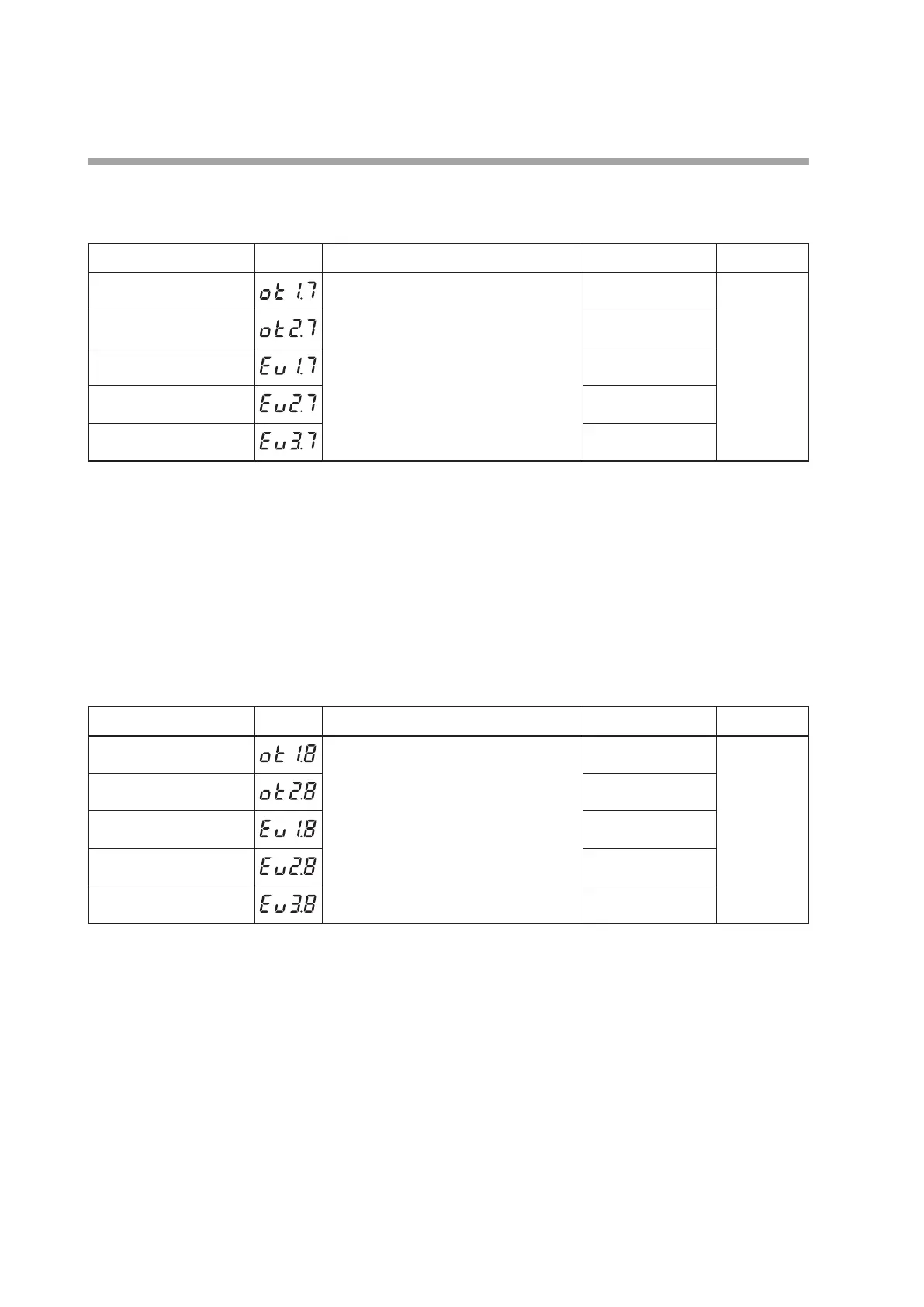

Item (Bank) Display Contents Initial value User level
Control output 1 Polarity
(DO Assignment bank)
0: Direct
1: Reverse
0 High function
Control output 2 Polarity
(DO Assignment bank)
0
Event output 1 Polarity
(DO Assignment bank)
0
Event output 2 Polarity
(DO Assignment bank)
0
Event output 3 Polarity
(DO Assignment bank)
0
• When the object control output is the relay output or voltage pulse output, and
the operation type of the DO Assignment is set for output bit functions 1 to 4, the
display and setting can be made.
• When the object event output is provided and the operation type of the DO
Assignment is set for output bit functions 1 to 4, the display and setting can be
made.

Latch
The latch of the output ON status or output OFF status can be set.
Item (Bank) Display Contents Initial value User level
Control output 1 Latch
(DO Assignment bank)
0: None
1: Latched (Latched when turned ON.)
2: Latched (Latched when turned OFF
except for initialization at power ON.)
0 High function
Control output 2 Latch
(DO Assignment bank)
0
Event output 1 Latch
(DO Assignment bank)
0
Event output 2 Latch
(DO Assignment bank)
0
Event output 3 Latch
(DO Assignment bank)
0
• When the object control output is the relay output or voltage pulse output, and
the operation type of the DO Assignment is set for output bit functions 1 to 4, the
display and setting can be made.
• When the object event output is provided and the operation type of the DO
Assignment is set for output bit functions 1 to 4, the display and setting can be
made.
• To release the latch status, it is necessary to turn OFF the power, and turn it ON
again, to release all DO latches (key operation or communication), or to change
the latch setting of the DO Assignment to “0” (none).
