HW831 User Guide Rev 1.0 22
To edit an existing record, select the record and click on the “Edit” button.
To delete a record from the list, select the record and click on the “Delete” button.

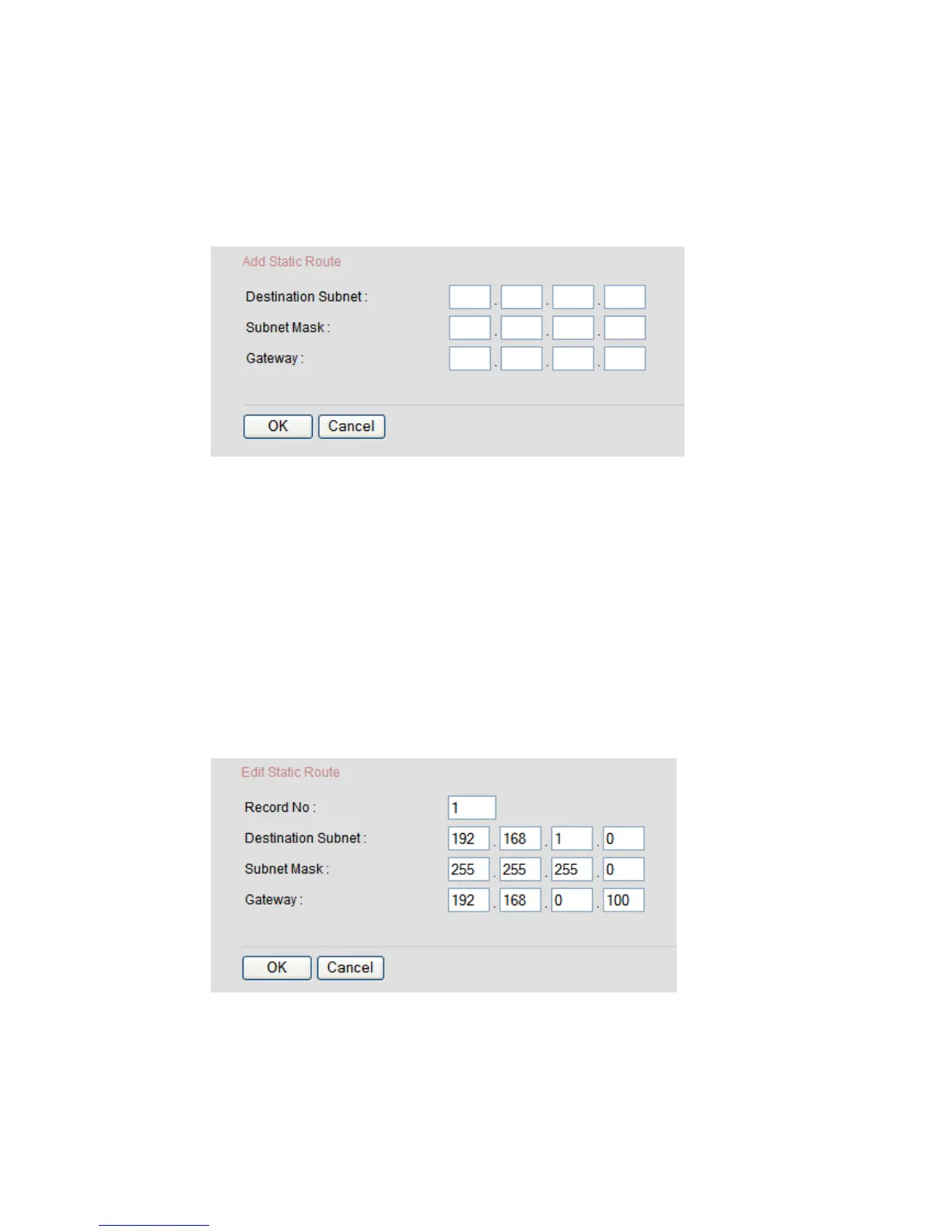

Add Static Route
Destination Subnet: Enter the IP address of the remote network or host for which
you want to assign the static route.
Subnet Mask: Enter the subnet mask of the remote network for which you want to
assign the static route. To route to a single host, enter the subnet mask as
“255.255.255.255”.
Gateway: Enter the IP address of the gateway or routing device to which the data
packets destined for the specified remote network or host will be forwarded.
Click on the “OK” button to save the record.
Edit Static Route
Change the fields as required and click on the “OK” button to save the record.

Aztech HW831 Specifications

General

Brand	Aztech
Model	HW831
Category	Modem
Language	English
