StructureScan
StructureScan HD uses high frequencies to provide a high
resolution, picture-like image of the seabed.

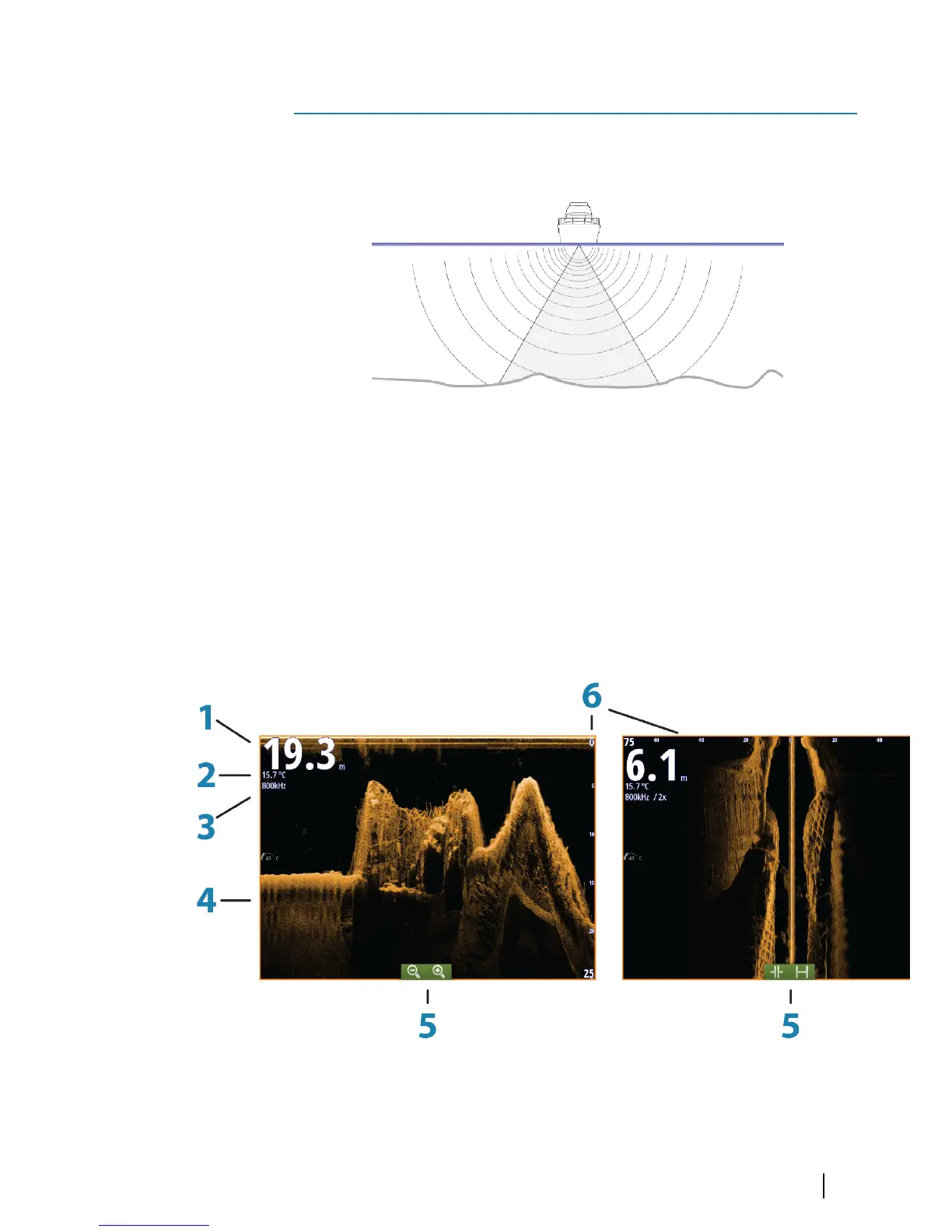

The StructureScan image
The view
The StructureScan panel can be set up as a DownScan image, or
showing left/right side scanning.
The DownScan image can also be added as an overlay to the
traditional Echosounder image.
1 Depth
10
StructureScan| Vulcan Series Getting Started
31
