Baccara G75-DFC User Manual

8
AUTOMATION & CONTROL
G75-DFC
Differential Filtration Controller
G75-DFC 22/04/21 Page 8 of 15

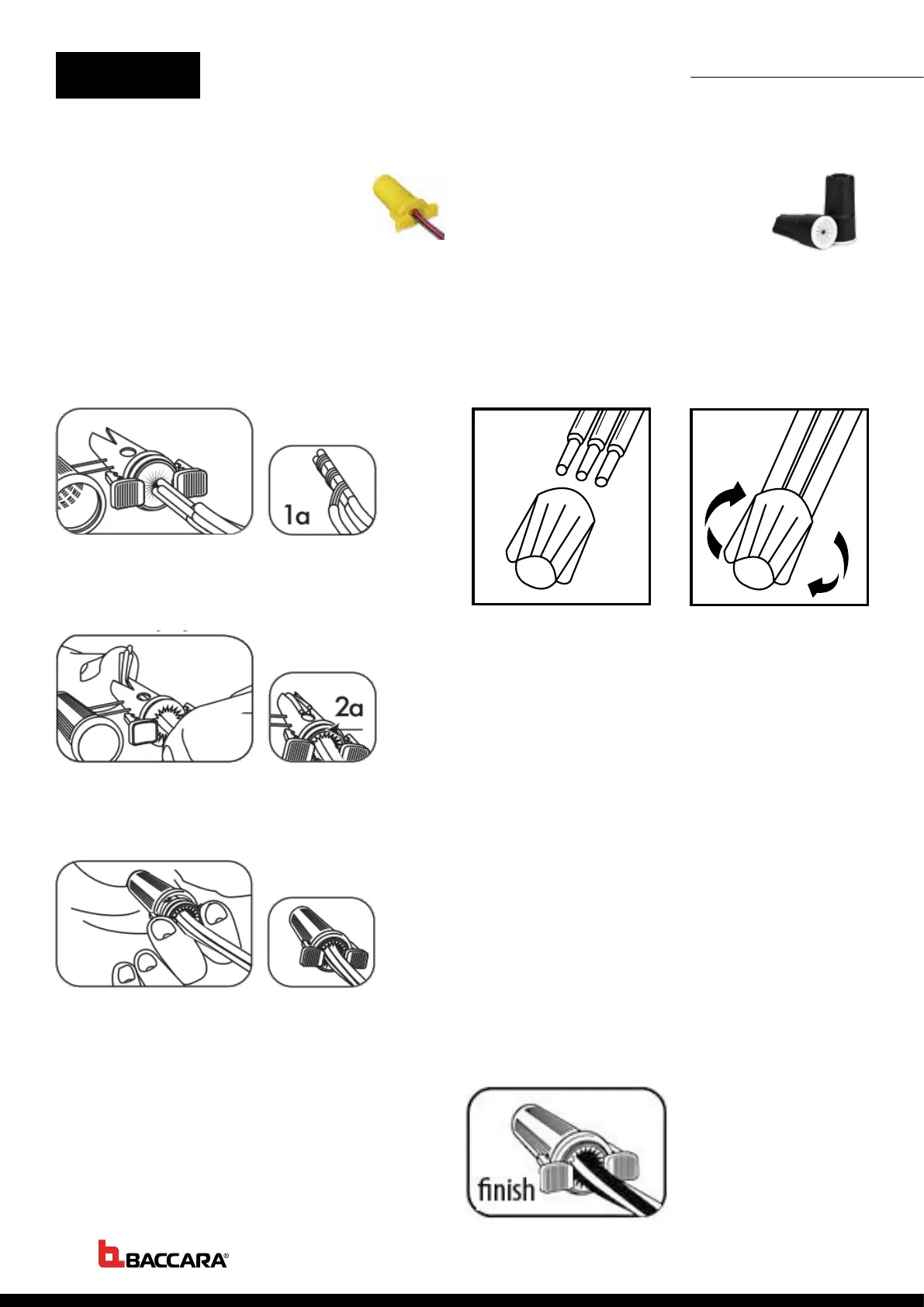

LV9000 - Wire Connectors
(Provided by Blazing Waterproof Small Wire Connector | LV9000)
LV9000 - Wire Connectors DryConn #22 to #12 AWG -
Wire Connectors
(Provided by Blazing Waterproof
Small Wire Connector | LV9000)
IMPORTANT: Turn off power before installing or removing
connector. Product to be used in accordance with local
and national codes.
1. Strip wires ¾” and group bare wires ends together. Do
not pre-twist solid wire.
You must pre-twist stranded wire. If using both wire
types, you must wrap stranded wire around untwisted
solid wires (1a).
2. Insert wires through flexible sealing fingers and bend
bare wire ends together into either “V-Channel.” With
proper 3/4” strip length, wire tips just reach to edge of
round hole below “V” (2a).
3. Separate connector, removing plastic “link” or “leg” from
inner sleeve. Push inner sleeve into Pre-filled outer
sleeve until double-locked. Pre-filled connection. Do not
reuse.
DryConn #22 to #12 AWG- Wire Connectors (Provide by
DryConn).
1. Strip #22 - #18 wires 1/2” (12.7mm)
And #16 - 12 wires 3/8” (9.5mm).
2. Align any frayed strands or conductors.
3. Pre-twisting unnecessary. Place stripped wires together
with ends of insulation even.
4. Twist connector onto wires pushing firmly until hand-
tight. Do not over torque.
5. Wipe sealant in and around conductors and connector
opening while tightening. Do not reuse.
(Provided by DryConn)
1. Strip wires 13 mm.
2. Align frayed strands or conductors.
3. Do not pre-twist. Place stripped wires with ends even,
lead stranded wires slightly.
4. Twist connector onto wires pushing firmly until hand-
tight. DO NOT over torque.
5. Swipe excess sealant in and around conductors.
6. DO NOT REUSE.
Operating Modes
• Auto
• Off
• FC counter rest
• Manual FC
G75-DFC 22/04/21 Page 8 of 15
LV9000 - Wire Connectors
(Provided by Blazing Waterproof Small Wire Connector | LV9000)
G75-DFC 22/04/21 Page 9 of 15
DryConn #22 to #12 AWG - Wire Connectors
(Provided by DryConn)
G75-DFC 22/04/21 Page 8 of 15
LV9000 - Wire Connectors
(Provided by Blazing Waterproof Small Wire Connector | LV9000)
G75-DFC 22/04/21 Page 8 of 15
LV9000 - Wire Connectors
(Provided by Blazing Waterproof Small Wire Connector | LV9000)
UD = Upper Digits
LD = Lower Digits
