Baccara landscape | solenoids
BATTERY INSTALLATION
Before installing the battery
1. Read the safety instructions chapter of this document
2. Make sure that the solenoids and the DP wires are isolated from each other - prevent short circuits.

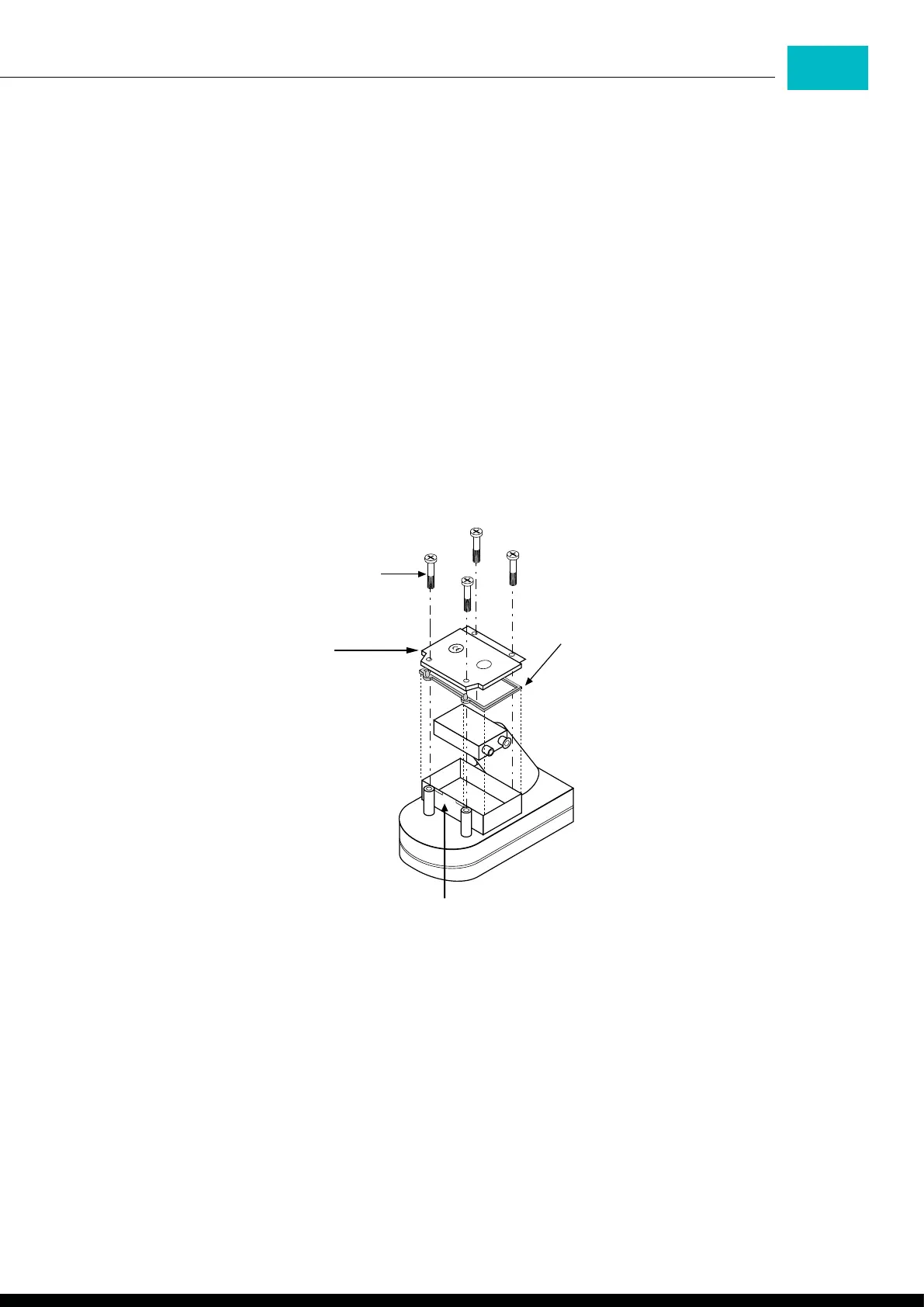

3. Using a Phillips screwdriver, remove the four battery cover screws (see the following drawing).
4. Remove the cover and the seal.
5. Install the 9V alkaline battery.
6. Reinstall the seal into its designated slot, put back the cover, and secure the four screws.
The LCD display shows:
• The actual differential pressure - DIF
• The pressure set point - SET
• The flushing cycles counter - FC
• While in flushing, a Faucet icon appeases on screen
• When the battery needs replacing, a Low Battery icon appears on screen
Replacing the battery:
1. Replace the battery at the beginning of each irrigation season and whenever the Low Battery Symbol appears on the
controller’s screen.
2. Always use the best quality battery to ensure at least one year’s autonomous operation.
3. When replacing the seal, push its tabs into the slots.
screws
Battery cover
seal
When replacing the seal, push seal tabs
into slots.
