Bacharach 450 - Calibration Fixtures

Calibration ECA 450
50 Instruction 0024-9400
3.2 Calibration Fixtures
A gas and pressure fixture will be required to perform the various calibration
procedures described in the sections that follow.
Parts Required:
• Calibration Kit (refer to Section 6.2)
• Calibration Gas (refer to Section 6.2)
• Bellows
• Micro manometer
Procedure:
Assemble the appropriate fixture as required by the calibration procedure
being performed. See Figure 3-1.

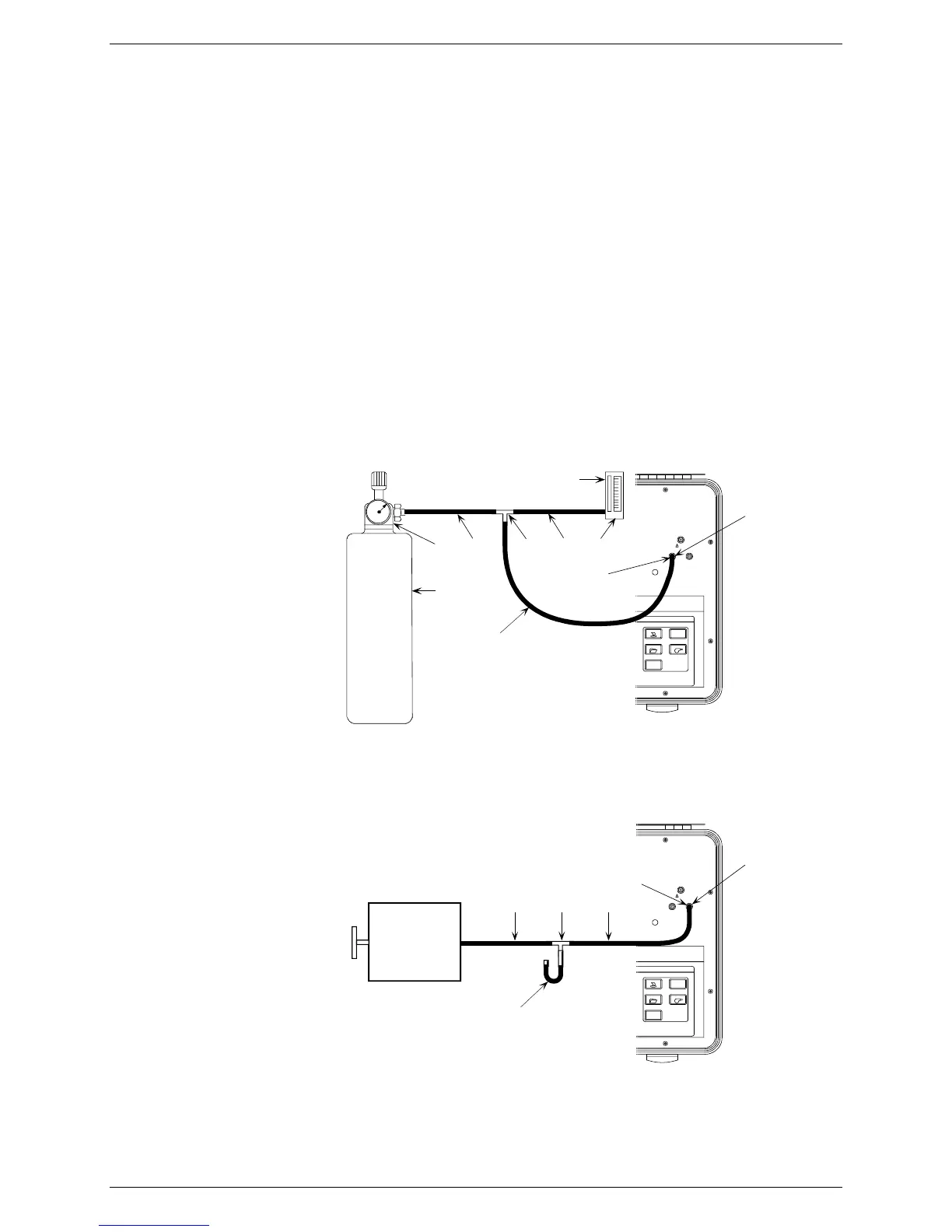

Figure 3-1. Calibration Fixtures
OPT T-STACK T-AIR
PRESSUREGAS
P REF
ECA 450
MENU
PRINT
I/O
RUN
SAVE
1
2 3 4 5
Leave Top
Port Open
3
3
GAS
FIXTURE
GAS
INLET
PORT
RS 232
POWER
OPT T-STACK T-AIR
PRESSUREGAS
P REF
ECA 450
MENU
PRINT
I/O
RUN
SAVE
PRESSURE
INLET
PORT
Parts Shown:
1. Gas Cylinder
2. Regulator*
3. Tubing*
4. Tee*
5. Flowmeter*
6. Fitting, Gas*
7. Fitting, Pressure*
* Contained in Calibration Kit
3
4
7
3
Micro manometer
Bellows
6
PRESSURE
FIXTURE
