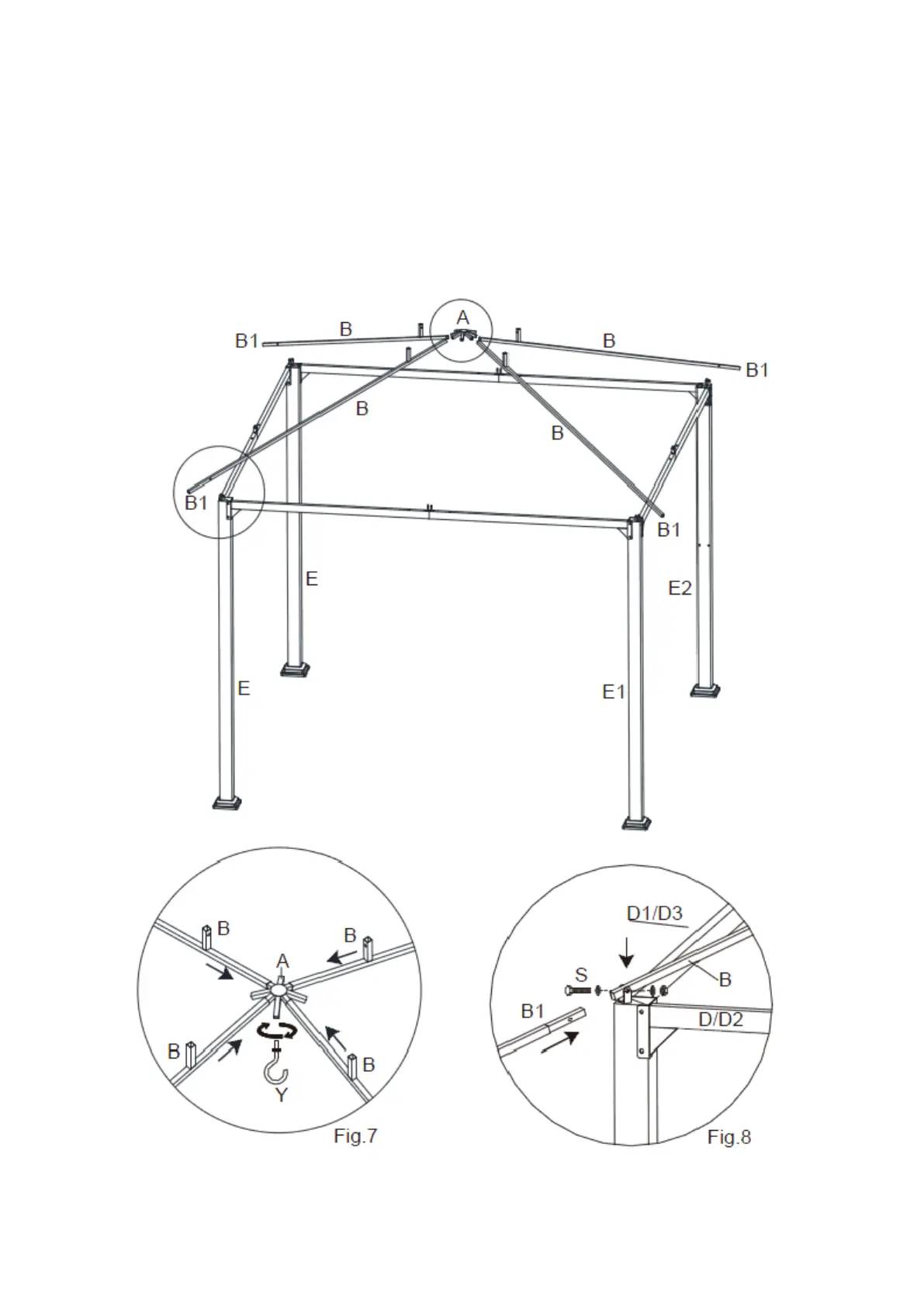

Step 5A: Screw the Accessory Hook (Y) into the Main Roof Connector (A). Insert the Main Corner Roof
Support (B) into Main Roof Connector (A) until the "push button" lock clicks. Repeat for the three
remaining Main Roof Corner Supports (B). See Figure 7.
Step 5B: This step requires two people. One person (with the use of a ladder) holds the Main Roof Connector
(A) and the corner supports (above the cross beams) while the second person inserts one Main
Roof Corner Support Extension (B1) into a Main Roof Corner Support (B) and attaches it to the U-
Shaped Connector (F) on top of the Corner Posts using Bolt, Nut, and Washers (S). Repeat for three
remaining extensions (B1). See Figure 8. TIGHTEN BOLTS.
