Assembly Instructions
10’ x 10’ Gazebo with Awning and Bar
Note: For video instructions please visit:
https://insideout.store/video-assembly-instructions/
Important:
⚫ Read all the instructions before assembly. Failure to do so may result in faulty assembly and
potential injury.
⚫ Before assembling the product, remove all protective materials, hardware kit(s), and identify all
parts packed in the carton are present. (Note: If any part is missing or damaged, do not attempt to
assemble). Contact InSide Out Customer Support. See page 19.
⚫ Assemble on a stable level surface to avoid damage to gazebo and possible injury.
⚫ Two people are required to assemble this product.
⚫ Gazebo dimensions are measured from end of corner post base covers.
WARNING: DO NOT TIGHTEN BOLTS UNTIL NOTED AFTER EACH STEP!

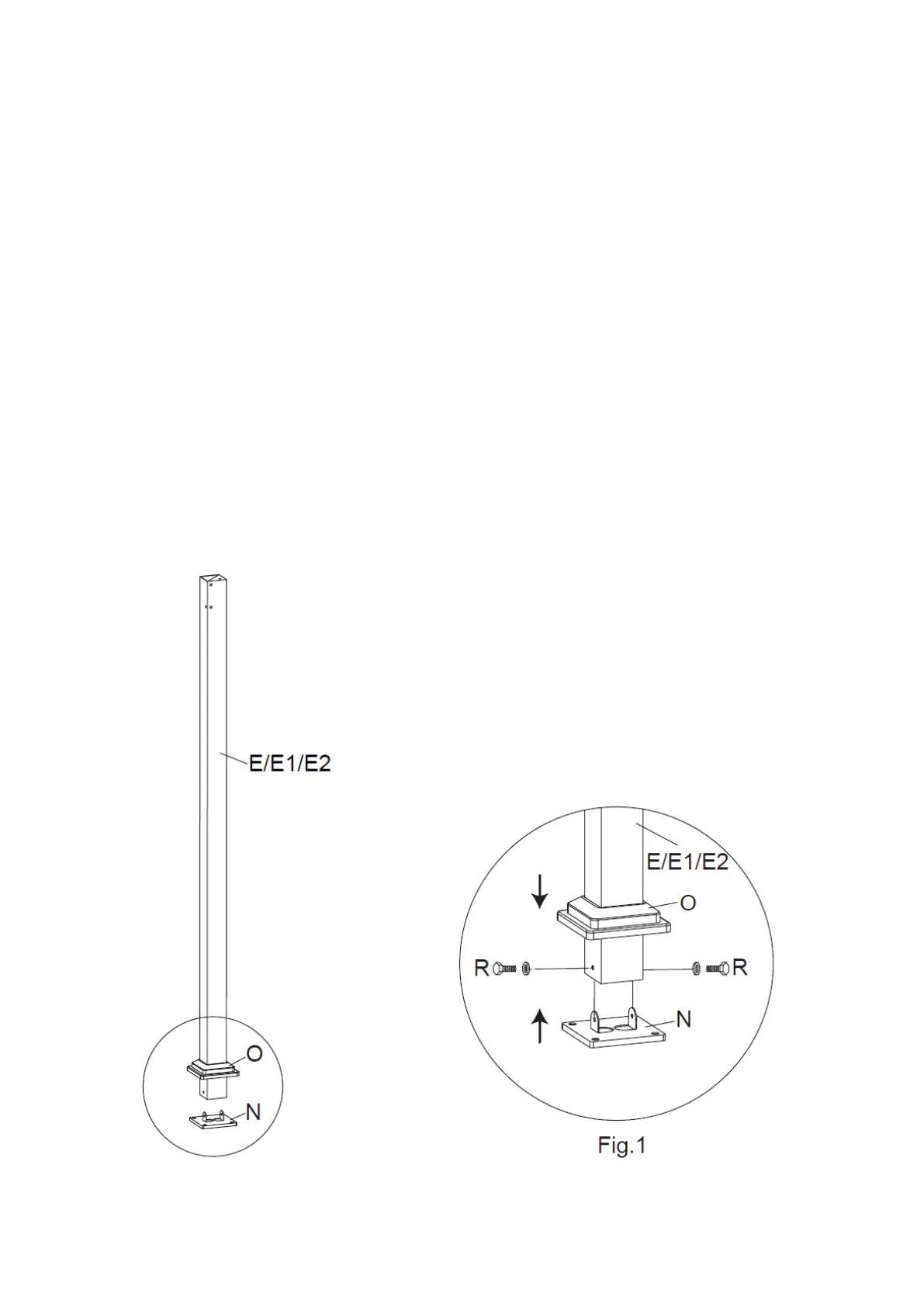

Step 1: Insert Corner Posts (E/E1/E2) into Base Cover (O) and raise them up. Attach Base Plate (N) to
Corner Posts (E/E1/E2) using Bolt and Washer (R). See Figure 1. Tighten Bolts.
