Backyard Creations CON-1010-21 - Step 13 A: Connect Awning to Corner Posts; Step 13 B: Connect Awning Hydrolic Rods; Step 13 C: Attach Awning Locks; Step 13 D: Secure Awning with Locks

17 of 19

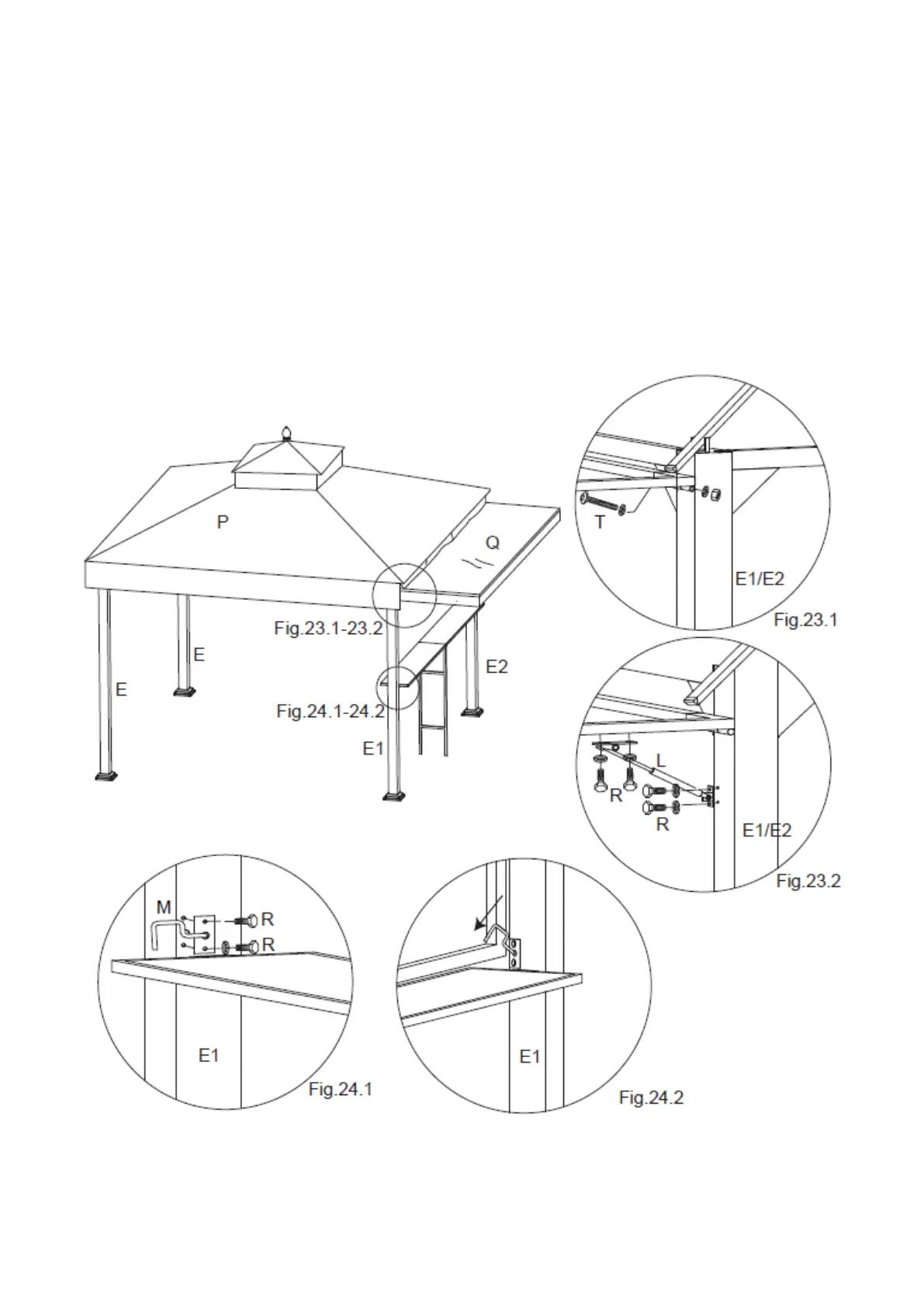

Step 13: Using two people attach assembled awning to gazebo.
Step 13A: Connect the back of awning to Corner Posts (E1 and E2) using Bolt, Nut and Washer (T). See
Figure 23.1.
Step 13B: Connect one end of the Awning Hydrolic Rod (L) to Corner Post (E1) and the opposite end to
awning frame using Bolts and Washers (R). Repeat for second Hydrolic Rod (L) on Corner
Post (E2). See Figure 23.2.
Step 13C: Attach the Awning Lock (M) to Corner Posts (E1) using Bolts and Washers (R). See Figure
24.1. TIGHTEN BOLTS.
Step 13D: When awning is in the closed position use the Awning Lock (M) to secure awning to gazebo
frame. See Figure 24.2.
